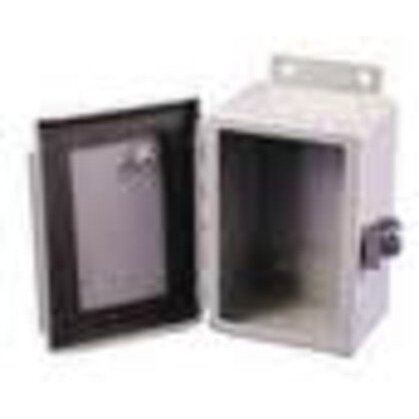

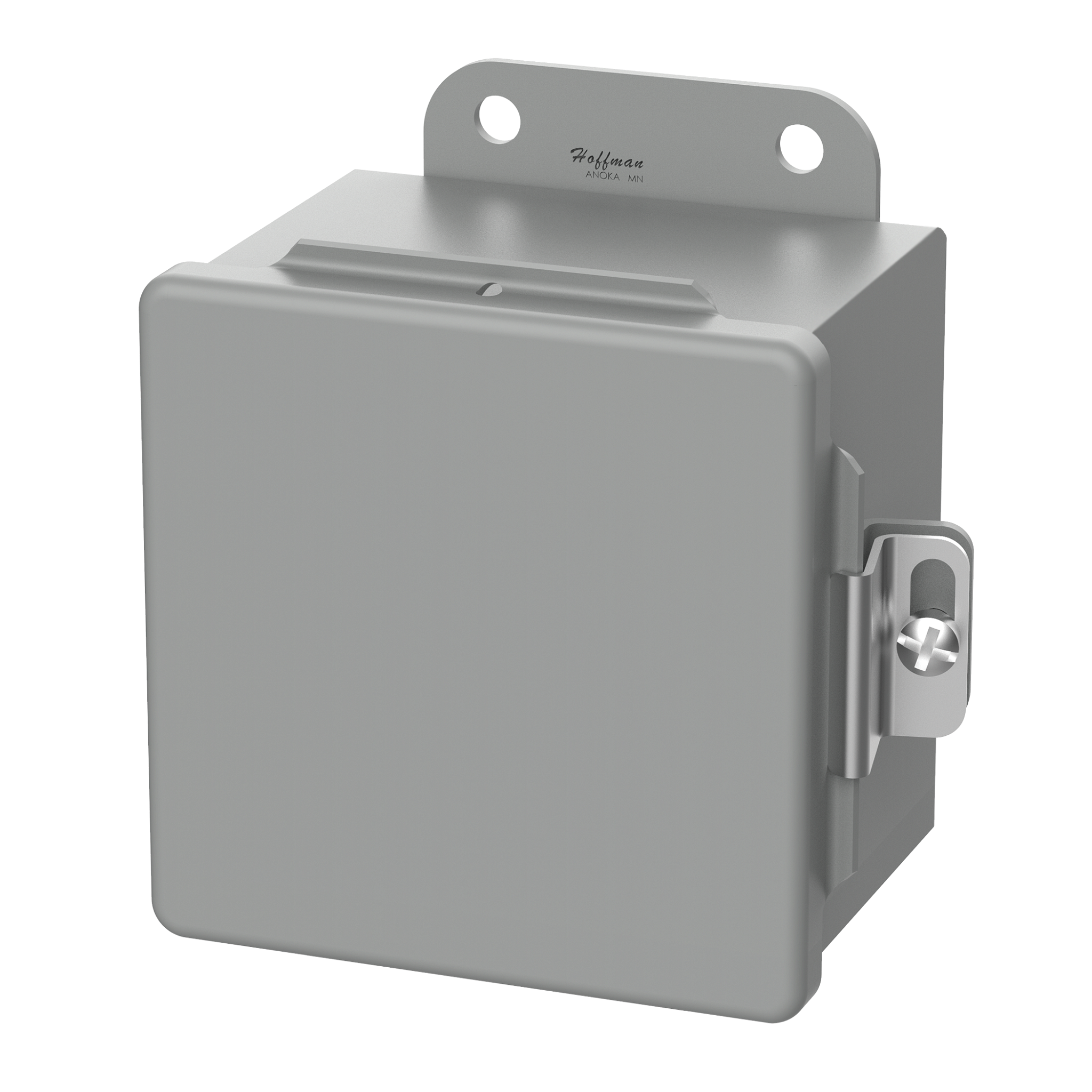

Hoffman A6044CH Junction Box 6 x 4 x 4 Inches

Product Description

The Hoffman A6044CH junction box features screw-down clamps for secure closure and can be used in a wide variety of applications. The seams are continuously welded and ground smooth. This Type 12 hinged cover box is made of steel with a gray powder coated finish.

• Seams continuously welded and ground smooth
• Continuous hinge
• Screw-down door clamps

Product Highlights

The Hoffman A6044CH is a steel junction box with a hinged cover, ideal for electrical enclosures.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A6044CH

Technical Specifications

• Article Number: 55380
• Height (H): 6in
• Width (W): 4in
• Depth (D): 4in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness (T): 16ga
• Mounting (G x H): 6.75 x 2.00in
• Overall Dimensions (L x W): 7.50 x 4.94in
• UPC: 783510553807
• EAN: 8713574252776
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Brand: Hoffman Enclosures
• Style: Compact
• Finish Type: Steel
• Specification Met: nema
• Installation Type: Screw-In
• Mounting: Surface
• IP/NEMA Rating: IP65, NEMA 12
• Cover Type: Continuous Hinged with Clamp
• Gauge: 14 and 16
• Size: 6.00x4.00x4.00 in
• Type: Two Lock, Single Door
• Sub Brand: Hoffman
• Product UPC: 78351055380
• Length: 6.7 Inch
• Thickness: 1.52 mm
• Height: 152 mm
• Width: 102 mm
• Depth: 102 mm
