Hoffman A483620LP Enclosure 48x36x20

Product Description

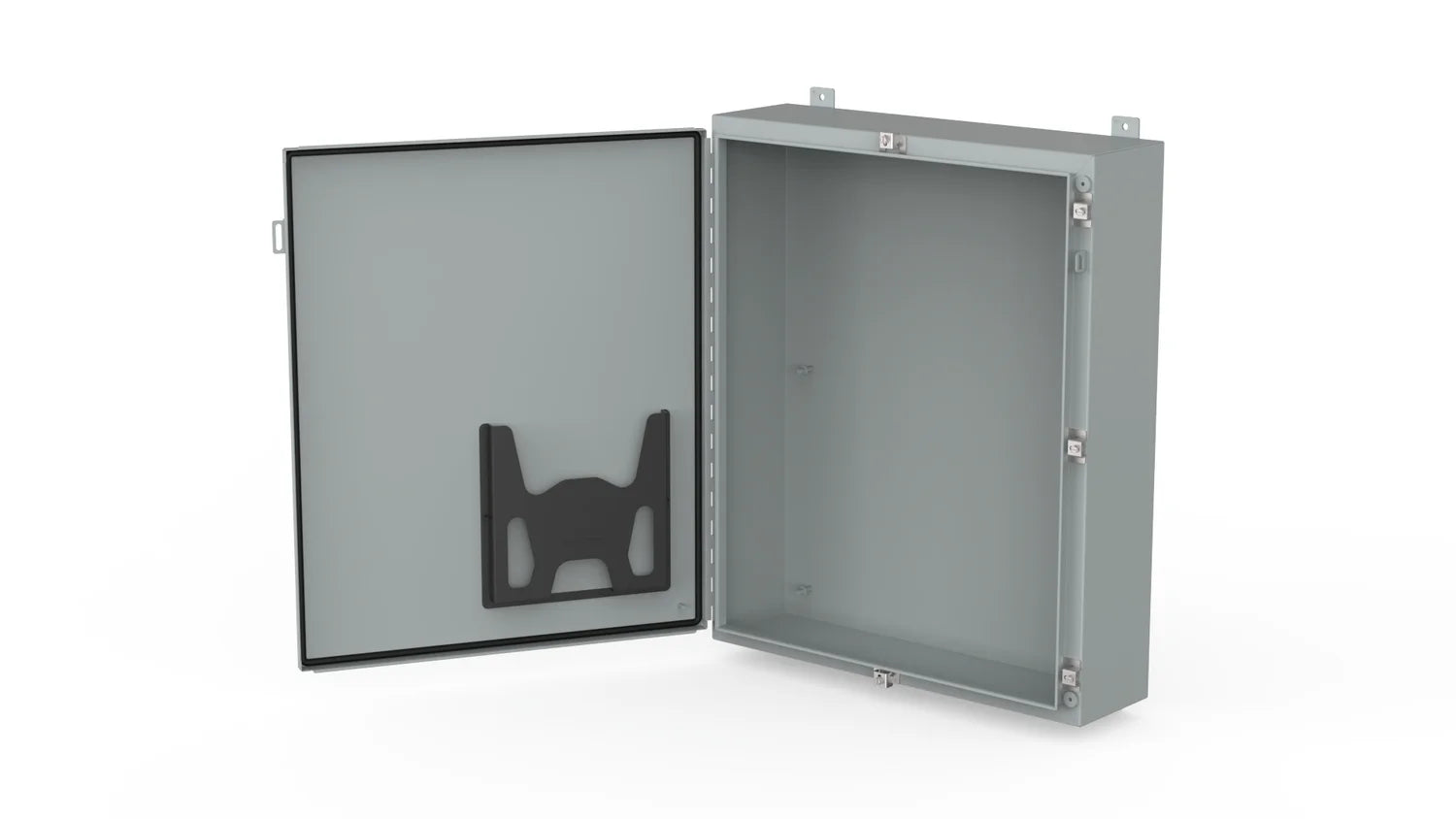

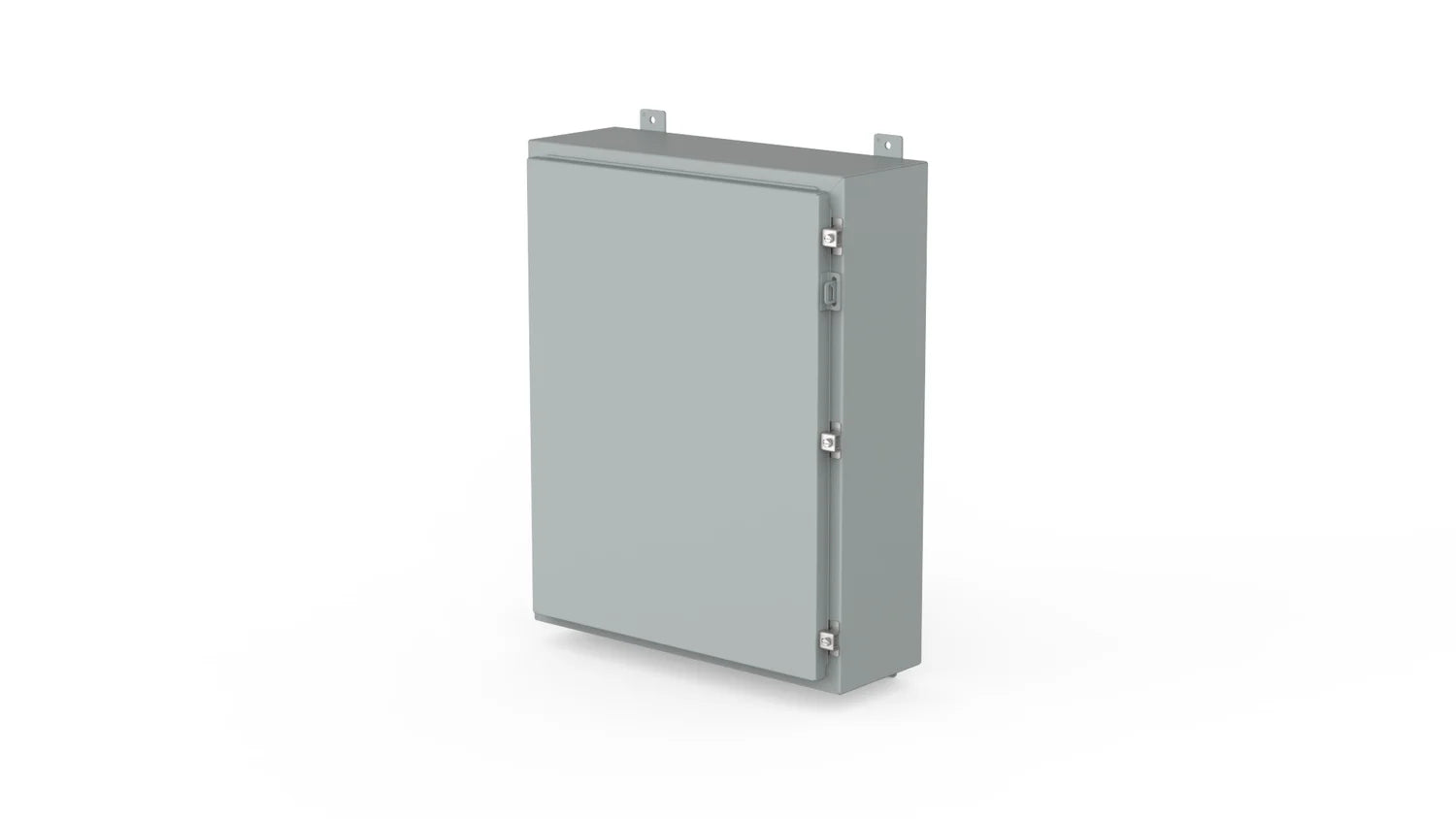

The HOFFMAN A483620LP single-door enclosure is designed for both indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. This enclosure measures 48x36x20 inches.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

Provides access and security with screw-down clamps and padlocking hasp. Suitable for indoor and outdoor applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A483620LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 28690
• Height: 48 in
• Width: 36 in
• Depth: 20 in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14ga
• Clamp Quantity: 6
• Data Pocket: Large
• UPC: 783510286903
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A12
• Dimensions: 22.50 in H X 52.50 in W X 37.30 in L
• Series: A12 Series
• Type: Junction Box
• Unit of Measure: EA
• UPC Code: 78351028690
• ECCN: EAR99
• NEMA Rating: NEMA 12/IP65
• Mounting Type: Wall
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• Brand: Hoffman
• MFG #: A483620LP
• Approval: UL 508A, CUL, CSA C22.2
• Mounting: External Bracket, Wall
• Material Specification: 14 Gauge
• Cover Type: Clamp/Continuous Hinged
• ETIM: EC000261
• Lock: Hasp and Staple/Padlock
• Panel Size: 33 in W x 45 in H
