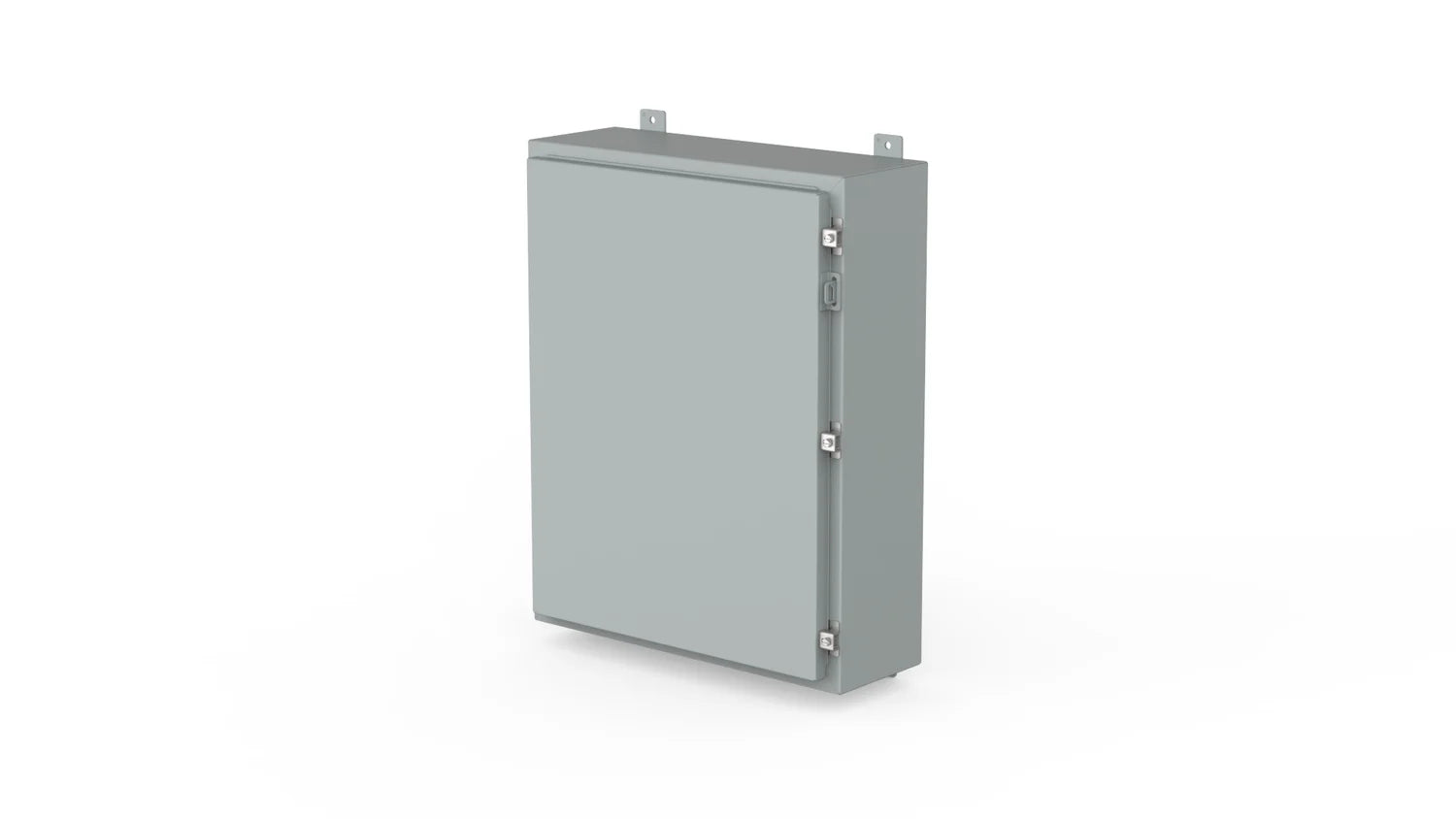

Hoffman A483008LP Enclosure 48x30x8

Product Description

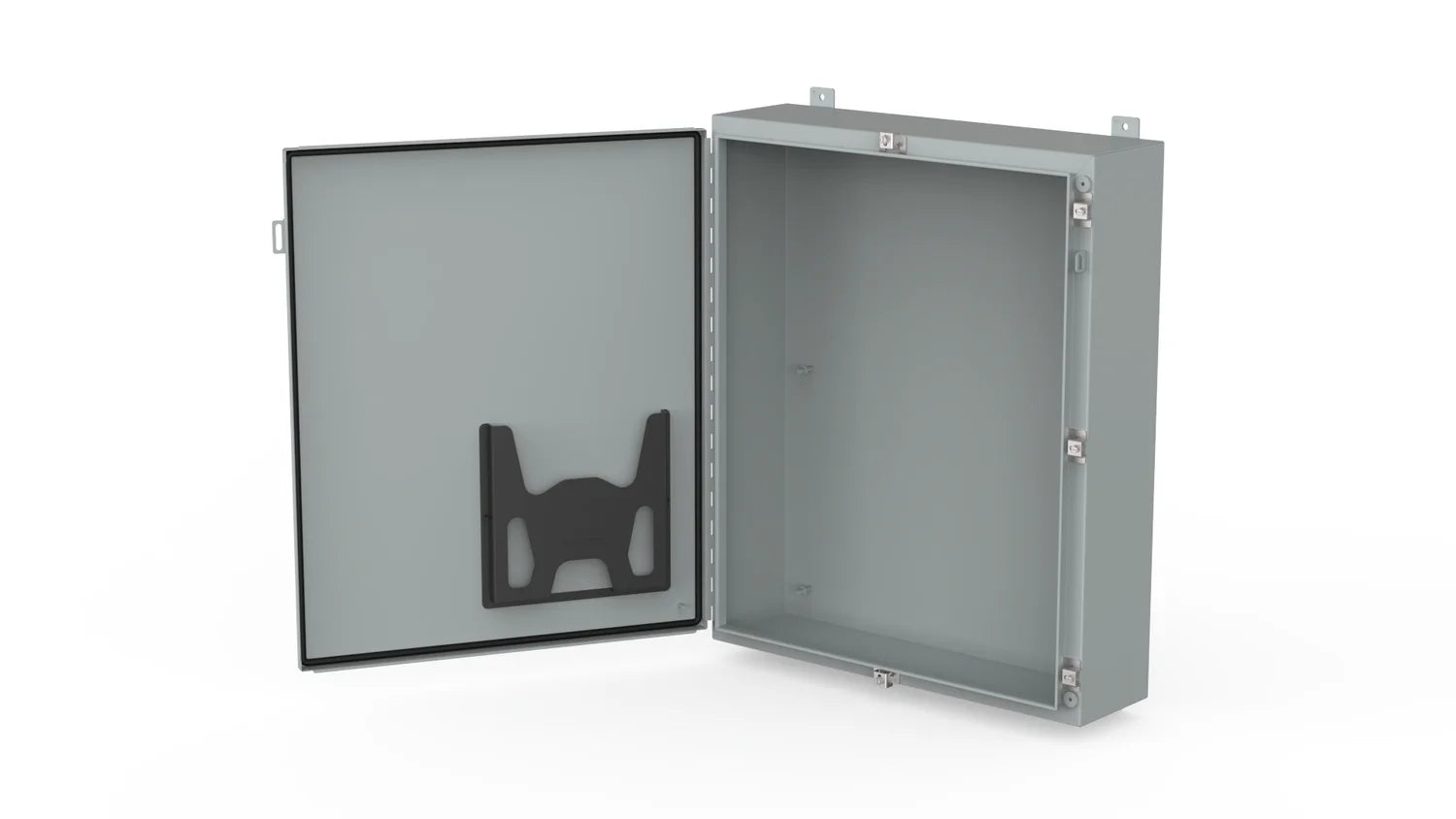

The HOFFMAN A483008LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The door clamp count and position have been redefined to achieve optimal compression of the seamless, foam-in-place gasket. Finished inside and out with polyester powder paint for enhanced corrosion protection.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

Durable mild steel enclosure with powder-coated finish and stainless steel hardware, suitable for various industrial applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A483008LP
• Country of Origin: United States

Technical Specifications

• Article Number: 28320
• Height: 48 Inch
• Width: 30 Inch
• Depth: 8 Inch
• Color: White Inside, ANSI 61 Gray Outside
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14ga
• Clamp Quantity: 6
• Data Pocket: Small
• UPC: 783510283209
• Bulletin Number: A12
• UNSPSC Code: 31260000
• Approximate Depth: 8 in
• Approximate Height: 48 in
• Approximate Width: 30 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A483008LP
• Series: A12 Series
• Type: Junction Box
• Model: A483008LP
• Country of Origin: United States
• Material Specification: 14 Gauge
• Cover Type: Heavy Gauge Continuous Hinge with Removable Pin, Foam Gasketed
• Back Panel: A48P30, A48P30G
• Enclosure: NEMA 12/13, IP65
• Mounting: Wall
• Approval: UL 508A, CUL, CSA C22.2
• Panel Size: 45 Inch x 27 Inch
• Application: Industrial
• Applicable Standard: IEC 60529
