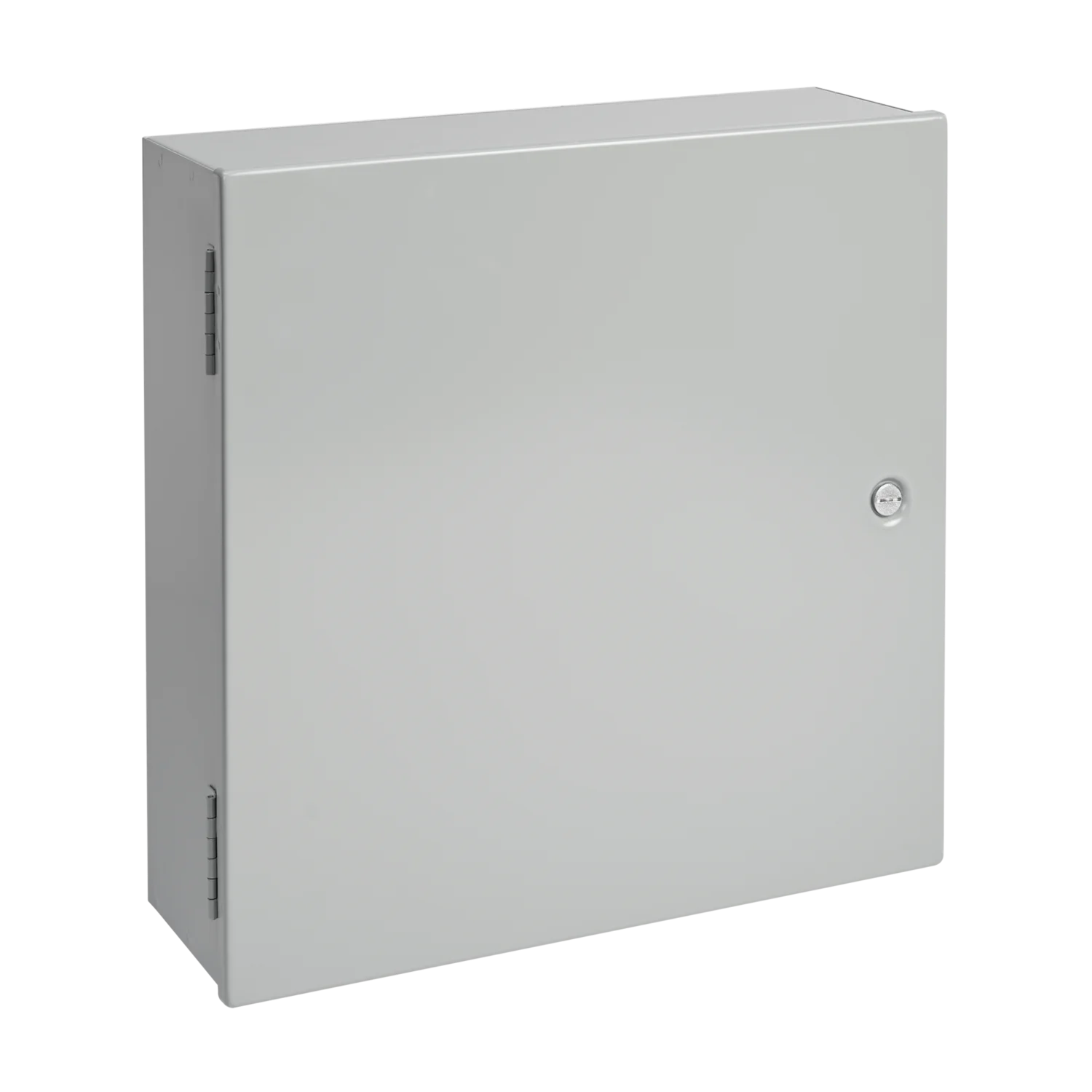

Hoffman A36N30BLP Medium Hinged-Cover Type 1 36.00x30.00x8.62

Product Description

The Hoffman A36N30BLP is a medium hinged-cover pull box, Type 1, with a size range of 16 x 12 -in. to 36 x 30-in. It features mounting provisions for an optional panel and meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures. The enclosure houses controls and instruments in areas that do not require oil-tight and dust-tight ratings.

• Butt hinges on door
• Collar studs provided for mounting optional panel
• Mounting holes on back of enclosure

Product Highlights

The Hoffman A Series Medium NEMA 1 enclosures are popular in HVAC applications and building automation systems, BAS.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36N30BLP
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 86120
• Height: 36 in
• Width: 30 in
• Depth: 8.62 in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 2.66 mm
• UPC: 783510861209
• Bulletin Number: A1M
• Type: Rack Mount Enclosure
• Mount: Hinged
• Applications: For Controls and Drives, Power Distribution, Indoor, Electrical Protection
• Cover Type: Hinge Cover
• IP Rating: 30
• Size: 36.00x30.00x8.62 in
• Standard: CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27567,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27567
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• GTiN: 00783510861209
• Product UPC: 78351086120
• ECCN: EAR99
• UNSPSC: 39121324
• NEMA Rating: 1
• Latch: Slotted Flush
• Cover Mounting: Hinge
• Cover Latching: Latch
• Mounting: Internal Holes
• Optional Panel: A36N30MP
• Country of Origin: Mexico - Subject to change
