Hoffman A362406LP Continuous Hinge Enclosure 36 x 24 x 6

Product Description

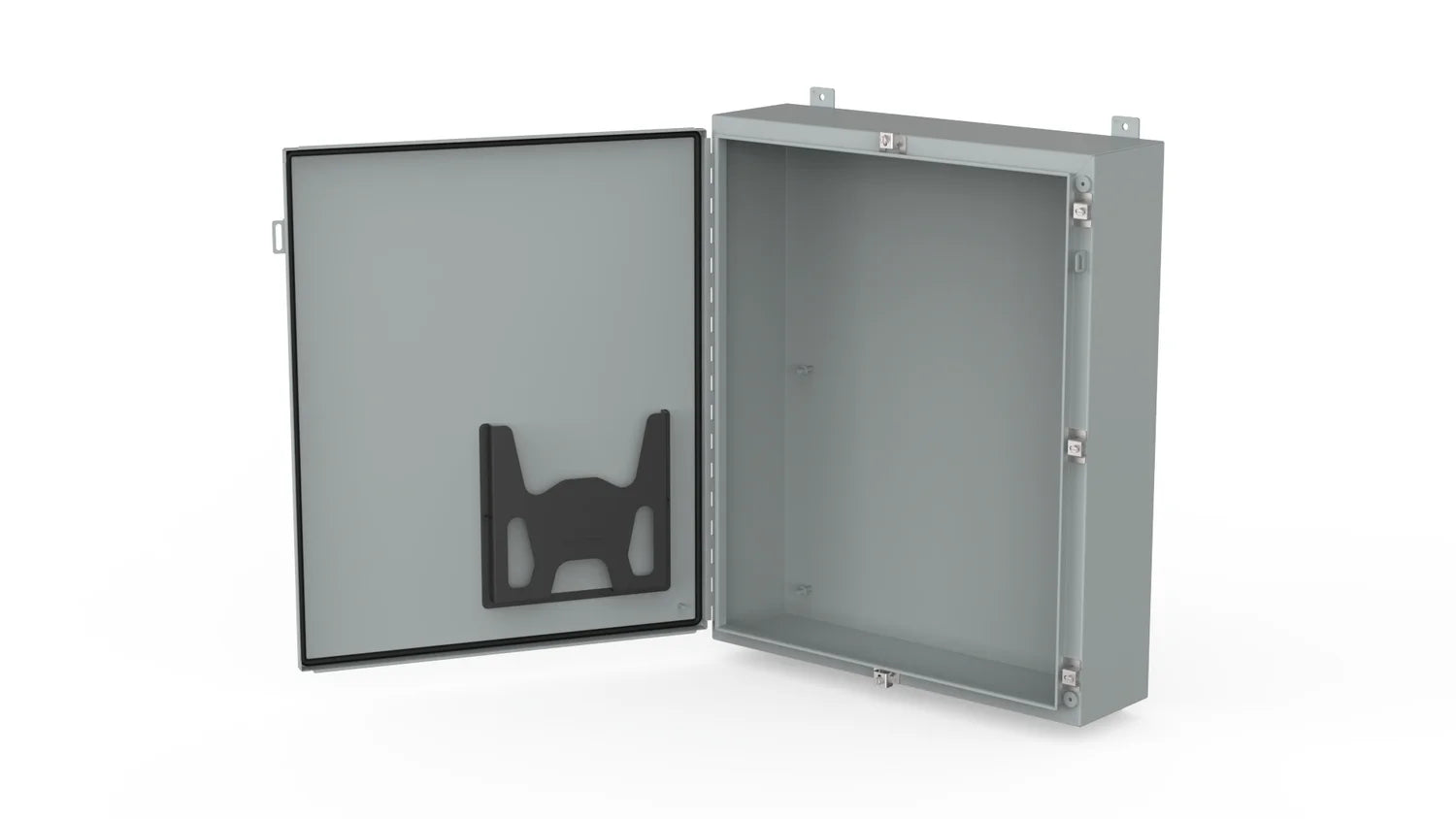

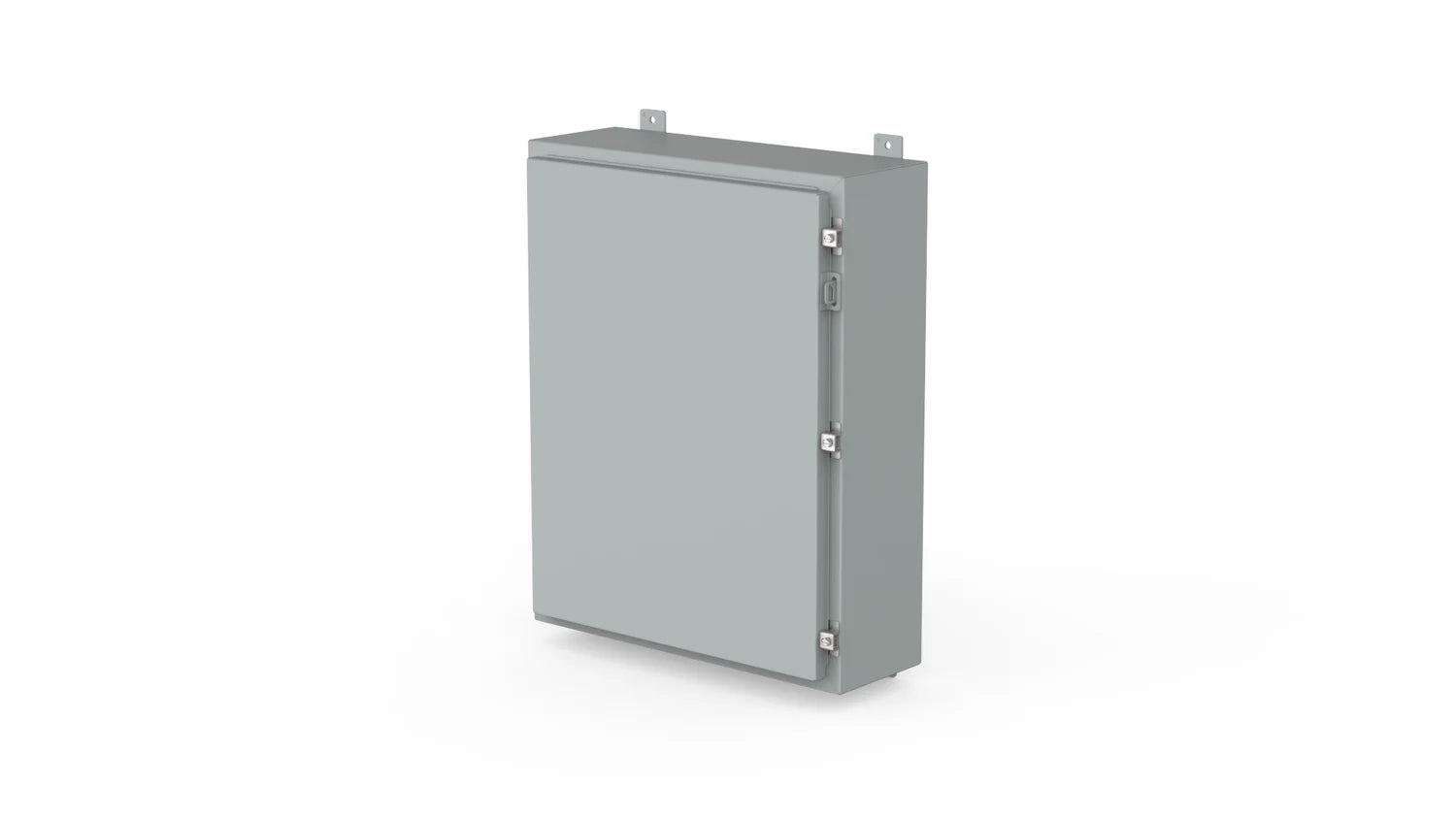

The Hoffman A362406LP continuous hinge enclosure is designed for both indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. It is used for housing electrical and pneumatic controls, instruments, and components.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

This enclosure provides protection from dust, dirt, oil, and water with screw-down clamps for secure closure and a padlocking hasp and staple for security.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A362406LP
• Country of Origin: USA

Technical Specifications

• Article Number: 28110
• Height: 36in
• Width: 24in
• Depth: 6in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14ga
• Clamp Quantity: 3
• Data Pocket: Large
• UPC: 783510281106
• Bulletin Number: A12
• Type: Enclosure Only
• Enclosure Width: 24 in
• Enclosure Height: 36 in
• Enclosure Depth: 6 in
• Enclosure Rating: NEMA 4X
• Mount: Wall
• UNSPSC Code: 31260000
• Approximate Depth: 6 in
• Approximate Height: 36 in
• Approximate Width: 24 in
• Brand: nVent HOFFMAN
• Configuration: Without Knock-Outs
• Enclosure Mounting: Panel Mount
• IP Rating: IP65
• Manufacturer Part Number: A362406LP
• NEMA Rating: NEMA 13
• Series: A12 Series
• Enclosure Type: Electrical / Industrial
• Enclosure Material: Steel
• External Height - Metric: 914mm
• External Width - Metric: 610mm
• External Depth - Metric: 152mm
• Body Color: Grey, White
• External Height - Imperial: 36"
• External Width - Imperial: 24"
• External Depth - Imperial: 6"
• IP/NEMA Rating: IP65, NEMA 3R, NEMA 12, NEMA 13, NEMA 4
• Knockouts: No
