Hoffman A30H2408ALLP Continuous Hinge Enclosure with Clamps 30x24x8

Product Description

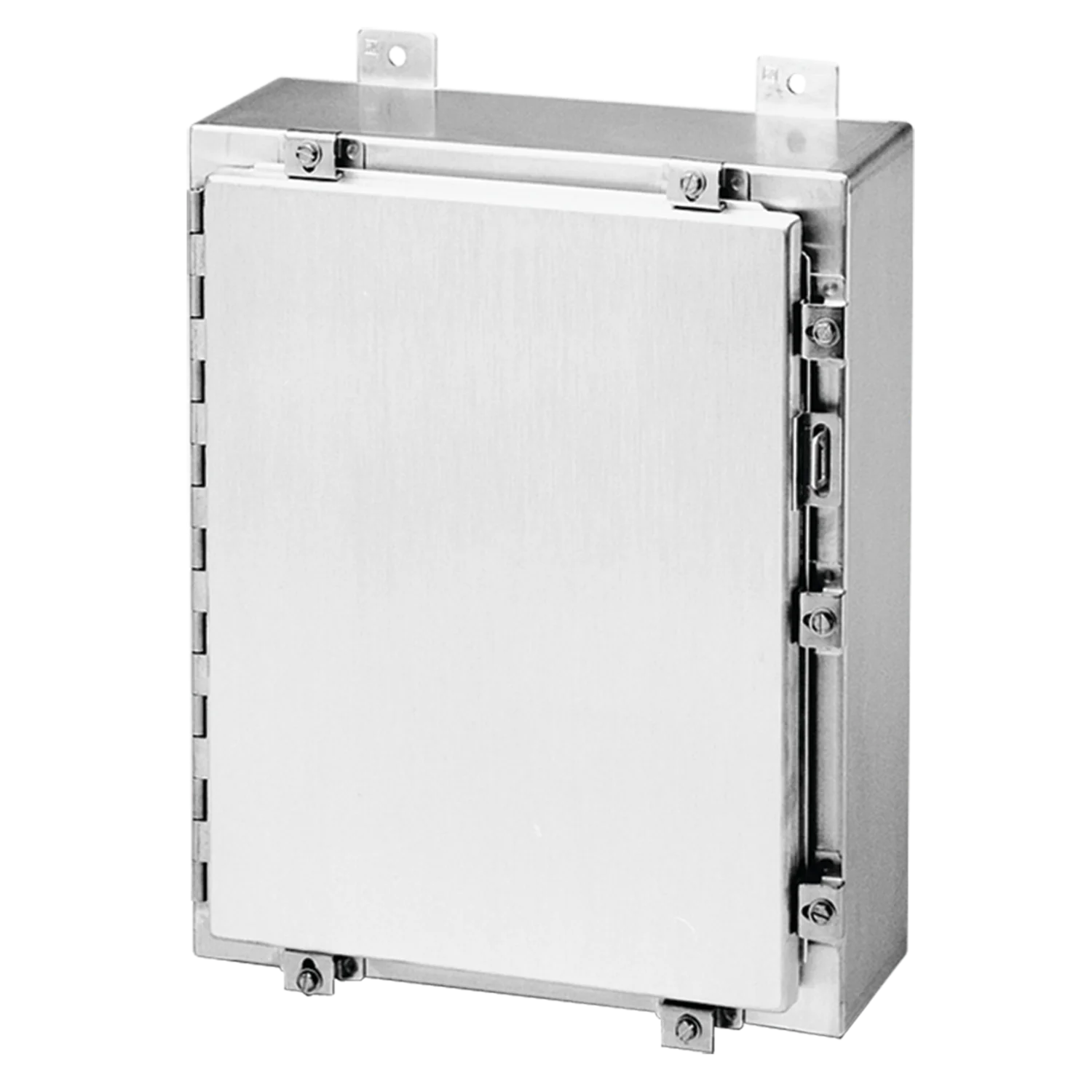

The HOFFMAN A30H2408ALLP continuous hinge aluminum enclosure with clamps is a lightweight, Type-4X solution featuring a hinged cover secured on three non-hinged sides via stainless steel clamps and screws. Ideal for protecting components and controls in highly corrosive indoor or outdoor environments, such as petrochemical processing, sewage treatment, and marine environments.

• Lightweight, Type 4x hinged enclosure.
• Seams continuously welded and ground smooth
• Rolled lip around three sides of door and all sides of enclosure opening

Product Highlights

This aluminum enclosure provides robust protection in harsh conditions, featuring a secure, hinged design and durable construction.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A30H2408ALLP

Technical Specifications

• Article Number: 27310
• Height: 30in
• Width: 24in
• Depth: 8in
• Material: Aluminum
• Finish: Brushed
• Thickness: 0.08in
• Panel Mounting Stud Quantity: 6
• Clamp Quantity: 5
• Data Pocket Size: 12.00 x 12.00in
• UPC: 783510273101
• Packing Quantity: 1
• Bulletin Number: A4A
• Applications: Controls and Drives; Corrosive Environments
• IP Rating: 66
• Size: 30.00x24.00x8.00 in
• Standard: 12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510273101
• Color: Unpainted
• Enclosure Type: Electrical / Industrial
• External Height - Metric: 762mm
• External Width - Metric: 610mm
• External Depth - Metric: 203mm
• NEMA Rating: NEMA 3R, 4, 4X, 12, 13
• External Height - Imperial: 30"
• External Width - Imperial: 24"
• External Depth - Imperial: 8"
