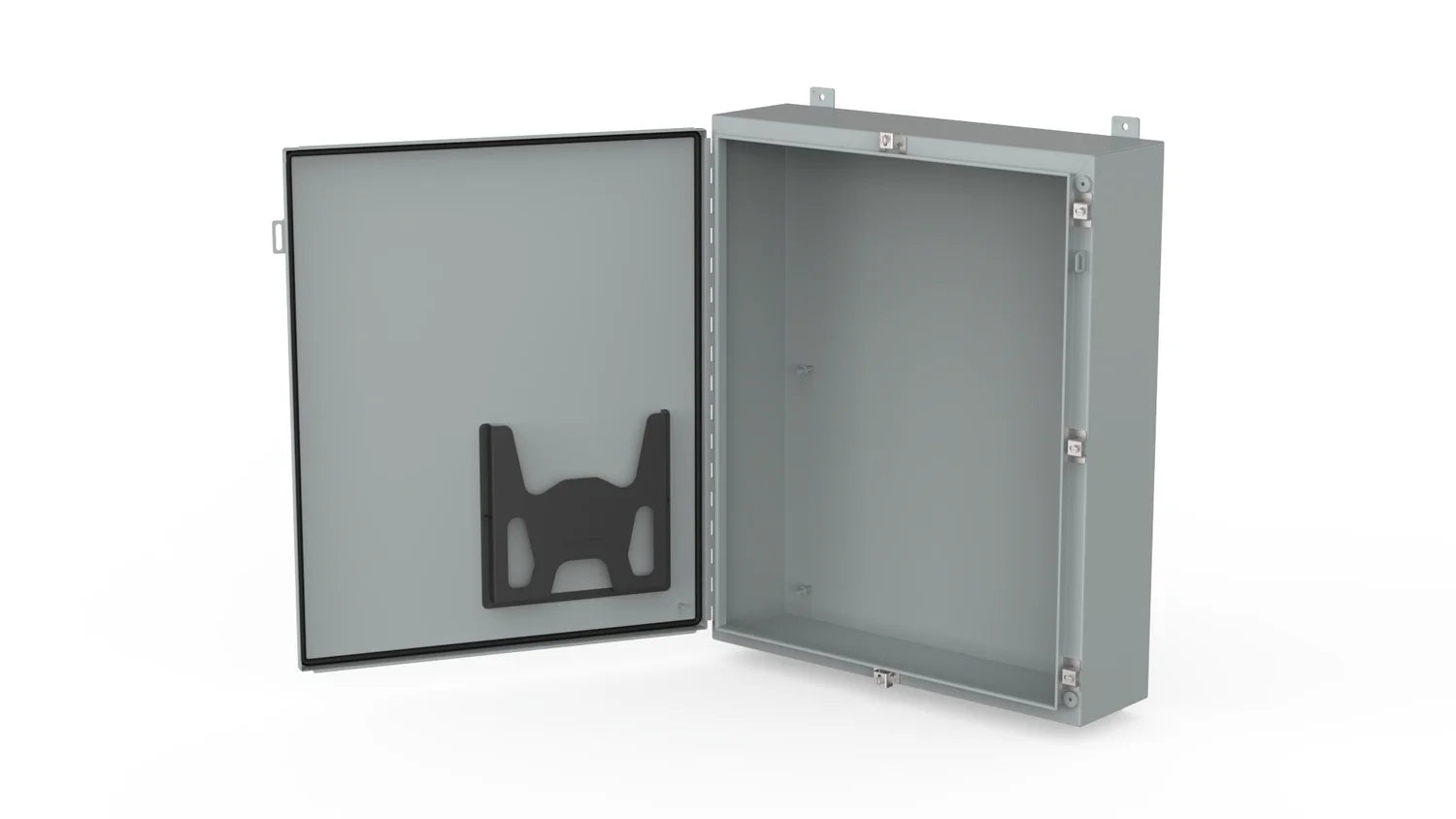

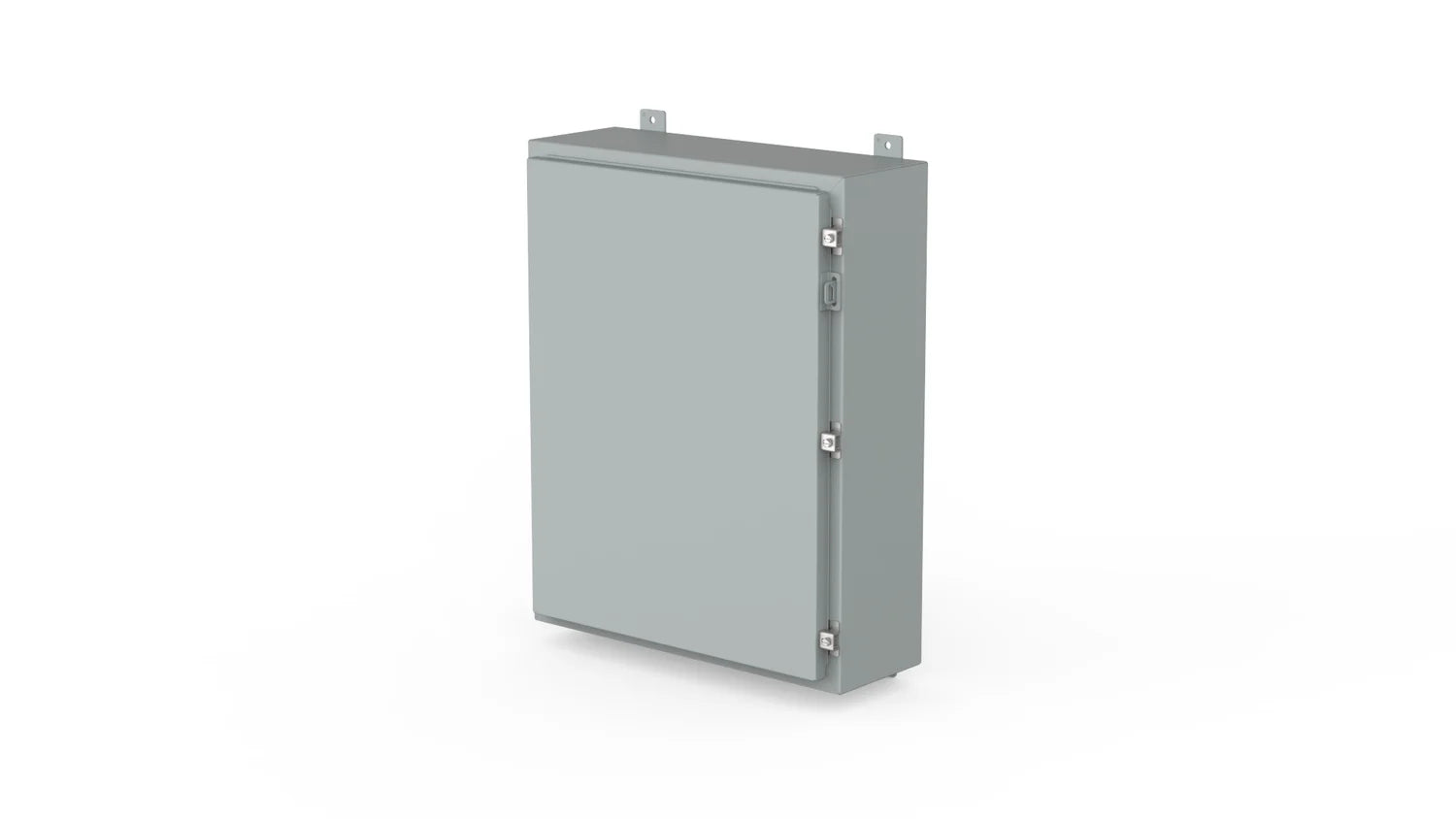

Hoffman A303008LP Continuous Hinge Enclosure 30x30x8

Product Description

The HOFFMAN A303008LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. It is designed to achieve optimal compression of the seamless, foam-in-place gasket.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Stainless steel screw-down door clamps

Product Highlights

Durable steel enclosure with continuous hinge, ideal for environments needing dust and corrosion resistance.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A303008LP
• Country of Origin: USA (subject to change)

Technical Specifications

• Article Number: 27920
• Height: 30 in
• Width: 30 in
• Depth: 8 in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14 ga
• Clamp Quantity: 5
• Data Pocket: Large
• UPC: 783510279202
• Bulletin Number: A12
• Manufacturer Part Number: A303008LP
• Body Material Thickness: 14 ga
• Closure Method: Clamps
• Compatible Panel Model Number: A30P30; A30P30G
• Cover Closure Type: Hinged
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Dust Tight
• Gasket Material: Neoprene
• IP Rating: IP65
• Knockouts: Not Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 12; 13
• Nominal Depth: 8 in
• Nominal Height: 30 in
• Nominal Width: 30 in
• Overall Depth: 8 in
• Overall Height: 30 in
• Overall Width: 30 in
• Panel Height: 27 in
• Panel Width: 27 in
• Product Type: Continuous Hinge Enclosure
• Standards: CSA, File No 42186: Type 12; cUL Listed Per CSA C22.2 No 94; File No E61997; IEC 60529; NEMA/EEMAC Type 12 and 13; UL 508A Listed
• UNSPSC: 39121301
• NEMA: 12
• Cover Mounting: Hinge, Continuous
• Cover Latching: Screw Clamp, Padlock Hasp
• Cover Type: Solid
• Mounting: External Feet
• Optional Panel: A30P30
• Type: Wall Mount Enclosure
• Material Thickness: 14 Gauge
• IP/NEMA Rating: IP65, NEMA 3R, NEMA 12, NEMA 13, NEMA 4
• Special Program: Hoffman On Demand
• UNSPSC Code: 31260000
• Approximate Depth: 8 in
• Approximate Height: 30 in
• Approximate Width: 30 in
• Brand: nVent HOFFMAN
• Series: A12 Series
• Junction Box Type: Junction Box
