Hoffman A202006LP Continuous Hinge Enclosure 20x20x6

Product Description

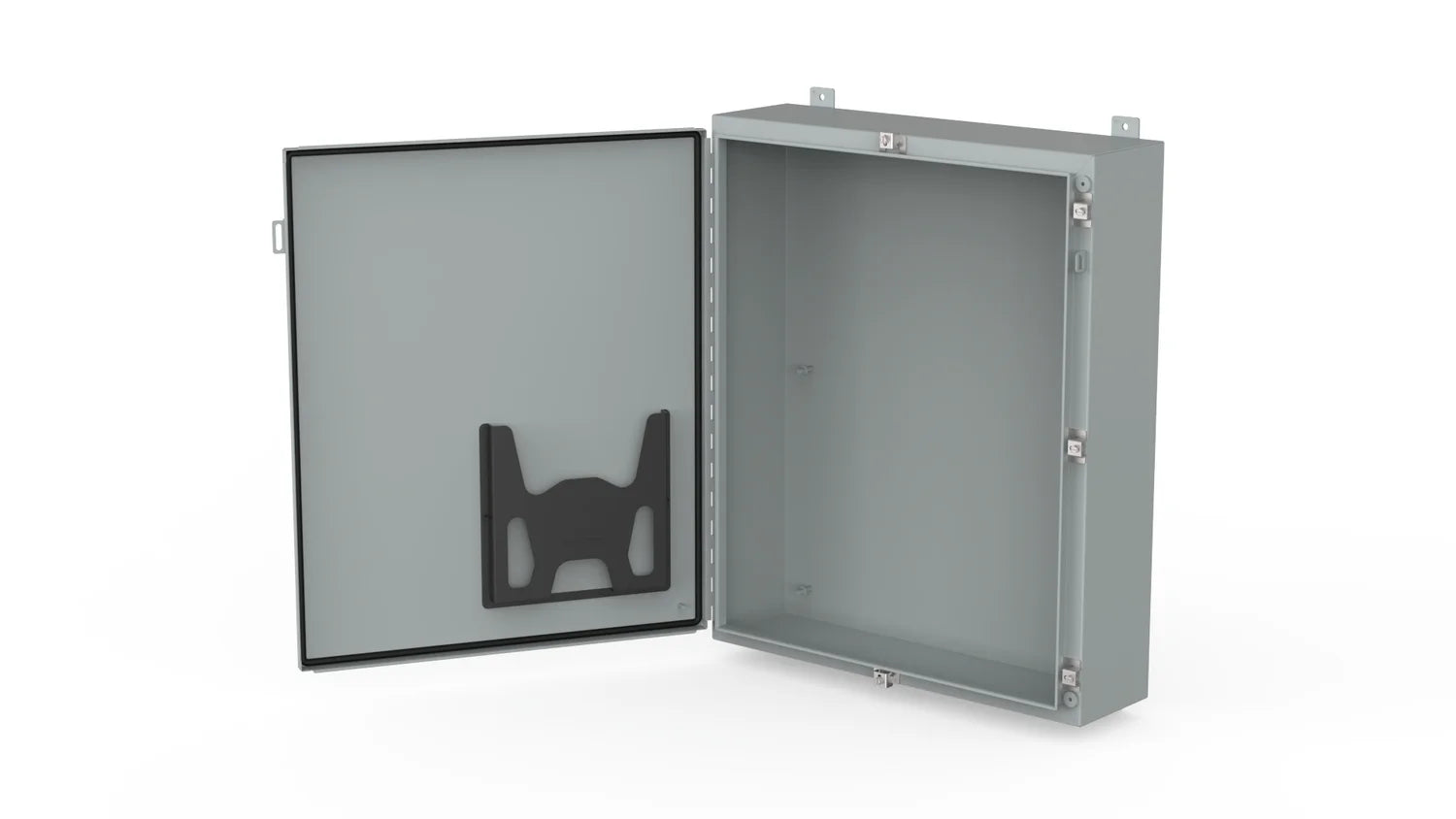

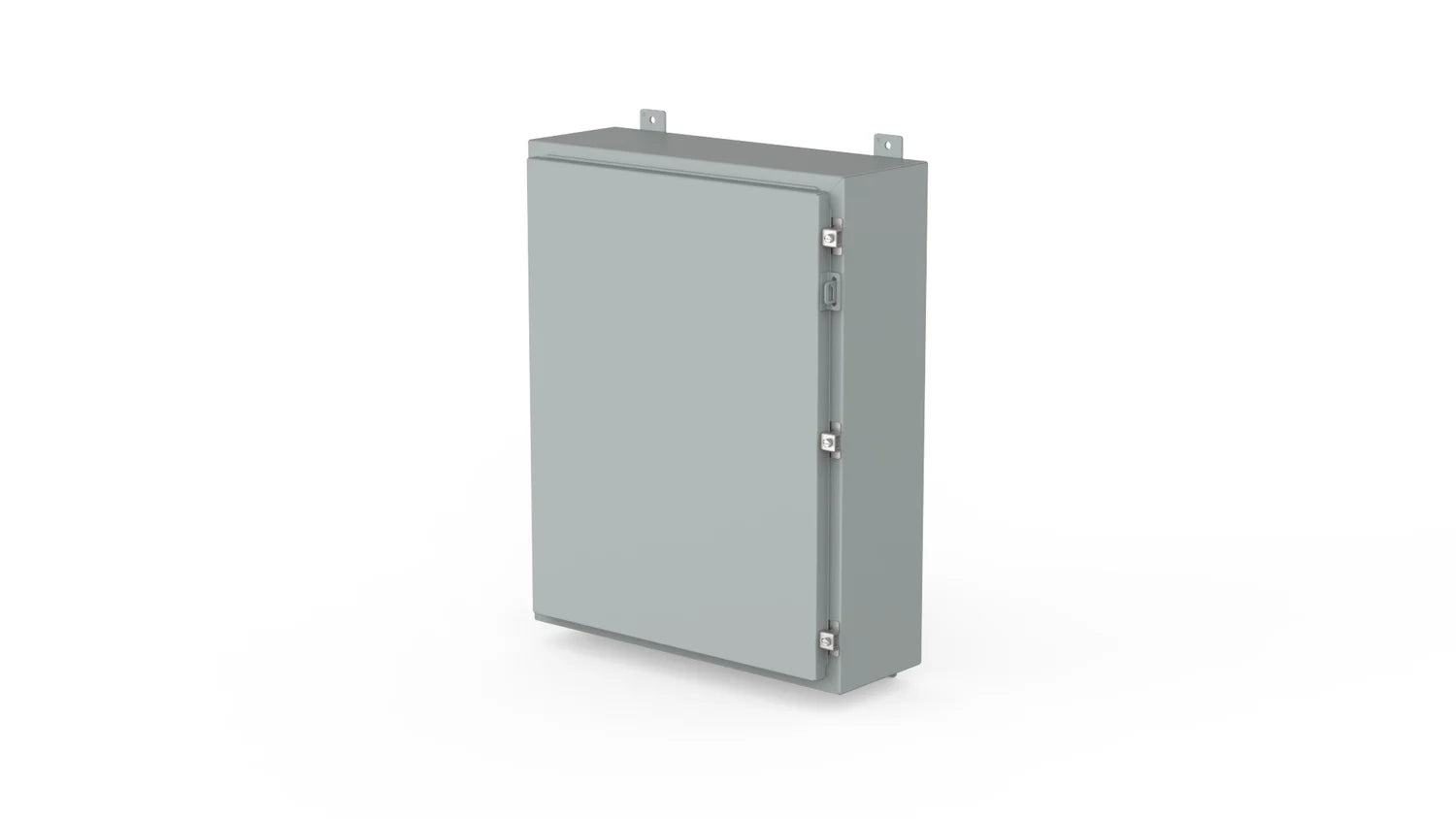

The HOFFMAN A202006LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. It also includes a padlocking hasp and staple for security.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Stainless steel screw-down door clamps

Product Highlights

This enclosure features continuously welded seams, external mounting brackets, and stainless steel screw-down door clamps.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A202006LP
• Country of Origin: US

Technical Specifications

• Article Number: 28040
• Height: 5.984" (152.00mm)
• Width: 20in
• Depth: 6in
• Color: Gray
• Color Code: ANSI 61
• Material: Alloy Steel
• Finish: Powder Coated
• Thickness: 16ga
• Clamp Quantity: 2
• Data Pocket: Small
• UPC: 783510280406
• Bulletin Number: A12
• Application: Industrial
• Brand Name: Hoffman
• Cover_Type: Continuous Hinged/Clamp
• Enclosure: NEMA 12/13, IP65
• NEMA_Rating: NEMA 12/IP65
• Series: A12
• Size: 20X20X6
• Special Features: Bonding provision on door, Collar studs provided for mounting optional panels, Data pocket is high impact thermoplastic, Enclosure bodies are 14 or 16 ga steel, doors are 14 ga steel, External wall mounting brackets for easy installation, Formed external return flanges around all sides of enclosure opening, Hasp and staple provided for padlocking, Oil-resistant gasket, Removable door with continuous hinge, Removable heavy gauge continuous hinge pin, Screw-down door clamps, Seams continuously welded and ground smooth
• Standard: UL 508A Listed; Type 12, 13; File No. E61997; cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997; NEMA/EEMAC Type 12 and 13; CSA, File No. 42186: Type 12 ; IEC 60529, IP65
• Sub_Brand: Hoffman
• Type: Medium
• Finish Type: Steel
• Installation Type: Wall Mount
• Enclosure Height: 20 IN
• Enclosure Width: 20 IN
• Category: Boxes
• Packaging: Box
• Part Status: Active
• Features: Sealing Gasket, Wall Mount
• Container Type: Junction Box
• Ratings: IP65, NEMA 12, 13, UL-508A
• Size / Dimension: 20.000" L x 20.000" W (508.00mm x 508.00mm)
• Area (L x W): 400in ² (2581cm ²)
• Base Product Number: A202006
• Design: Hinged Door, Lid
• Body Gauge: 16 ga
• A x B x C: 20 x 20 x 6 in
• Panel Size (D x E): 17.00 x 17.00 in
• Data Pocket Size: Small
• Description: Continuous Hinge With Clamps
• Manufacturers Part Number: A202006LP
• Panel: A20P20
• Number of Clamps: 2
