Hoffman A201208LP Continuous Hinge Enclosure with Clamps LP Type 4, 20x12x8

Product Description

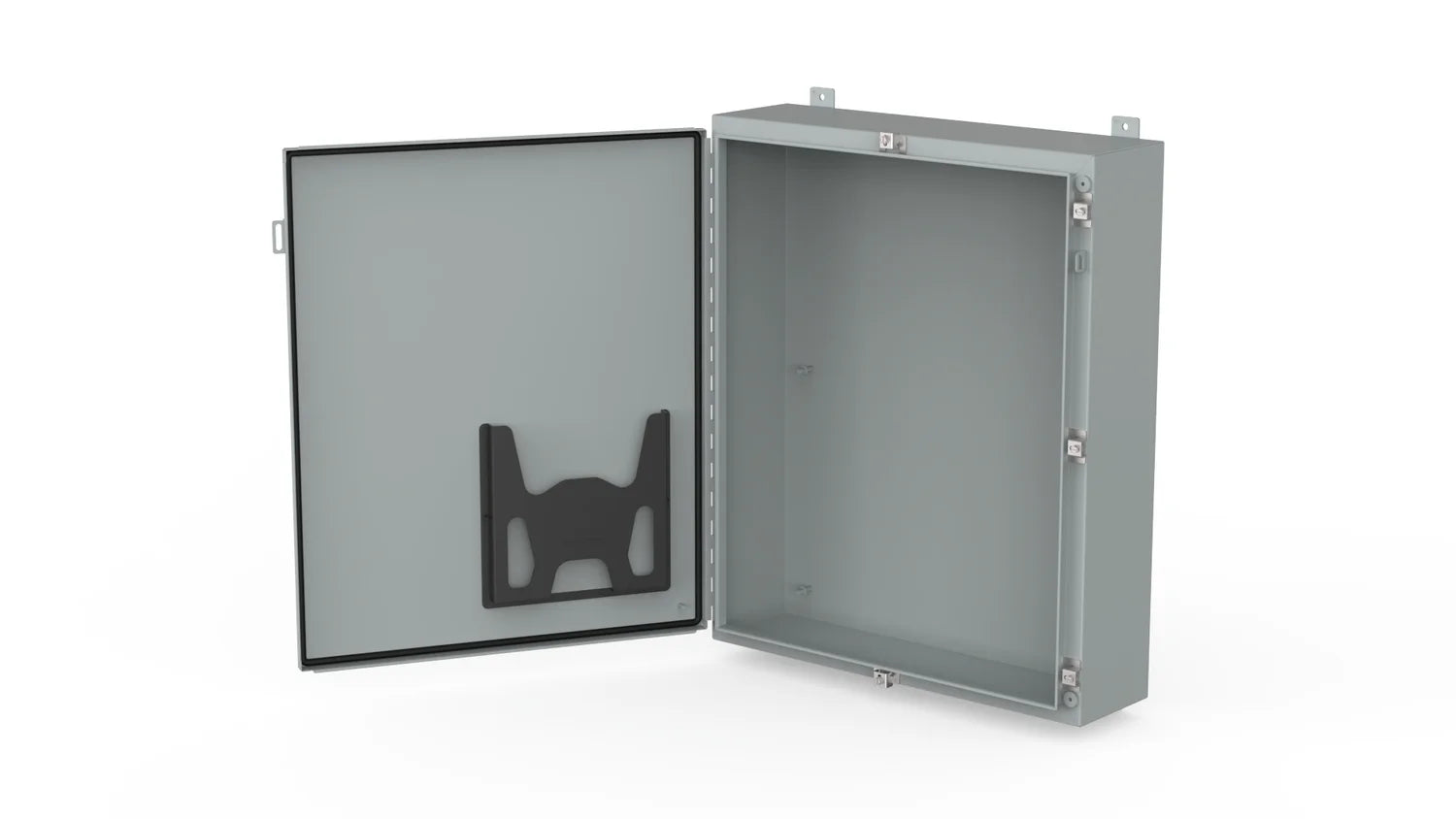

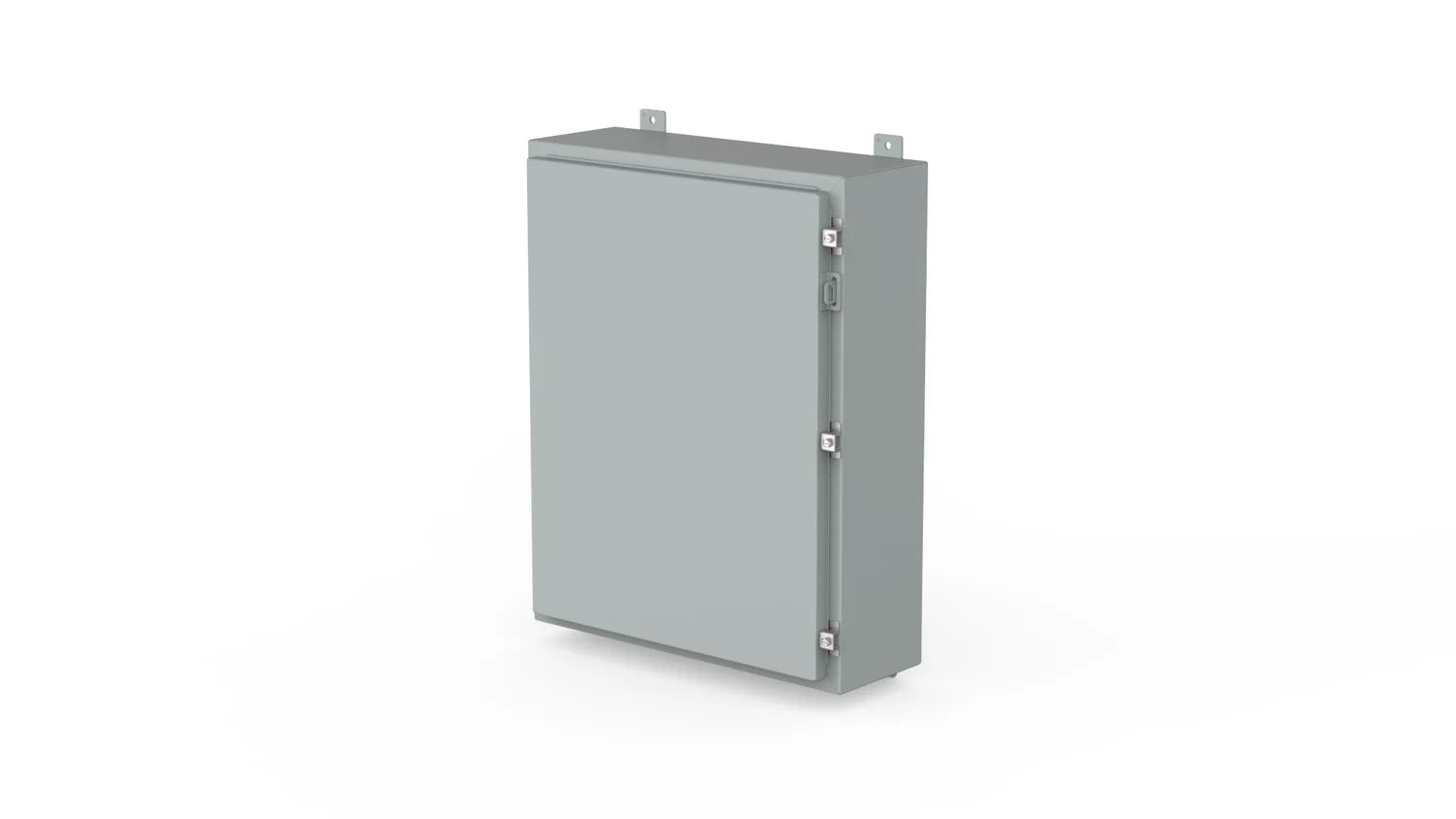

The HOFFMAN A201208LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

This enclosure features continuously welded seams, external mounting brackets, and stainless steel screw-down door clamps.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A201208LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 27860
• Height: 20 in
• Width: 12 in
• Depth: 8 in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 16ga
• Clamp Quantity: 2
• Data Pocket: Small
• UPC: 783510278601
• Packing Quantity: 1
• Bulletin Number: A12
• UNSPSC: 39121324
• NEMA Rating: 12, 13
• Standard: UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File No. 42186: Type 12 , IEC 60529, IP65
• Type: Continuous Hinge with Clamps, Type 12
• Brand: Hoffman
• Features: Waterproof
• Box Shape: Rectangular
• Application: Industrial, Commercial, Control Equipment Panels
• Suitable For: Wall, Interior, Exterior
• Country of Origin: United States
• Cover Type: Clamp/Continuous Hinged
• Lock: Hasp and Staple/Padlock
• Mounting Type: Wall
• Panel Size: 9 in W x 17 in H
• Series: A12
• Enclosure: NEMA 12/13, IP65
• Material Specification: 16 Gauge
• Mounting: External Bracket, Wall
• Approval: UL 508A, CUL, CSA C22.2
