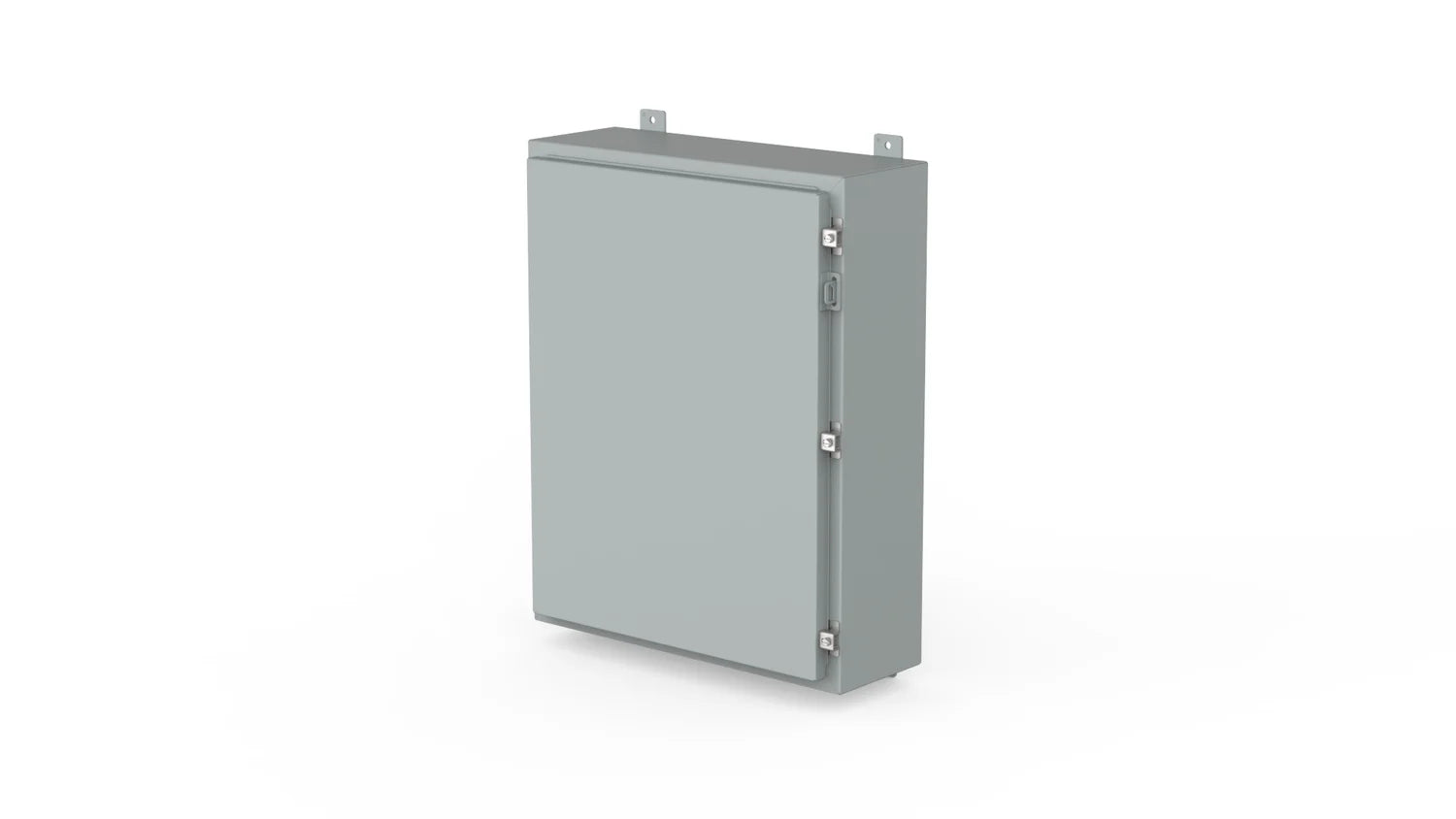

Hoffman A201206LP Continuous Hinge Enclosure with Clamps LP Type 4, 20x12x6, Mild Steel

Product Description

The HOFFMAN A201206LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. Designed with continuously welded seams that are ground smooth.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

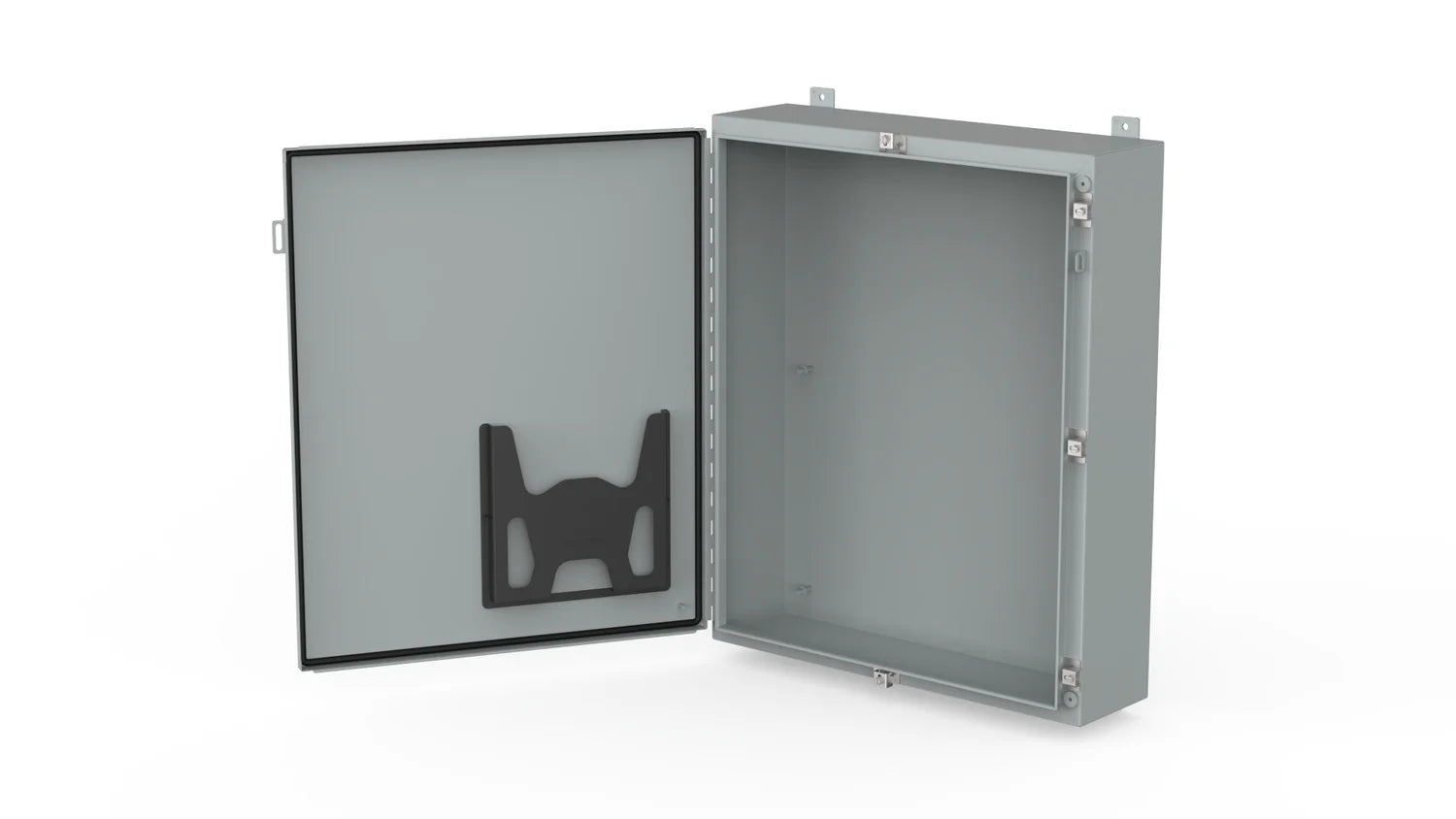

This Hoffman enclosure features stainless steel screw-down door clamps, a removable door with a continuous hinge, and a seamless foam-in-place gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A201206LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 27850
• Height: 508 mm
• Width: 305 mm
• Depth: 152 mm
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 1.52 mm
• Clamp Quantity: 2
• Data Pocket: Small
• UPC: 783510278502
• Bulletin Number: A12
• Commodity Level Descrip: NEMA Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
• Brand Name: Bulletin A12
• Manufacturer: Hoffman
• UNSPSC: 39121324
• Commodity Code: 36190
• Mounting: Wall
• Material Specification: 16 Gauge
• Type: One Door
• Approval: UL 508A, CUL, CSA C22.2
• Back Panel: A20P12, A20P12G
• Enclosure: NEMA 12/13, IP65
• Cover Type: Heavy Gauge Continuous Hinge with Removable Pin, Clamp, Gasketed, Padlockable Hasp and Staple
• Additional Info: Applicable Standard IEC 60529; Number of Clamp 2; ROHS Compliant
• ECCN: EAR99
• NEMA Rating: 12, 13
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• Applications: Controls and Drives, Indoor
• Body Gauge: 16
• Gauge: 16 ga Body
• Size: 20.00x12.00x6.00 in
• Standard: 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP65,NEMA/EEMAC Type 12 And 13,Type 12,UL 508A Listed
• Sub Brand: Hoffman
• GTiN: 00783510278502
• Product UPC: 78351027850
• IP/NEMA Rating: IP65, NEMA 12, NEMA 13
• Knockouts: No
