Hoffman A16H12BLP Continuous Hinge Enclosure 16x12x8

Product Description

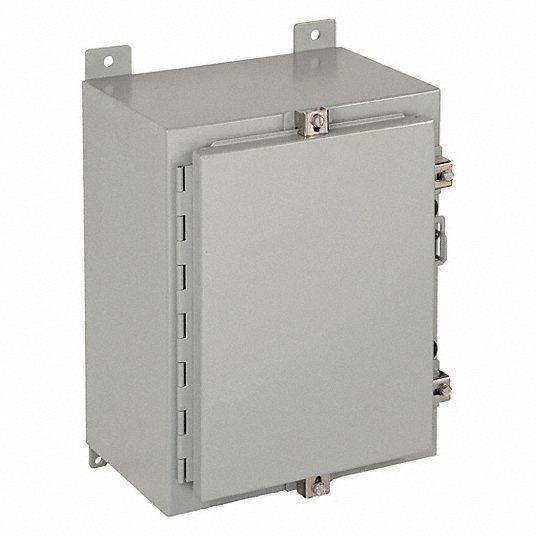

The HOFFMAN A16H12BLP continuous hinge enclosure features a hinged door with clamps to create a secure seal for indoor or outdoor environments. Designed to house electrical and pneumatic controls, instruments, and components, providing protection from windblown dust and rain, splashing water, and hose-directed water. The gray polyester powder finish provides enhanced corrosion protection.

• Seams continuously welded and ground smooth
• External wall-mounting brackets for easy installation
• Stainless steel screw-down clamps on three sides of door

Product Highlights

The A16H12BLP enclosure is ideal for protecting electrical components in harsh environments, featuring a continuous hinge, robust construction, and secure sealing.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A16H12BLP
• Country of Origin: US

Technical Specifications

• Article Number: 24410
• Height: 16in
• Width: 12in
• Depth: 8in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• Clamp Quantity: 4
• Data Pocket: Small
• UPC: 783510244101
• Type: Mild Steel Wall Mounted Industrial Enclosures
• Mount: Hinged
• Application: Controls and Drives
• Brand: nVent HOFFMAN
• Catalog Number: A16H12BLP
• Country of Origin: US
• EU RoHS Indicator: RCP
• Harmonization Tariff Schedule Code: 7326908688
• Height [Metric]: 25.4000 cm
• Interchangeable: No
• IP Rating: IP66
• Item Group: A4
• Length: 13.4000 in
• Length [Metric]: 53.3400 cm
• Manufacturer: HOFFMAN ENCLOSURES
• Modification Services: Yes
• NEMA Rating: 12 Indoor, dust-resistant
• Panel Size: 13.00 x 9.00 in
• Panel Size [Metric]: 330 x 229 mm
• Panel Type: A16P12
• Size: 16.00x12.00x8.00 in
• Thickness [Metric]: 1.52 mm
• UNSPSC: 39121324
• UPC 11: 78351024410
• UPC 12: 783510244101
• Width [Metric]: 34.0360 cm
• Body Material Thickness: 16 ga
• Closure Method: Clamps
• Compatible Panel Model Number: A16P12; A16P12G
• Cover Closure Type: Hinged
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Washdown
• Gasket Material: Seamless Foam-In-Place
• Knockouts: Not Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 4; 12; 13
• Nominal Depth: 8 in
• Nominal Height: 16 in
• Nominal Width: 12 in
• Overall Depth: 8 in
• Overall Height: 16 in
• Overall Width: 12 in
• Panel Height: 13 in
• Panel Width: 9 in
• Product Type: Continuous Hinge Enclosure
• Standards: CSA, File No 42186: Type 4 and 12; cUL Listed Per CSA C22.2 No 94; File No E61997; IEC 60529; NEMA/EEMAC Type 3, 4, 12, and 13; Type 4, 12, 13; UL 508A Listed
• Color: Gray
