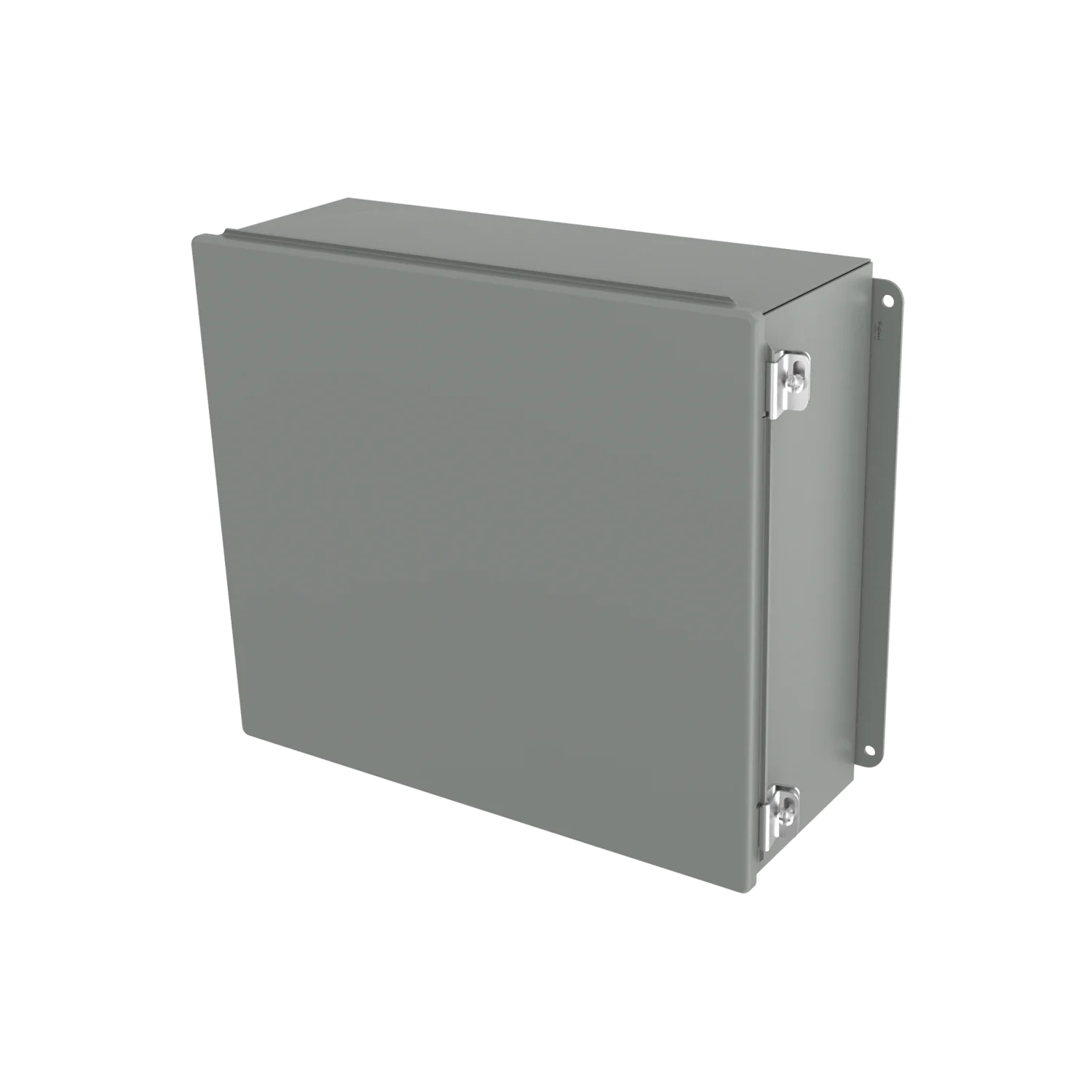

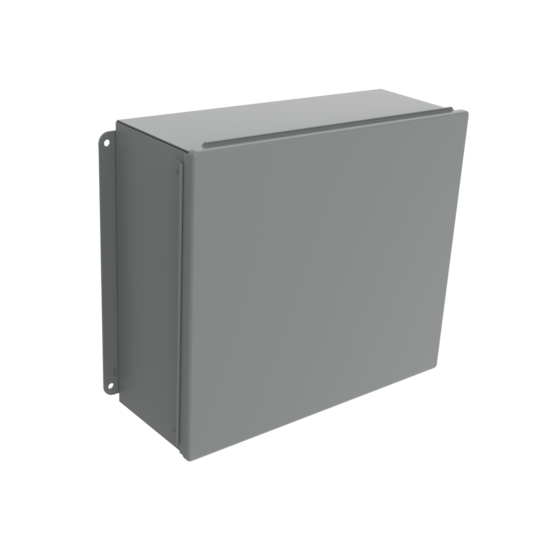

Hoffman A1614CHS Continuous Hinge Enclosure 16x14x6

Product Description

The HOFFMAN A1614CHS continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications. Seams are continuously welded and ground smooth. It has external wall-mounting brackets for easy installation and a bonding provision on the door. Weldnuts are provided for mounting optional panels and terminal block kits.

• Seams continuously welded and ground smooth
• Continuous hinge
• Screw-down door clamps

Product Highlights

The enclosure is NEMA 12/13/IP65 rated and features an oil-resistant gasket. It is made of steel with a powder-coated finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1614CHS
• Country of Origin: Mexico

Technical Specifications

• Article Number: 55540
• Height: 16 in
• Width: 14 in
• Depth: 6 in
• Material: Steel
• Finish: Polyester Powder
• Color: Gray
• Color Code: ANSI 61
• Thickness (T): 14ga
• Mounting (G x H): 16.75 x 12.00in
• Overall Dimensions (L x W): 17.50 x 14.94in
• UPC: 783510555405
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• GTIN: 00783510555405
• UNSPSC: 39121303
• Country of Origin: Mexico
• Cover Type: Continuous Hinged/Screw Clamp
• Mounting Type: Wall
• NEMA Rating: NEMA 12/13/IP65
• Panel Size: 14.75 x 12.88 in
• Series: A51CH
• Volume: 2 CF
• BABA Compliant: No
• Sold as: PIECE
• Cover Mounting: Hinged Cover
• NEMA Enclosure Rating: 12, 13
• Enclosure Material: Steel
• Closure Method: Screw Down Clamps
• Cover Closure Type: Hinged
• Knockouts: No
• Metallic / Non-Metallic: Metallic
• Cover Style: Solid
• Enclosure Cover Features: Clamps
• Gasket: Neoprene
• IP Rating: IP65
• Interior Panel: 32FR69
• Metal Gauge: 14/16 ga
• Compatible Panel Model Number: A16P14, A16P14G
• Includes Knockouts: Knockouts Not Included
• Environment - MERCH: Dust Tight
• Gasket Material: Neoprene
• Nominal Width: 14 in
• Nominal Height: 16 in
• Nominal Depth: 6 in
• Body Material Thickness: 14 ga
• Item: Electrical Enclosures
