Hoffman A161206LP Continuous Hinge Enclosure 16x12x6

Product Description

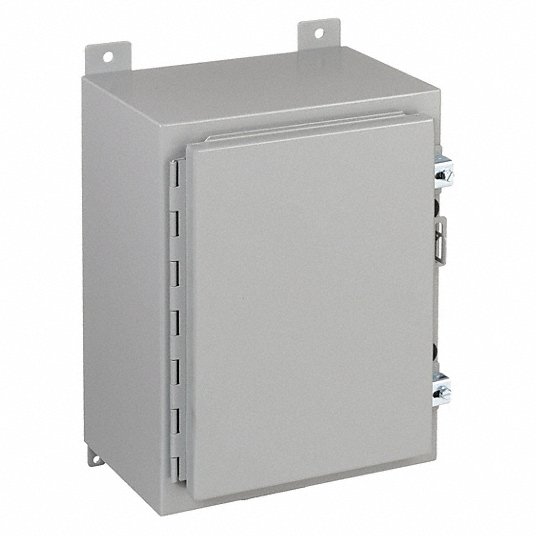

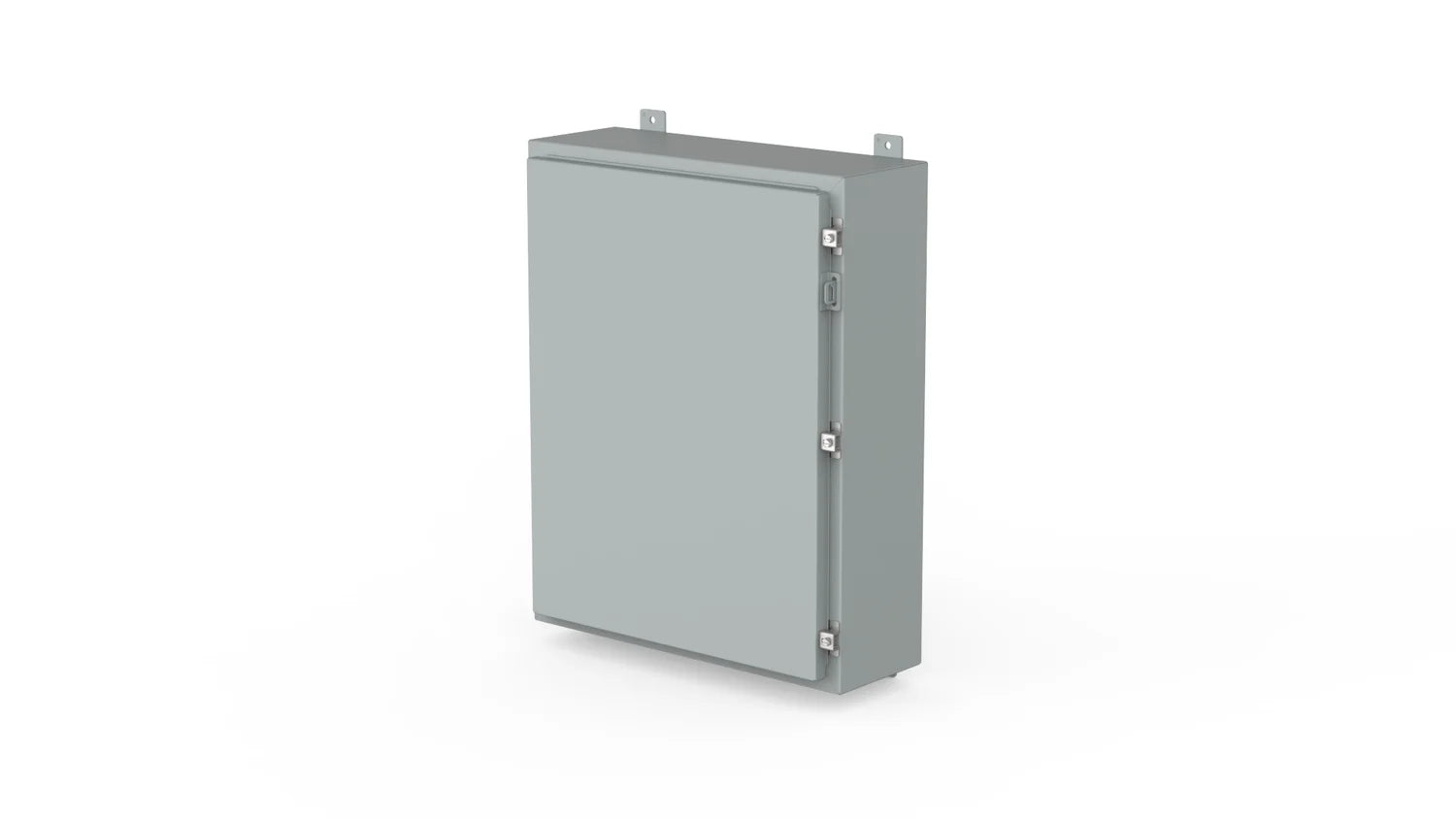

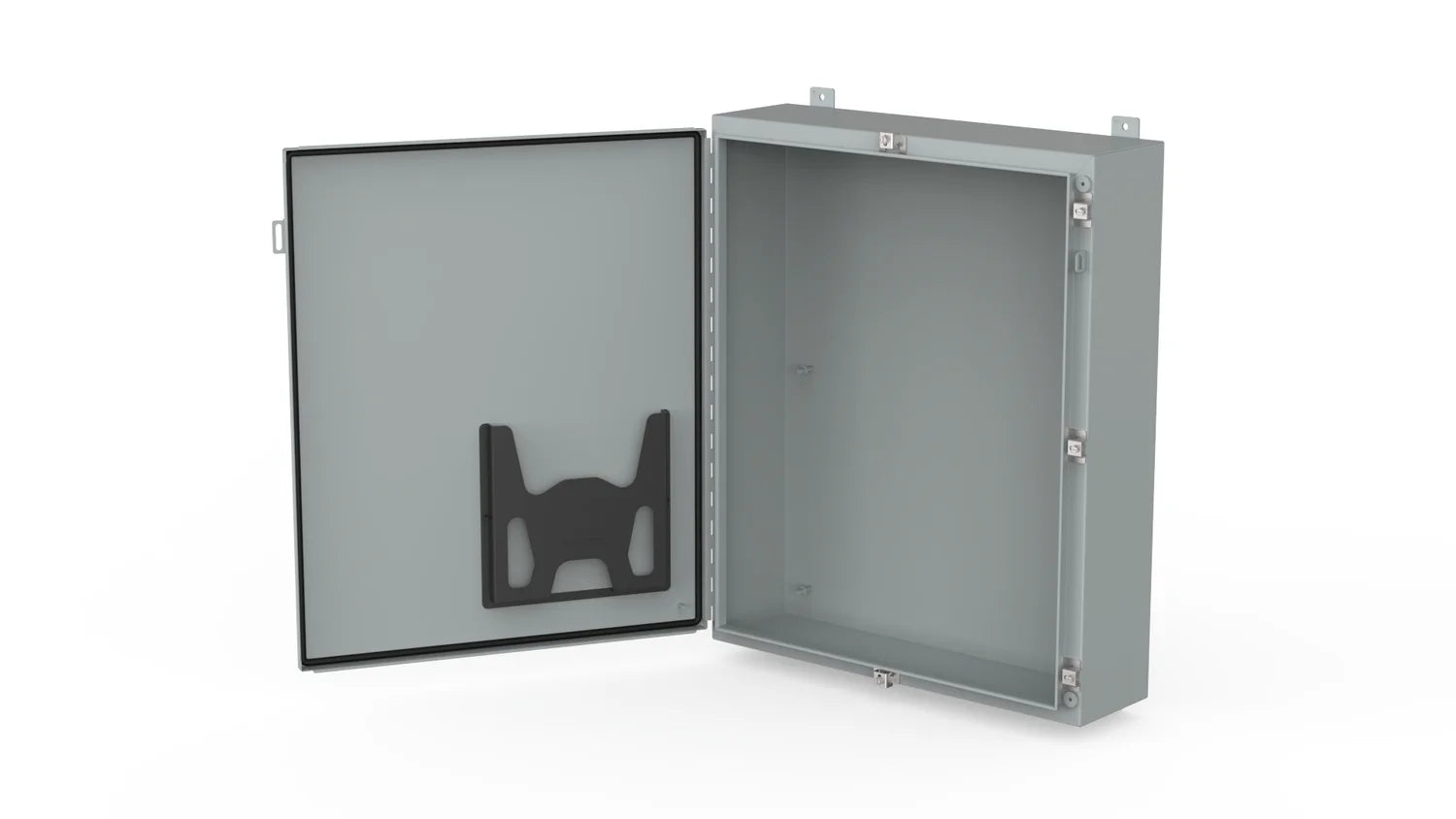

The HOFFMAN A161206LP continuous hinge enclosure is designed for both indoor and outdoor applications. Constructed of mild steel with a powder-coated finish for enhanced corrosion protection. Features continuously welded and ground smooth seams, external wall-mounting brackets, and stainless steel screw-down door clamps for secure closure.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Stainless steel screw-down door clamps

Product Highlights

Durable steel enclosure with continuous hinge, ideal for various environments requiring secure protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A161206LP
• Country of Origin: USA

Technical Specifications

• Article Number: 28010
• Height: 5.984" (152.00mm)
• Width: 12in
• Depth: 6in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 16ga
• Clamp Quantity: 2
• Data Pocket: Small
• UPC: 783510280109
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A12
• Category: Boxes
• Mfr: Hoffman Enclosures, Inc.
• Packaging: Bulk
• Part Status: Active
• Features: Sealing Gasket, Wall Mount
• Container Type: Junction Box
• Ratings: IP65, NEMA 12, 13, UL-508A
• Base Product Number: A161206
• Design: Hinged Door, Lid
• Body Material Thickness: 14 ga
• Closure Method: Clamps
• Compatible Panel Model Number: A16P12; A16P12G
• Cover Closure Type: Hinged
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Dust Tight
• Gasket Material: Neoprene
• IP Rating: IP65
• Knockouts: Not Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 12; 13
• Nominal Depth: 6 in
• Nominal Height: 16 in
• Nominal Width: 12 in
• Overall Depth: 6 in
• Overall Height: 16 in
• Overall Width: 12 in
• Panel Height: 13 in
• Panel Width: 9 in
• Product Type: Continuous Hinge Enclosure
• Standards: CSA, File No 42186: Type 12; cUL Listed Per CSA C22.2 No 94; File No E61997; IEC 60529; NEMA/EEMAC Type 12 and 13; UL 508A Listed
• UNSPSC: 39121301
• Approximate Depth: 6 in
• Approximate Height: 16 in
• Approximate Width: 12 in
• Brand: nVent HOFFMAN
• Configuration: Without Knock-Outs
• Enclosure Mounting: Panel Mount
• NEMA Rating: NEMA 13
• Series: A12 Series
• Type: Junction Box
• Unit of Measure: EA
• UPC Code: 78351028010
