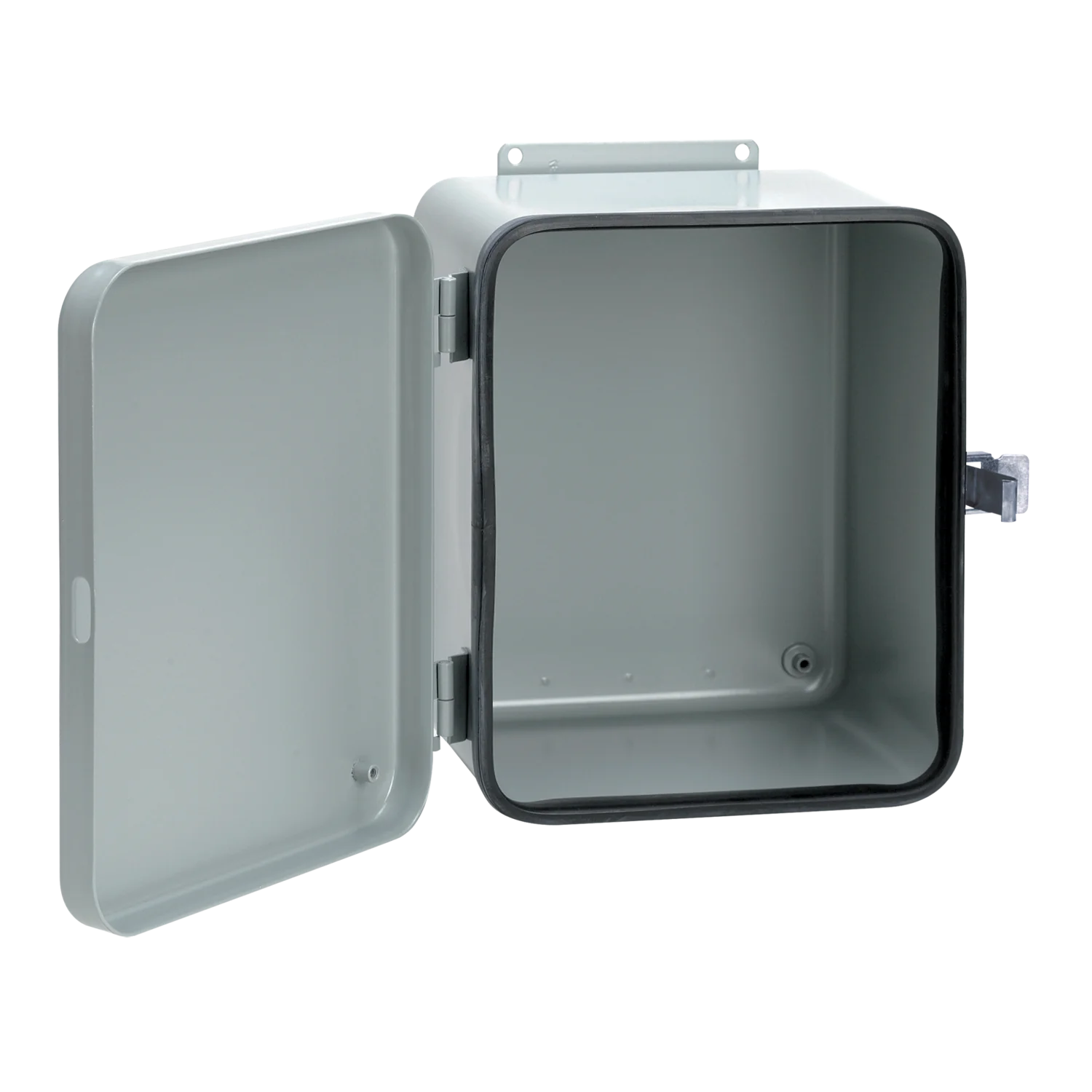

Hoffman A12104DL Removable Hinge Quick-Release Latch Contoured Type 12 12x10x4

Product Description

The HOFFMAN A12104DL is a Removable Hinge Quick-Release Latch Contoured Type 12 enclosure, ideal for protecting equipment from indoor contaminants. Featuring a quick-release latch, mounting brackets, rounded corners and an attractive finish, this enclosure can be used in applications where panel or cover mounting of controls is desired.

• Drawn enclosure with no welded seams or sharp corners
• Removable door with unique lift-off hinges
• External wall-mounting brackets for easy installation

Product Highlights

This steel enclosure provides fast access and houses and protects electrical connections in indoor, industrial environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A12104DL
• Country of Origin: Mexico

Technical Specifications

• Article Number: 60460
• Height (H): 12in
• Width (W): 10in
• Depth (D): 4in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness (T): 16ga
• Mounting (G x H): 12.50 x 8.12in
• NEMA Rating: 12
• Application: Indoor, Industrial
• Type: Lift-Off Hinge Junction Box
• Latch: Quick-Release
• UNSPSC: 39121303
• Applications: Used in Applications where Panel or Cover Mounting of Controls is Desired and for Protecting Equipment from Indoor Contaminants
• Color Coding: ANSI 61
• Cover Type: Removable, Hinged with Quick-Release Latch
• Gauge: 16
• Size: 12.00x10.00x4.00 in
• Standard: CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12 And 13,UL 508A Listed; Type 12, 13; File No. E61997
• Contoured: Type
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510604608
• Product UPC: 78351060460
• Thickness: 1.52 mm
• Manufacturer Part Number: A12104DL
