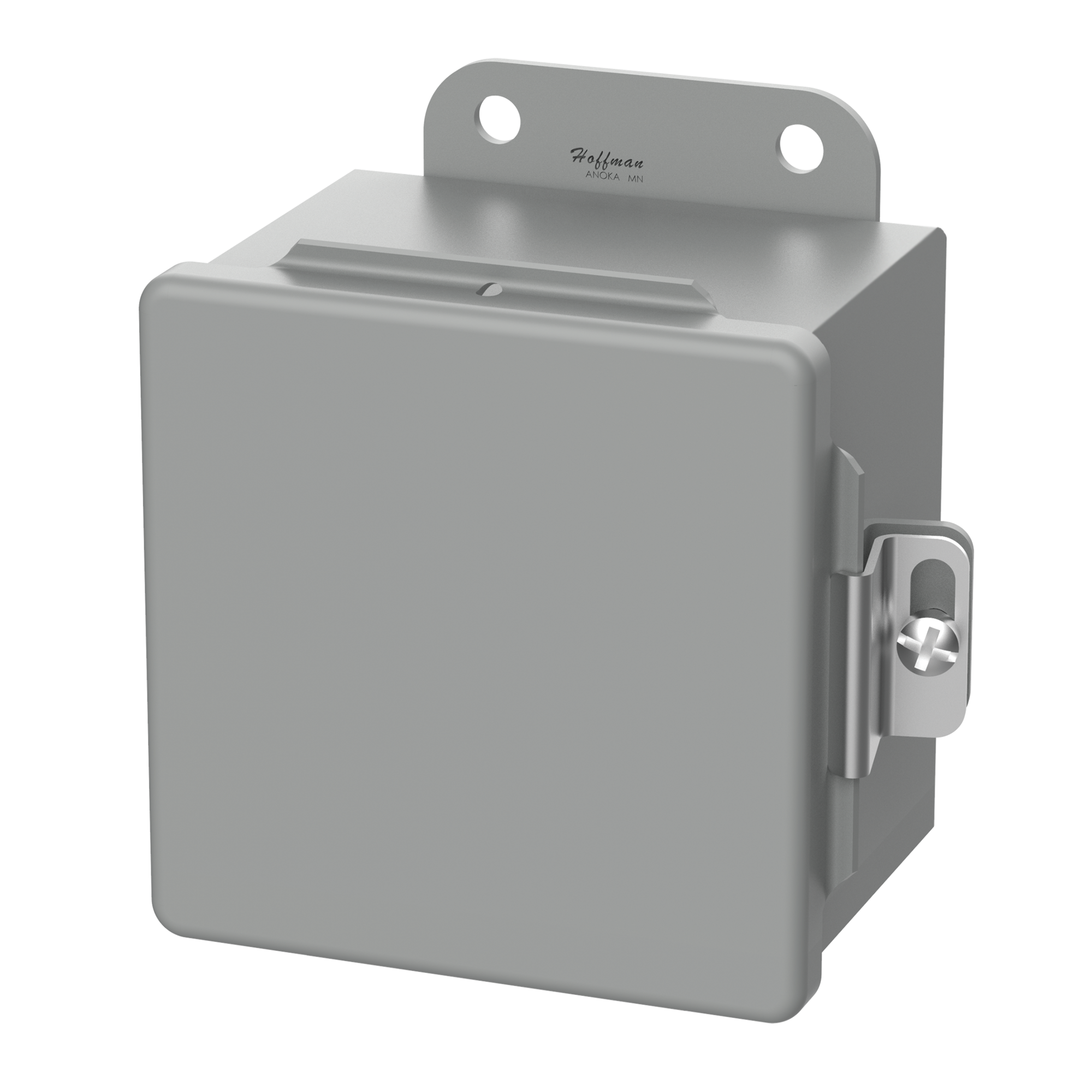

Hoffman A12064CH Continuous Hinge Clamps CH Type 12, 12.00x6.00x4.00

Product Description

The Hoffman A12064CH continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications. Seams are continuously welded and ground smooth. It has external wall-mounting brackets for easy installation and an oil-resistant gasket. Weldnuts are provided for mounting optional panels and terminal block kits.

• Seams continuously welded and ground smooth
• Continuous hinge
• Screw-down door clamps

Product Highlights

The Hoffman A12064CH is a steel enclosure with a continuous hinged cover, screw-down door clamps, and external mounting brackets. Ideal for industrial terminal and junction box applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A12064CH
• Country of Origin: MX

Technical Specifications

• Cover Type: Continuous Hinged with Clamp
• Gauge: 14 and 16
• Material: Steel
• Mounting Type: Wall
• Size: 12.00x6.00x4.00 in
• Standard: 13,50E Listed,CSA,CUL Listed Per CSA 22.2 No. 94,File,File No. E27567,File No. E61997,NEMA/EEMAC Type 12 And 13,Type 12,UL 50,UL 508A Listed
• Type: Two Lock, Single Door
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Color: Gray
• Finish: Powder Coated
• Application: Controls and Drives
• Catalog Number: A12064CH
• Color Code: ANSI 61
• Depth: 4
• Height: 4.3000 in
• IP Rating: IP65
• Item Group: A51CH
• Length: 6.8000 in
• Manufacturer: HOFFMAN ENCLOSURES
• NEMA Rating: 12 Indoor
• Panel Size: 10.75 x 4.88
• Standards: UL 50/50E, Type 12, 13, File No. E27567, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E27567, UL 508A, Type 12, 13, File No. E61997, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File
• Thickness: 14 ga
• UNSPSC: 39121303
• Width: 12.4000 in
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• Model: A12064CH
• UPC: 783510302887
• Country of Origin: United States
