Hoffman A1084DL Removable Hinge Quick-Release Latch Contoured Type 12, 10x8x4, Steel

Product Description

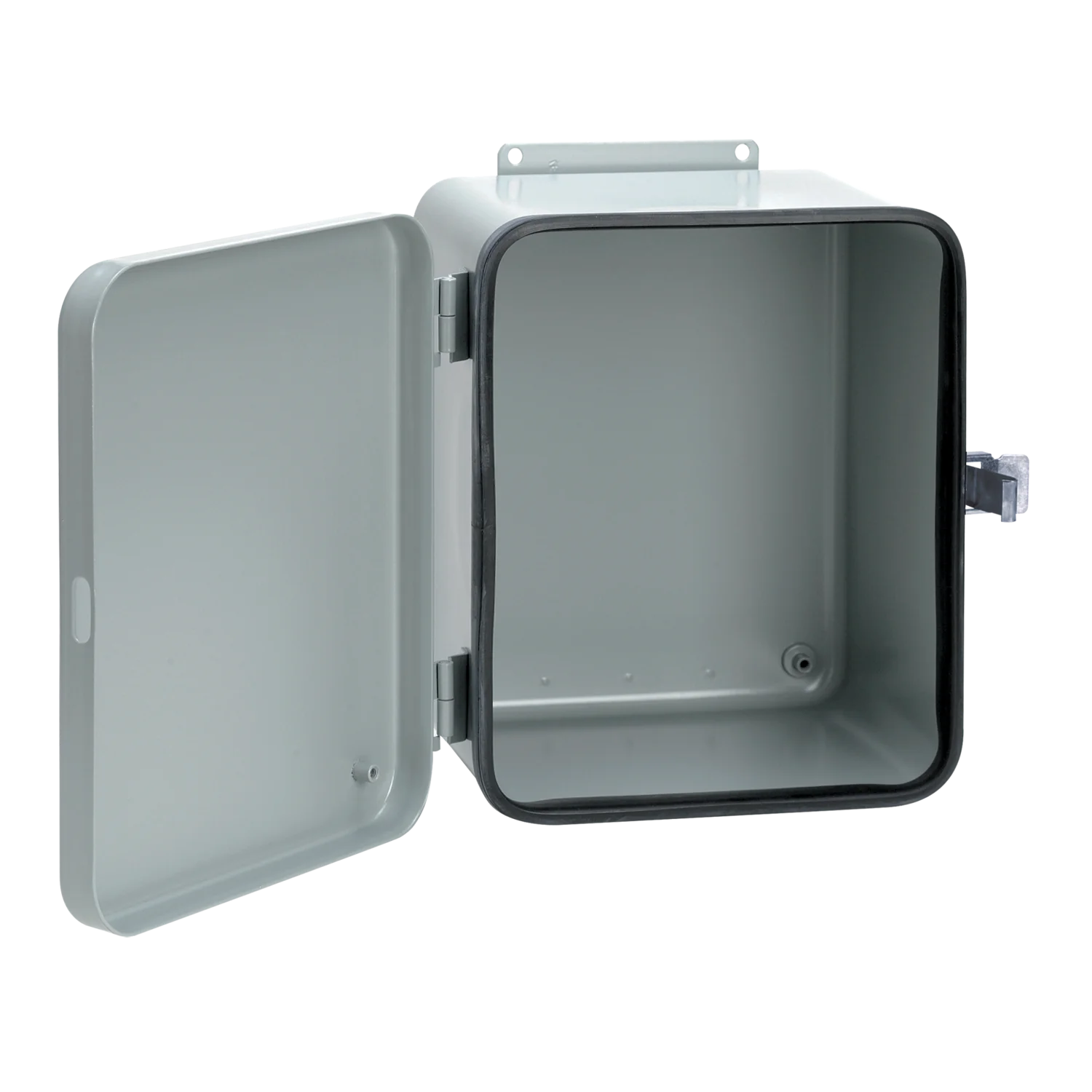

The HOFFMAN A1084DL enclosure features a quick-release latch, mounting brackets, rounded corners and an attractive finish. This enclosure can be used in applications where panel or cover mounting of controls is desired and is ideal for protecting equipment from indoor contaminants. It has a removable door with unique lift-off hinges and external wall-mounting brackets for easy installation.

• Drawn enclosure with no welded seams or sharp corners
• Features a removable door with unique lift-off hinges
• External wall-mounting brackets for easy installation

Product Highlights

The HOFFMAN A1084DL is a steel enclosure with a quick-release latch, ideal for protecting equipment from indoor contaminants.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A1084DL

Technical Specifications

• Article Number: 60010
• Height (H): 10in
• Width (W): 8in
• Depth (D): 4in
• Material: Steel
• Finish: Powder Coated
• Thickness (T): 16ga
• Enclosure Hinge Type: Standard Hinge
• Enclosure Interior Color: Gray
• Enclosure Composition: Painted Steel
• Enclosure Environment Rating: Indoor
• Enclosure Door Type: Solid
• Enclosure Mount Type: Wall Mount
• Component: Steel Enclosure
• Enclosure Number of Doors: 1 Door
• Enclosure NEMA Rating: NEMA Type 12
• Manufacturer: Hoffman
• Type: 12
• Description: Hinged Cover with Quick-Release Latch
• Manufacturers Part Number: A1084DL
• Brand: Hoffman
• Dimension F: 3.59 in
• Dimension T: 4.75 in
• Dimension Y: 0.62 in
• J Dimension: 3.33 in
• Dimension V: 0.25 in
• Panel Size: 8.75 x 6.88 in
• Dimension P: 1 in
• Gauge: 16
• Standard: CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12 And 13,UL 508A Listed; Type 12, 13; File No. E61997
• Cover Type: Removable, Hinged with Quick-Release Latch
• Sub Brand: Hoffman
• Length: 10.3 Inch
• Thickness: 1.52 mm
• Series: A51
• Application: For protecting equipment from indoor contaminants
• UNSPSC: 39121303
