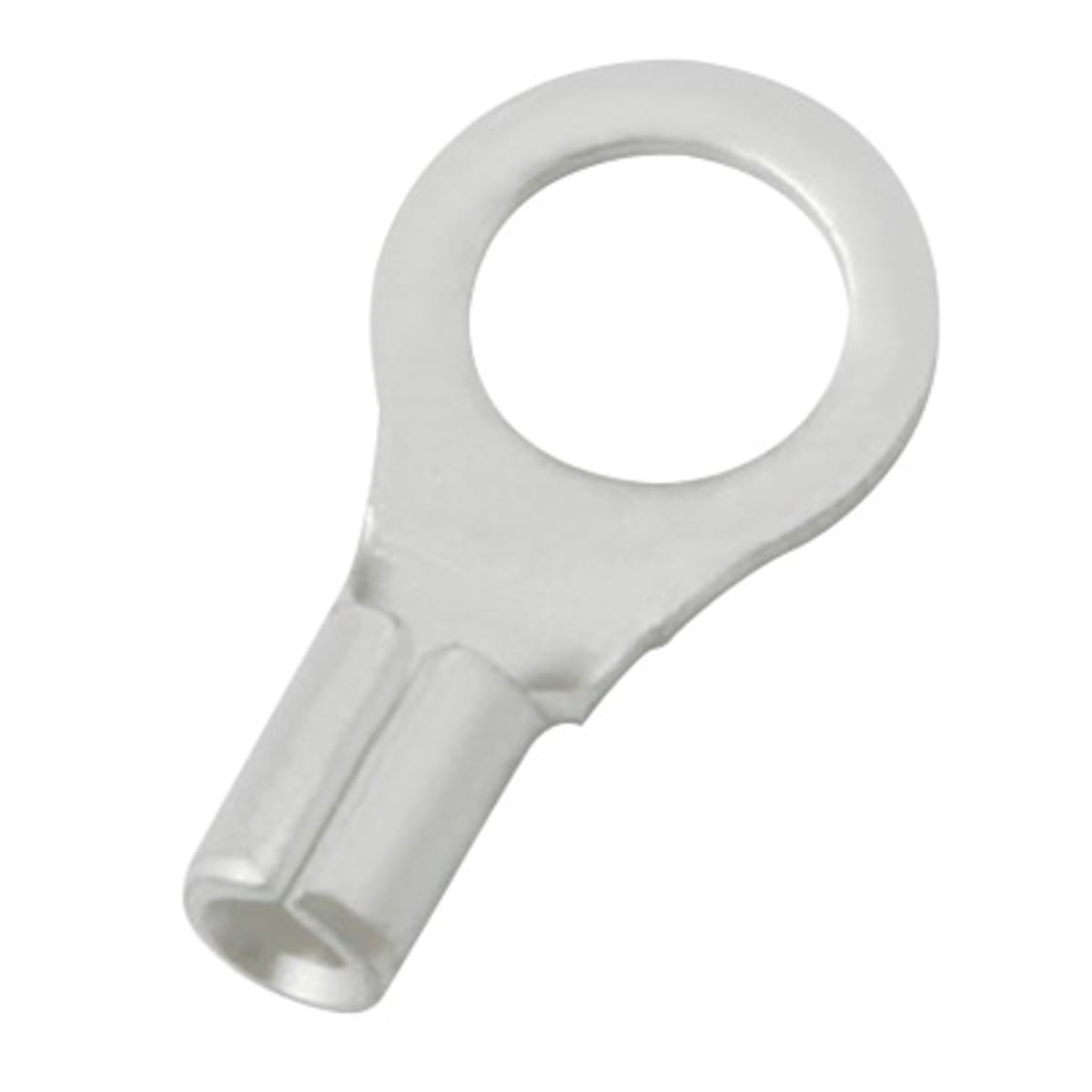

Hoffman 5124W Copper Ring Terminal 12 - 10 AWG #10 Stud 1000/Pack

Product Description

The Hoffman 5124W is a copper ring terminal designed for use with wire sizes from twelve to ten AWG and a stud size of #10. This terminal is packaged in a set of one thousand, suitable for various applications. It is available with or without tin plating for corrosion resistance. The insulation options include vinyl and nylon, with or without an extra support sleeve for double crimp applications.

• High quality solderless terminals for a solid electrical connection.
• Suitable for both stranded and solid wire.
• UL Listed and RoHS compliant, ensuring safety standards.

Product Highlights

This terminal provides reliable performance in various electrical applications. It ensures secure wire connections that meet industry standards.

Product Information

Standard Information

• Brand: Hoffman
• Part #: TERMH5124

Technical Specifications

• Item Name: Ring Terminal
• Material: Copper
• Wire Size: 12 - 10 AWG
• Stud Size: 0.19 Inch
• Barrel Style: Brazed Seam
• Amperage Rating: 50 A
• Inside Diameter: 0.134 Inch
• Outside Diameter: 0.22 Inch
• Barrel Length: 0.236 Inch
• Operating Temperature: 176 °C
• Connection Type: Solderless
• Standards: UL Listed, RoHS Compliant
