HOFFMAN 400277 SPS-30 Spring Pressure Control Pilot Boiler Part

Product Description

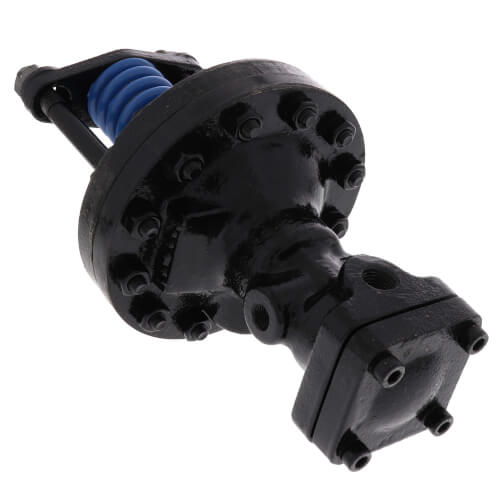

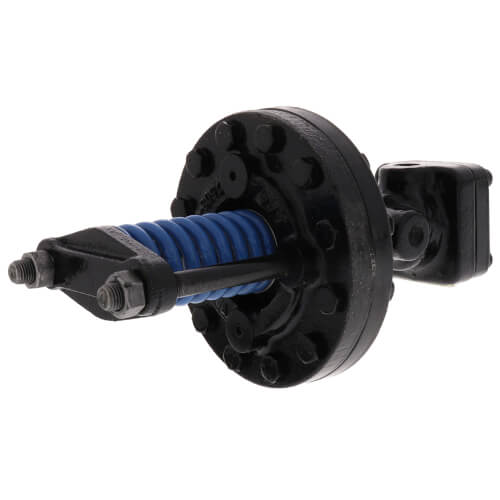

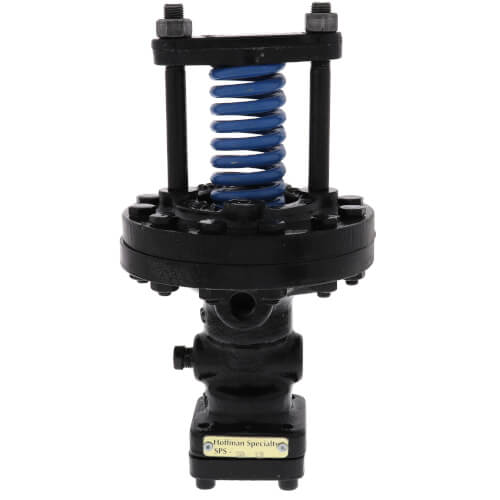

The Hoffman SPS-30 Spring Pressure Control Pilot is engineered to maintain consistent outlet pressure across a variety of industrial applications. This spring pilot model from Hoffman is ideal for systems such as steam to hydronic converters, domestic hot water setups, and manufacturing processes.

• Designed for tight shut-off with a hardened stainless steel disc and seat.
• Packless construction, eliminating seal wear and leakage.
• Includes a travel stop and cover on the diaphragm to prevent overpressurization damage.

Product Highlights

With an outlet pressure range of 2 to 30 psig and a maximum operating pressure of 250 psig, this product ensures reliable performance. The maximum temperature tolerance is noted at 450 degrees Fahrenheit, making it suitable for high-temperature environments.

Technical Specifications

• Material: Steel, Stainless Steel, Cast Iron
• Max Temperature: 450°F
• Pressure Range: 2 to 30 psig
• Max Operating Pressure: 250 psig
• Dimensions: 9 inches x 9 inches x 4 inches
• Weight: 7 pounds
