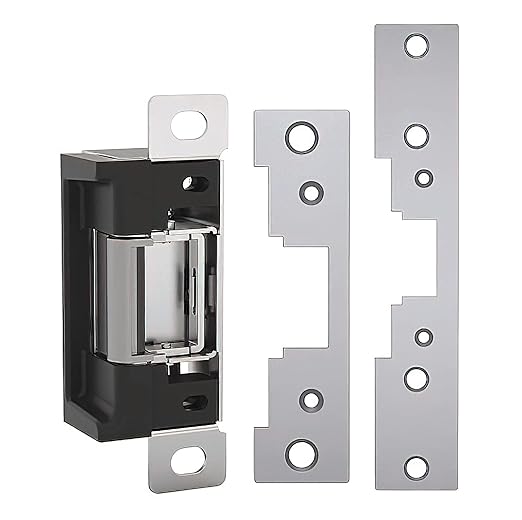

HES 7000 Electric Strike

Product Description

The HES 7000 Series Electric Strike is designed for preloaded doors. It features an adjustable mechanism that allows simple alignment with the latchbolt position. This strike supports cylindrical latchbolts with a throw of up to five-eighths inches and rim exit latchbolts with a throw of up to three-quarters inches. Built with stainless steel, it provides durability and tamper resistance.

• Stainless steel material
• Tamper resistant design
• Field selectable for fail secure or fail safe

Product Highlights

This electric strike can handle preload up to fifteen pounds when configured for fail secure operation.

Product Information

Standard Information

• Brand: HES
• MPN: 7000

Technical Specifications

• Static strength (791 and 792 options): 1,500 lbs.
• Dynamic strength (791 and 792 options): 70 ft-lbs.
• Static strength (783S, 786S, and 789S options): 1,000 lbs.
• Dynamic strength (783S, 786S, and 789S options): 50 ft-lbs.
• Endurance: 1,000,000 cycles
• Strike body depth: 1-11/16 inches
• Frame application: Metal or Wood
• Input Voltage: 12 V AC, 12 V DC, 24 V AC, 24 V DC
• Compatible Door Frame Type: Metal, Wood
• Compatible Door Lock Type: Cylindrical, Rim Exit
• Door Handling: Non Handed
• Electric Strike Assembly: Body with Faceplate
• Holding Strength: 1,500 pounds
• Faceplate Width: 1.25 inches
• Keeper Depth: 0.13 inches
• Product Material: Stainless Steel
