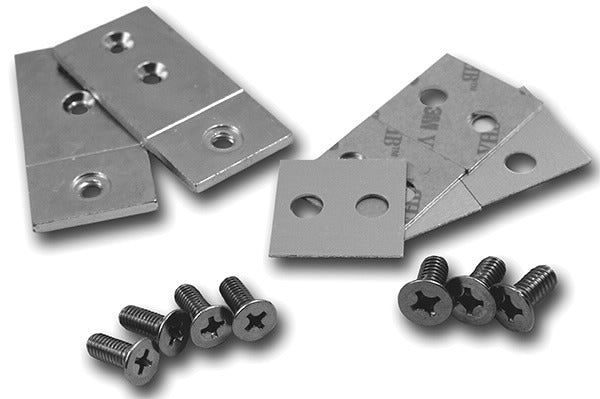

Hes 152HES Universal Mounting Tabs

Product Description

The HES 152HES is a set of universal mounting tabs designed to support the installation of HES electric strikes in the access control industry. These tabs provide a reliable mechanical anchor point during strike installation, ensuring proper alignment and secure fitment within the door frame prep. At 3 inches in length and 1.25 inches in width, the 152HES is a compact hardware component suited for use by access control technicians and commercial door hardware installers working with HES electric strike products.

The 152HES mounting tabs are intended for use in commercial access control installations where HES electric strikes require supplemental mounting hardware. They are typically installed during new construction or retrofit projects involving electric strike assemblies in hollow metal or wood door frames. Each order contains one set of tabs, making them easy to order in quantities matching the number of strikes on a job.

Key Features

• Universal tab design compatible with HES electric strike installation applications
• Compact profile at 3 inches long and 1.25 inches wide for tight frame clearances
• Low-profile 0.3-inch height minimizes interference with door hardware alignment
• Lightweight at 0.3 pounds, simplifying overhead and jamb-side installation work
• Sold individually, allowing precise quantity ordering per job

Compatibility

Designed as an OEM-style mounting accessory for use with HES electric strike products in commercial access control door hardware applications.

Installation Notes

Installation should be performed by a qualified access control or commercial door hardware technician. De-energize the electric strike and any associated access control circuitry before beginning mechanical work. Standard hand tools are sufficient for tab installation; follow the strike manufacturer documentation for proper placement and fastener requirements. Ensure the door frame prep is clean and free of obstructions before securing the tabs in place.
