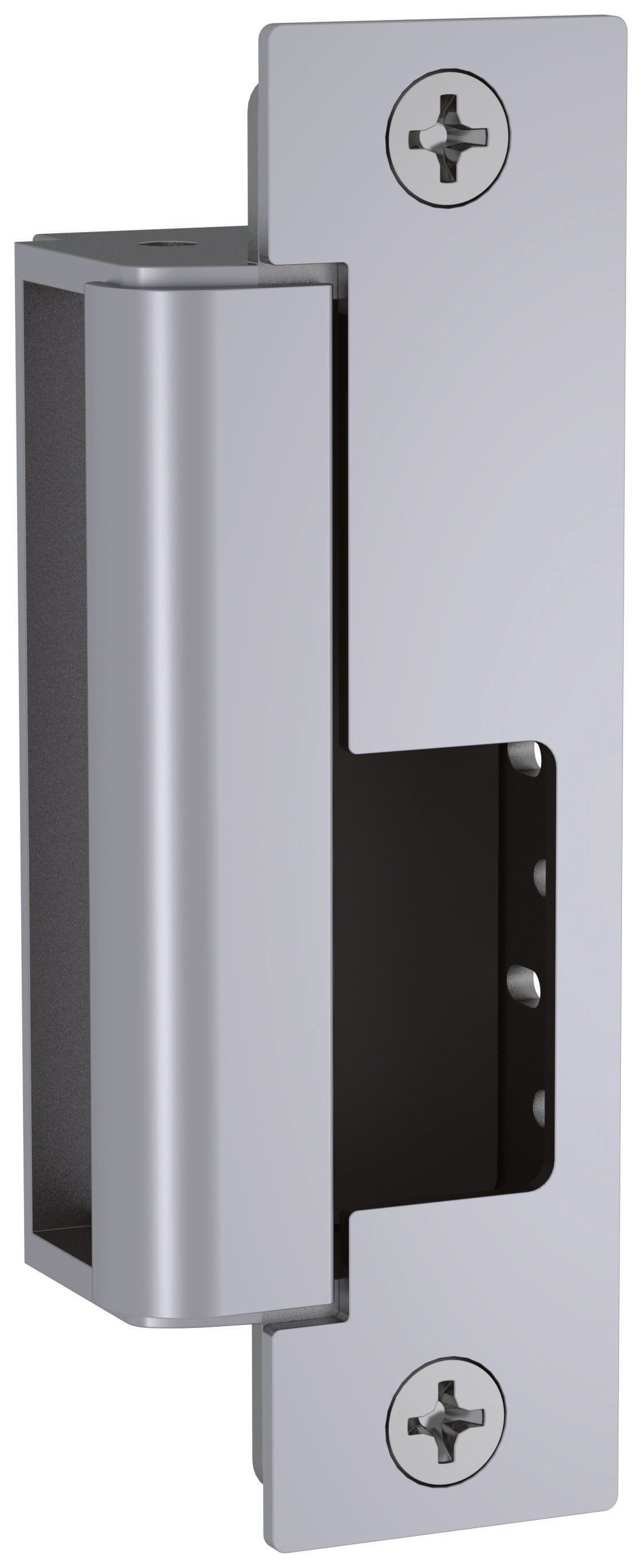

Hes 1500630 Electric Strike Body 12 24 Volt Dc

Product Description

The HES 1500630 is a 12/24 volt DC electric strike body finished in satin stainless steel, designed for use in access control and electro-mechanical door locking applications. Electric strike bodies replace or complement the fixed strike plate in a door frame, allowing the latch bolt to be released remotely by an access control signal. This unit accepts both 12 and 24 volt DC input, giving installers flexibility across a wide range of access control panels and power supplies. The satin stainless steel finish provides durability and corrosion resistance in high-traffic commercial door openings. Typically installed by licensed locksmiths, access control technicians, or low-voltage electricians.

The 1500630 is suited for commercial and light industrial door hardware installations where electric latch retraction or fail-safe/fail-secure door control is required. It fits into standard door frame mortise preparations and pairs with access control systems, card readers, keypads, and intercoms. The unit is sold individually and is appropriate for new installations as well as retrofit or replacement work in existing access control deployments.

Key Features

• Dual-voltage operation at 12 or 24 volts DC for compatibility with a wide range of access control power supplies
• Satin stainless steel finish for corrosion resistance and durability in commercial environments
• Electric strike body design integrates into standard door frame preparations
• Compact footprint: 10.4 inches long, 3.4 inches wide, 2.2 inches tall
• Lightweight construction at 1.1 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-install electric strike body for standard commercial door frame mortise applications accepting 12 or 24 volt DC access control systems.

Installation Notes

Installation should be performed by a licensed locksmith, access control technician, or low-voltage electrician familiar with door hardware and local building codes. Power down the access control panel and disconnect power to the strike circuit before beginning work. Verify that the door frame preparation matches the dimensions of the strike body prior to mounting. Consult local electrical and building codes, including NEC low-voltage wiring requirements, before finalizing the installation.
