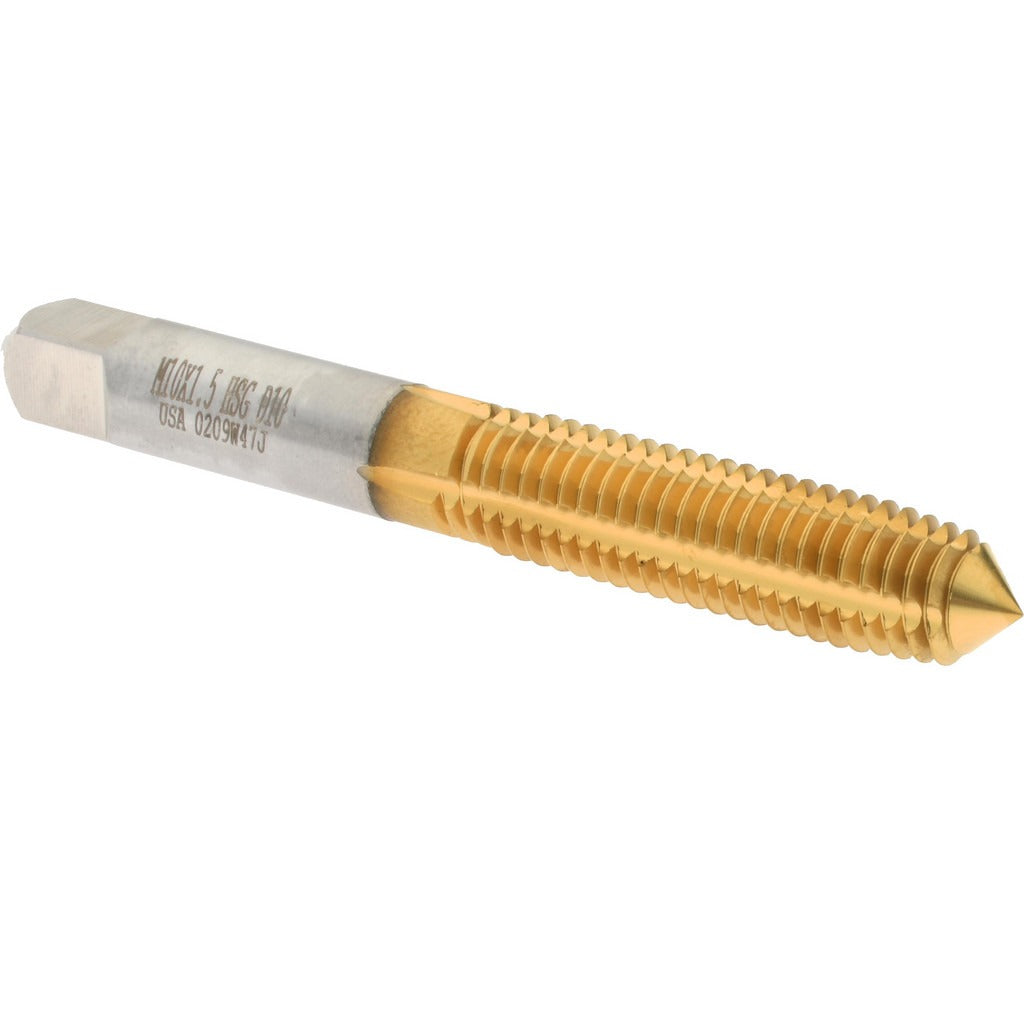

Hertel K010460AS25 Thread Forming Tap M10x1.5 Plug Tin

Product Description

The HERTEL K010460AS25 is a metric thread forming tap designed for through-hole threading applications in ferrous and non-ferrous materials. Unlike cutting taps, this plug-style forming tap displaces material rather than cutting it, producing stronger, chip-free threads. The tap is manufactured from high-speed steel with a titanium nitride (TiN) coating that increases surface hardness and extends tool life. It carries a D10 thread limit and is configured with a right-hand thread direction. The 3-5 chamfered threads on the plug chamfer provide a controlled lead-in for accurate thread forming. This tool is installed and used by machinists and tool-and-die professionals working in production or maintenance environments.

This tap is suited for through-hole threading operations where chip evacuation is not a concern and where thread strength is a priority. The M10x1.5 metric thread size makes it a common choice for general-purpose fastener applications in automotive, machinery, and industrial fabrication settings. The TiN coating supports use at higher speeds compared to uncoated HSS, reducing friction and improving thread quality in a range of materials.

Key Features

• Thread forming design displaces material for chip-free, stronger threads
• Titanium nitride (TiN) coating for extended tool life and reduced friction
• High-speed steel construction for durability in demanding applications
• Plug chamfer with 3-5 chamfered threads for controlled lead-in
• D10 thread limit for consistent tolerance control
• Right-hand thread direction, M10x1.5 metric thread size

Compatibility

Designed as a standard M10x1.5 metric thread forming tap suitable for use with compatible tap holders and machine spindles accepting a 0.381-inch shank diameter in through-hole threading setups.

Installation Notes

This tap should be installed by qualified machinists using appropriate tap holders or CNC tooling rated for the shank diameter. Ensure the workpiece is securely fixtured and the correct cutting fluid or forming lubricant is applied before operation. Verify spindle speed and feed rate are appropriate for the workpiece material and tap size before running. Inspect the tap for wear or damage before each use to avoid thread quality issues or tool breakage.
