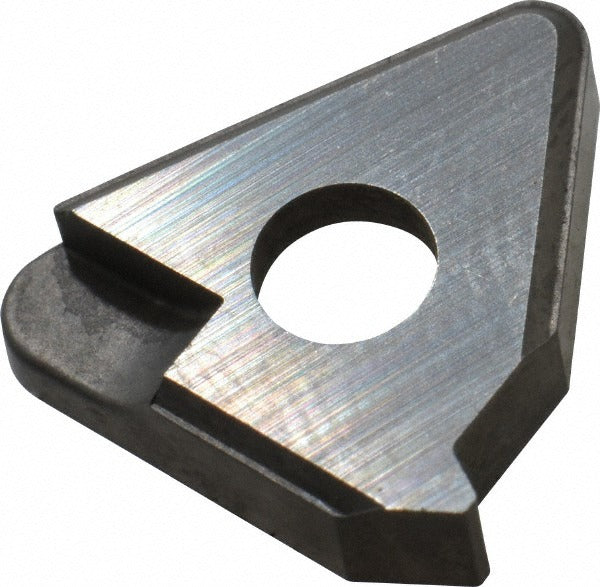

Hertel H08700932 Indexable Anvil 0.375 in Insert

Product Description

The HERTEL H08700932 is an indexable anvil designed to support and seat indexable inserts in turning and boring toolholders. The anvil provides a stable, hardened seating surface that protects the toolholder pocket from cutting forces and extends toolholder service life. It is sized for inserts with a 0.375 inch inscribed circle and a toolholder insert size code of 16. The H08700932 is configured for external right hand and internal left hand orientations, covering both OD turning and ID boring applications. Weighing 0.12 pounds, this is a compact replacement consumable maintained as a standard shop supply by machinists and tool crib personnel.

This anvil is used in CNC turning centers, manual lathes, and boring bars where indexable insert toolholders require a replaceable seat. It suits both external right hand turning operations and internal left hand boring operations. The helix angle of -0.5 degrees corresponds to the insert geometry and toolholder pocket specification it is designed to serve. Shops running high-volume turning operations typically stock anvils as a routine consumable alongside their insert inventory to minimize downtime during insert changes or pocket damage events.

Key Features

• 0.375 inch insert inscribed circle for consistent insert seating and support
• Configured for external right hand and internal left hand orientations
• Toolholder insert size code 16 compatibility
• -0.5 degree helix angle matches corresponding insert and pocket geometry
• Lightweight at 0.12 pounds for easy handling and stocking

Compatibility

Designed as an OEM-style replacement anvil for indexable turning and boring toolholders requiring a 0.375 inch inscribed circle insert seat with a toolholder insert size code of 16.

Installation Notes

Anvil replacement is performed by machinist or tool crib personnel. Before replacing the anvil, power down and lock out the machine per facility LOTO procedures. Remove the existing insert and any chip buildup from the pocket before seating the new anvil. Ensure the anvil seats flush and fully in the pocket before reinstalling the insert and clamping screw to the toolholder manufacturer torque specification.
