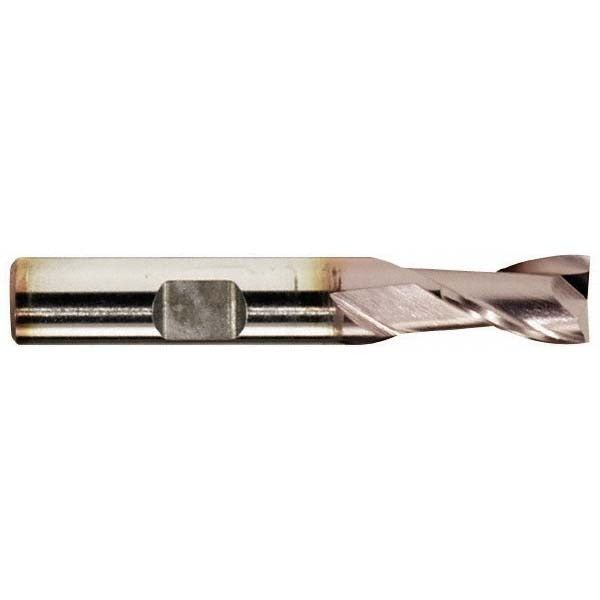

Hertel EF080032 Square End Mill 1/2 in 2 Flute Hss Ticn

Product Description

The HERTEL EF080032 is a square end mill designed for general-purpose milling in ferrous and non-ferrous materials. It features a 0.5 inch cutting diameter, a 2 inch length of cut, and a 0.5 inch shank diameter with a 4 inch overall length. Constructed from high speed steel with a TiCN (titanium carbonitride) finish, this end mill offers improved surface hardness and wear resistance over uncoated HSS tooling. The two-flute geometry and 30-degree helix angle promote efficient chip evacuation, making it suitable for slotting and peripheral milling operations. Centercutting capability allows plunge entry into the workpiece.

This end mill is suited for use in manual mills, knee mills, and CNC machining centers where two-flute HSS tooling is specified. It is commonly used in job shops, maintenance departments, and toolrooms for cutting steel, aluminum, brass, and similar materials. The right-hand cut and right-hand spiral flute configuration is the standard orientation for most vertical milling setups. A single-end design means the cutting end is on one side only.

Key Features

• 0.5 inch cutting diameter with 2 inch length of cut for deep slotting and profiling
• High speed steel construction with TiCN finish for extended tool life over bare HSS
• 30-degree helix angle promotes smooth chip flow and reduced cutting forces
• Centercutting design allows direct plunge milling without a pre-drilled hole
• Two-flute geometry maximizes chip clearance in slotting applications
• Right-hand cut, right-hand flute — standard orientation for vertical mill spindles

Compatibility

Designed as a standard 0.5 inch shank end mill compatible with ER collets, end mill holders, and other toolholding systems sized for a 0.5 inch straight shank.

Installation Notes

Installation is performed by machinists or toolroom technicians using an appropriate collet or end mill holder. Always confirm spindle and toolholder are clean and free of debris before seating the shank. Power down and lock out the machine spindle before changing tooling. Do not exceed the tool manufacturer's recommended speeds and feeds for the material being cut.
