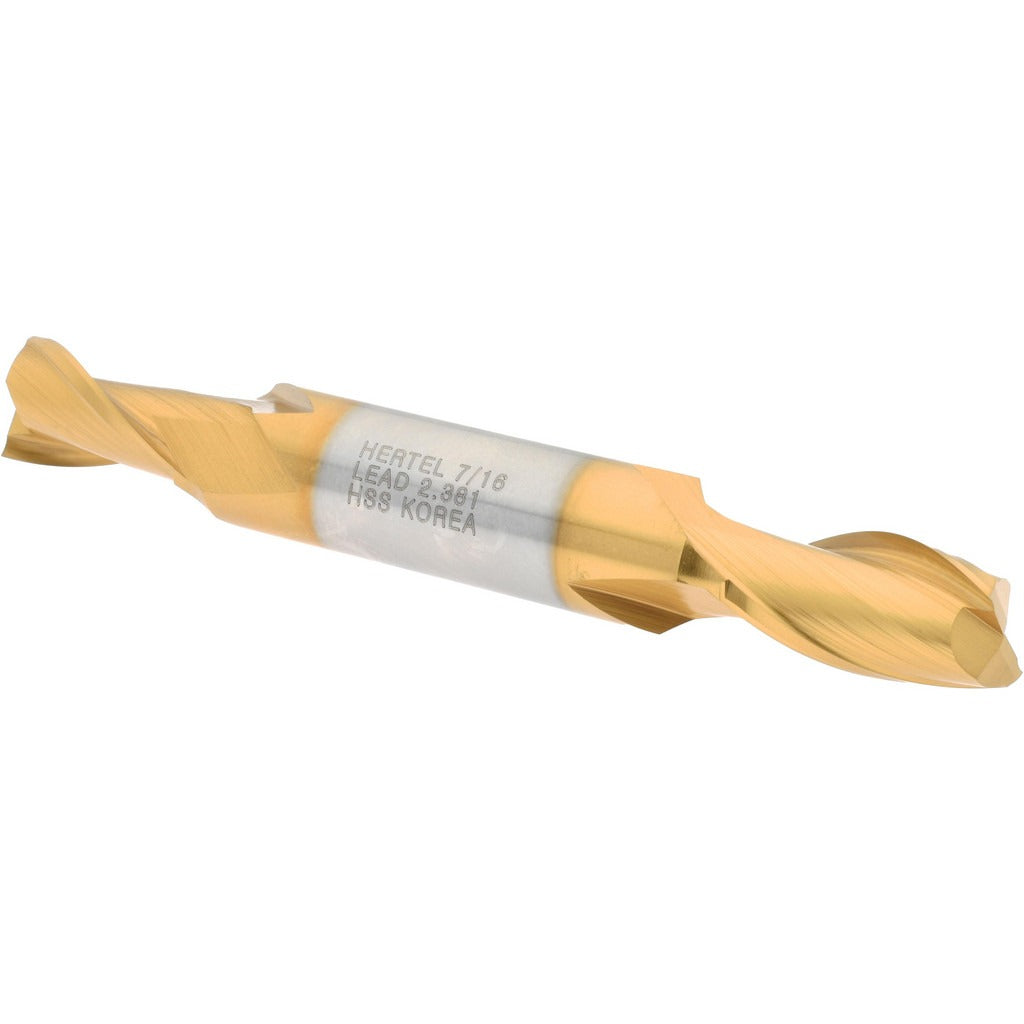

Hertel E8050028 Square End Mill 7/16 in 2 Flute Hss Tin

Product Description

The HERTEL E8050028 is a double-end square end mill designed for general-purpose milling operations in ferrous and non-ferrous materials. Manufactured from M7 high speed steel with a TiN (titanium nitride) finish, it offers improved surface hardness and tool life compared to uncoated HSS tooling. The cutter measures 7/16 inch in diameter with a 13/16 inch length of cut, a 1/2 inch shank diameter, and a 3-3/4 inch overall length. With 2 flutes, a 30-degree helix angle, and a spiral flute design, it is suited for slotting, profiling, and peripheral milling where chip clearance and surface finish both matter. This is a centercutting tool, allowing plunge entry into workpieces.

This end mill is used in manual and CNC vertical milling machines, knee mills, and machining centers in tool and die shops, production shops, and maintenance environments. The double-end configuration provides two usable cutting ends, extending the service life of the tool before replacement. Right-hand cut and right-hand flute geometry follow standard spindle conventions on the vast majority of milling machines. The regular-length designation makes it appropriate for standard reach applications where rigidity is preferred over extended projection.

Key Features

• M7 high speed steel construction for toughness and wear resistance in general milling applications
• TiN finish increases surface hardness and reduces friction at the cutting edge
• Double-end design provides two cutting ends per tool
• 30-degree helix angle with spiral flutes promotes efficient chip evacuation
• Centercutting geometry allows direct plunge milling without pre-drilling
• Right-hand cut, right-hand flute — compatible with standard milling machine spindle direction

Compatibility

Designed as a standard shank end mill for use in 1/2 inch collets, end mill holders, or Weldon-style tool holders on vertical milling machines and CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist or toolroom professional. Power down and lock out the spindle before securing or removing tooling. Ensure the shank is fully seated in the holder with adequate grip length to prevent pullout under cutting loads. Inspect the cutting edges and TiN coating for chips or wear before each use, as damaged tooling can cause workpiece defects or tool breakage.
