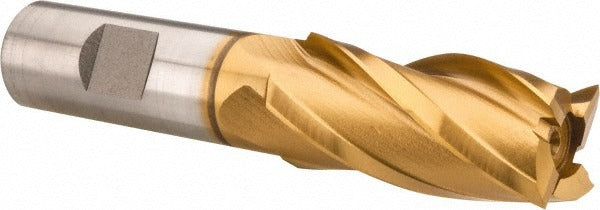

Hertel E8031911 Square End Mill 7/8 Inch 4 Flute Hss

Product Description

The HERTEL E8031911 is a single-end square end mill designed for milling operations in metal-cutting applications. Built from M7 high speed steel with a titanium nitride (TiN) finish, it provides added surface hardness and wear resistance compared to uncoated HSS tooling. The cutter measures 0.875 inches in diameter with a 1.875-inch length of cut, a 0.75-inch shank diameter, and a 4.125-inch overall length. Four spiral flutes with a 30-degree helix angle promote efficient chip evacuation during side milling, slotting, and profiling operations. This tool is installed and operated by machinists and CNC machine operators working in job shops and production environments.

This end mill is suited for general-purpose milling in ferrous and non-ferrous materials where an HSS tool is specified. The regular-length geometry and 0.875-inch cutting diameter make it appropriate for conventional milling operations including peripheral milling and shallow slotting. Right-hand cut and right-hand flute orientation are standard for conventional spindle setups. This is not a centercutting design, so plunge entry into solid material is not recommended without a pre-drilled entry point.

Key Features

• M7 high speed steel construction for toughness in interrupted cuts
• TiN coating increases surface hardness and extends tool life in abrasive materials
• 4 spiral flutes with 30-degree helix angle for balanced chip flow
• Right-hand cut, right-hand flute — compatible with standard spindle rotation
• Non-centercutting design — requires a pre-drilled entry for plunge operations
• Regular-length geometry for rigid setups with minimal overhang

Compatibility

Designed as an OEM-style replacement or direct substitute for 3/4-inch shank square end mills used in standard R8, CAT, BT, or collet-style toolholders accepting a 0.75-inch shank diameter.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Secure the shank firmly in a matched collet or end mill holder, verifying runout before initiating a cut. Do not use this tool for plunge entry into solid material, as it is not centercutting.
