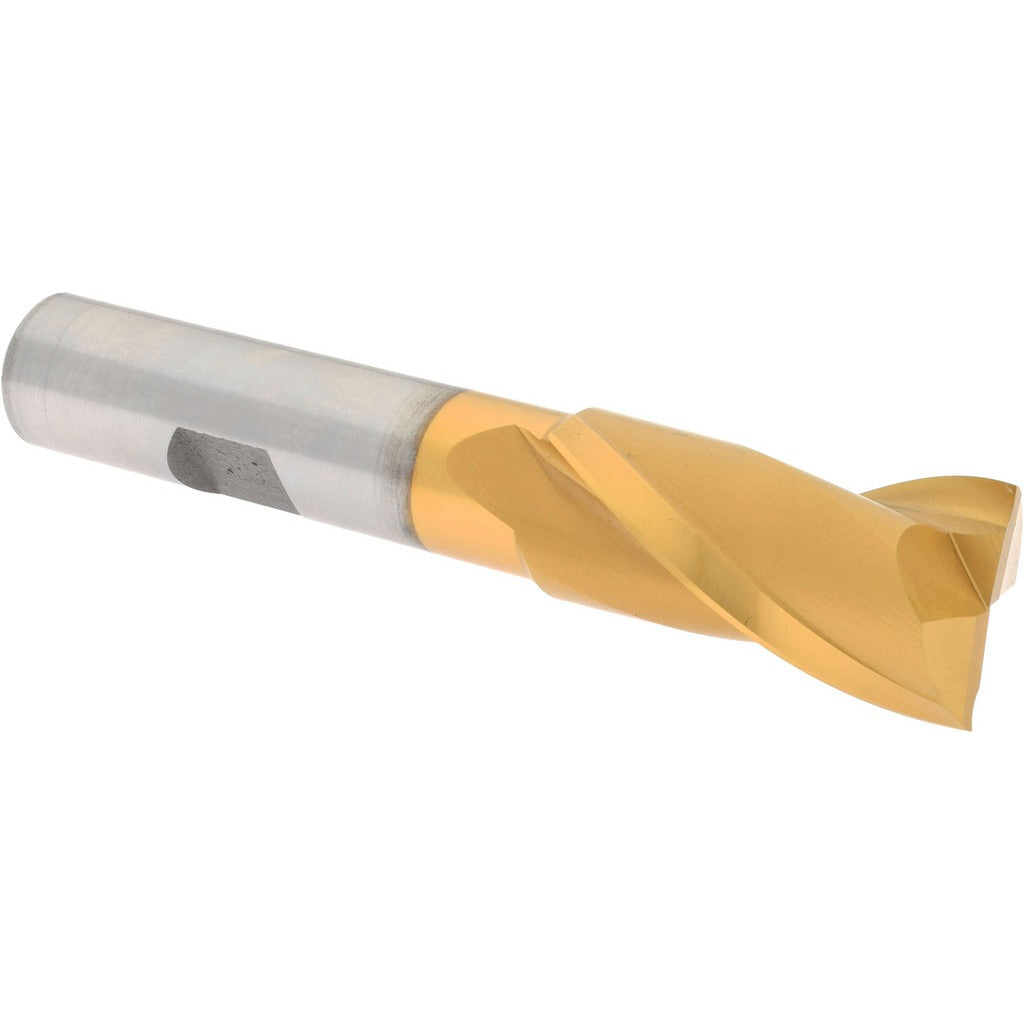

Hertel E8030903 Square End Mill 11/16 in 2 Flute Hss Tin

Product Description

The HERTEL E8030903 is a square end mill designed for general-purpose milling operations in metal fabrication, machining centers, and manual mill setups. Built from M7 high speed steel with a titanium nitride (TiN) finish, it offers good wear resistance for cutting ferrous and non-ferrous materials. The cutter measures 11/16 inch (0.6875 inch) in diameter with a 1-5/16 inch length of cut and a 1/2 inch shank diameter. Overall length is 3-5/16 inches. The 30-degree spiral flute geometry promotes chip evacuation and smooth cutting action across a range of workpiece materials.

This end mill is suited for slotting, profiling, and peripheral milling in job shop and production environments. Its center-cutting design allows plunge entry, making it practical for operations where the tool must enter the workpiece axially before moving laterally. Right-hand cut and right-hand flute orientation are standard for conventional CNC and manual milling machines. The regular-length configuration fits common tool holders and collets with a 1/2 inch bore.

Key Features

• M7 high speed steel construction for durability in general-purpose cutting
• TiN coating improves surface hardness and extends tool life compared to uncoated HSS
• Center-cutting capability allows direct plunge entry into the workpiece
• 30-degree helix angle promotes efficient chip flow and reduces cutting forces
• Right-hand cut and right-hand flute for use in standard milling machine spindles
• 2-flute design provides clearance for chip removal in slotting applications

Compatibility

Designed for use in standard milling machines, machining centers, and CNC routers equipped with a 1/2 inch collet or end mill holder. Suitable for cutting aluminum, mild steel, alloy steel, and similar machinable materials consistent with M7 HSS tooling ratings.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and locked out per applicable machine safety procedures. Secure the shank fully within the collet or tool holder to the recommended engagement depth before tightening. Inspect the cutting edges and TiN coating for chips or wear before each use. Do not exceed the tool manufacturer's recommended feed and speed parameters for the workpiece material.
