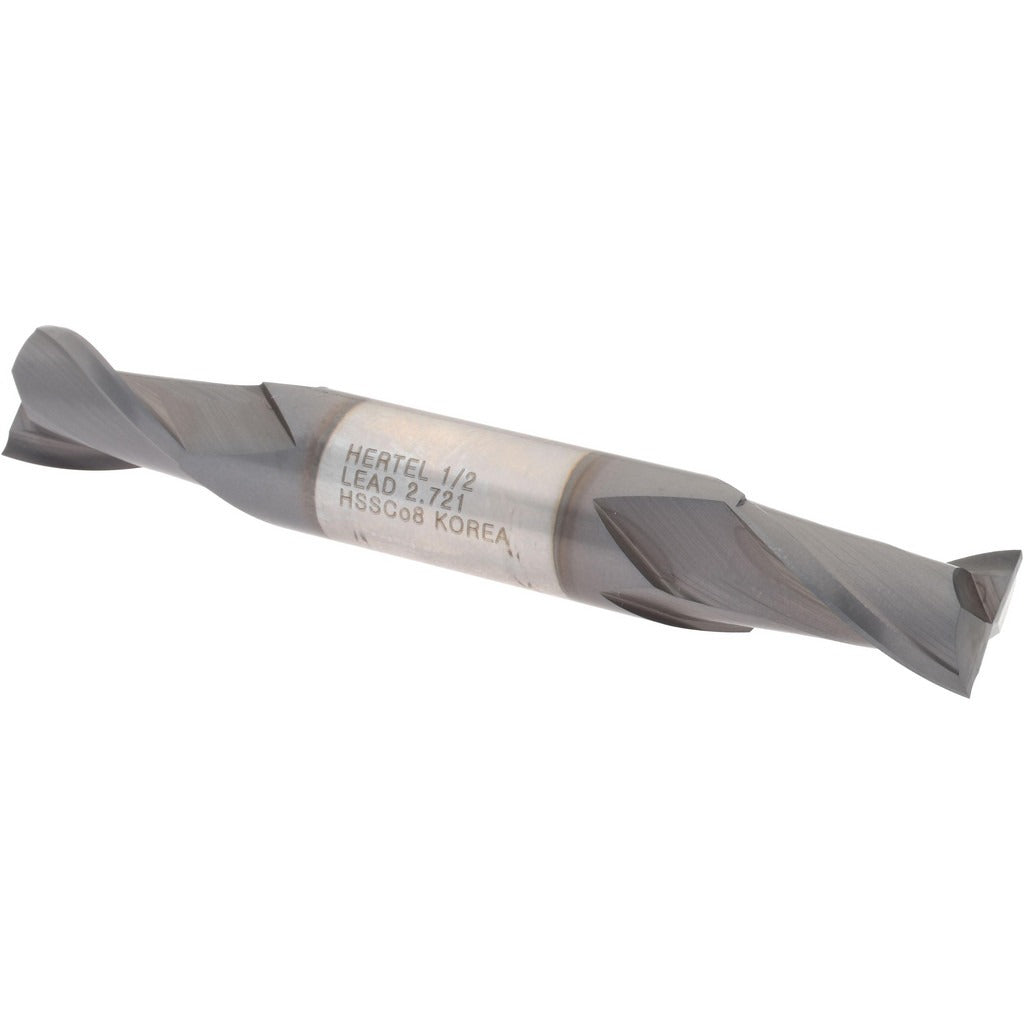

Hertel E7050032 Square End Mill 0.5 in Cobalt Ticn 2 Flute

Product Description

The HERTEL E7050032 is a double-end square end mill designed for precision milling in ferrous and non-ferrous metals. Built from M42 cobalt high-speed steel, it delivers heat and wear resistance well beyond standard HSS tooling. The TiCN (titanium carbonitride) coating further extends tool life and reduces friction at the cutting edge. With a 0.5 inch diameter, 13/16 inch length of cut, and a 30-degree spiral helix, this end mill is optimized for slot milling, shoulder milling, and profiling operations on machining centers and manual mills. It is centercutting, allowing direct plunge entry into the workpiece without a pre-drilled hole.

This end mill is suited for general-purpose metal removal in job shops, production machining, and maintenance environments. The double-end configuration provides two usable cutting ends, extending tool value in high-use applications. The 0.5 inch shank diameter fits standard ER collets, end mill holders, and milling chucks. The regular-length 3-3/4 inch overall length gives adequate reach for most conventional setups without sacrificing rigidity. A right-hand cut and right-hand flute geometry is standard for conventional milling machine spindles.

Key Features

• M42 cobalt construction for elevated heat resistance and longer tool life vs. standard HSS
• TiCN coating reduces friction and increases surface hardness at the cutting edge
• Centercutting design allows direct plunge milling without pilot drilling
• 30-degree helix angle promotes smooth chip evacuation and reduces chatter
• Double-end design yields two cutting ends per tool
• Right-hand cut, right-hand flute — compatible with standard CNC and manual mill spindle rotation

Compatibility

Designed as an OEM-style replacement or direct-fit tooling option for any milling machine or machining center accepting a 0.5 inch shank end mill via collet chuck, end mill holder, or milling chuck.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and locked out before inserting or removing tooling. Secure the shank to the minimum recommended engagement depth in the holder — typically no less than the shank diameter — to prevent pullout under load. Verify runout with a dial indicator before cutting to maximize tool life and surface finish quality.
