Hertel E6062012 Ball End Mill 0.1875 in 4 Flute Carbide Tin

Product Description

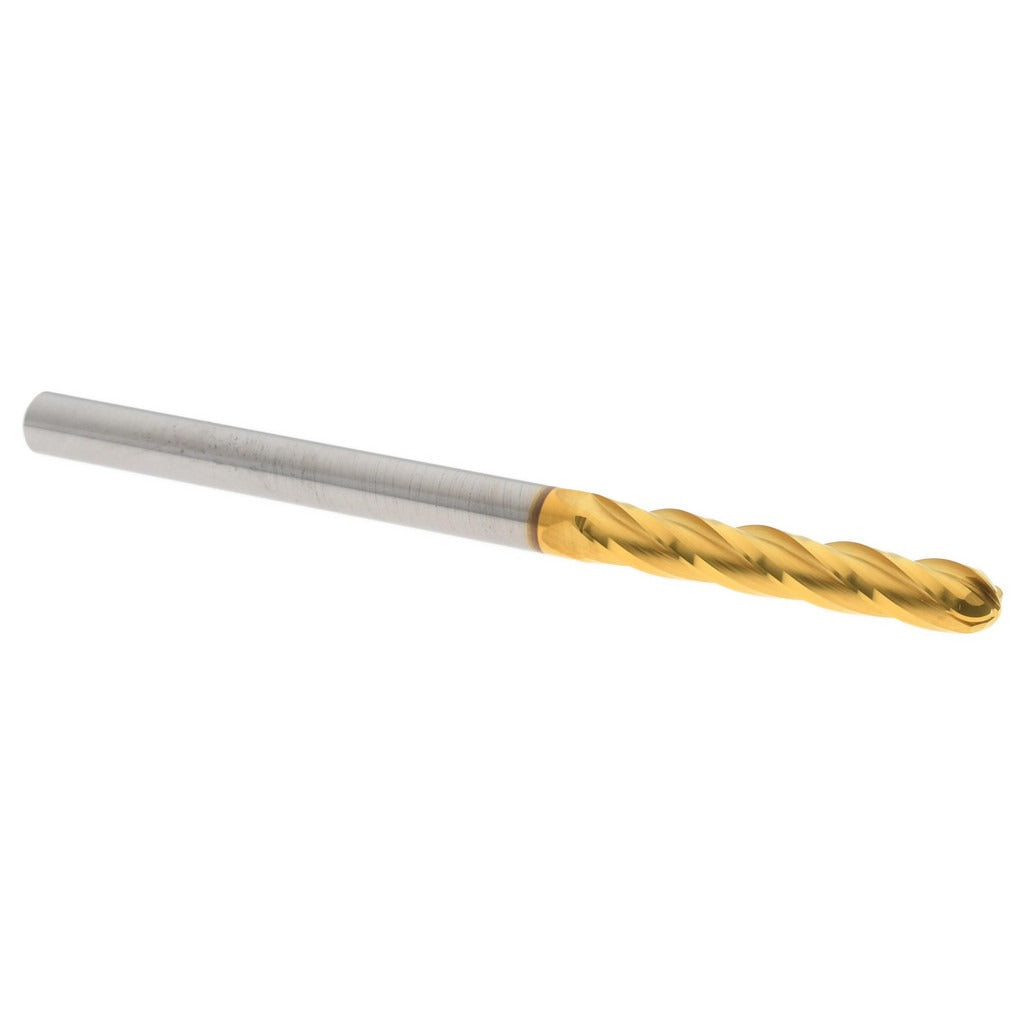

The HERTEL E6062012 is a single-end ball end mill designed for precision milling operations in metalworking and machining environments. Manufactured from solid carbide and coated with titanium nitride (TiN), this tool delivers hardness and wear resistance needed for cutting ferrous and non-ferrous materials. It features a 0.1875 inch (3/16 inch) mill diameter, a 1.125 inch length of cut, and a 3 inch overall length. The 4-flute geometry supports efficient chip evacuation while maintaining a quality surface finish. This tool is installed and run by machinists and CNC operators working in production and job-shop environments.

The E6062012 is suited for contour milling, slotting, profiling, and 3D surfacing operations on machining centers and manual mills. With a right-hand cutting direction and right-hand flute direction, it is compatible with standard spindle configurations. The 3/16 inch shank diameter fits common collets and end mill holders. It is appropriate for use on hardened steels, alloy steels, stainless, aluminum, and similar materials where a TiN-coated solid carbide tool is specified.

Key Features

• Solid carbide construction provides rigidity and wear resistance in demanding cutting applications
• TiN coating reduces friction and extends tool life compared to uncoated carbide
• 4-flute design balances chip clearance with surface finish quality
• Ball end geometry enables contour milling, radii, and 3D profiling passes
• Single-end configuration with right-hand cut and right-hand helix
• Consistent 3/16 inch shank and mill diameter simplifies toolholder selection

Compatibility

Designed for use in standard end mill holders and collet chucks accepting a 3/16 inch shank diameter. Suitable for CNC machining centers, vertical mills, and similar machine tools configured for right-hand rotation.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down or locked out before loading or changing tooling. Seat the shank fully into the collet or end mill holder and torque the retention mechanism per the toolholder manufacturer specification. Verify runout with a dial indicator before beginning production cuts, and confirm feeds, speeds, and depth of cut are appropriate for the workpiece material and machine capability.
