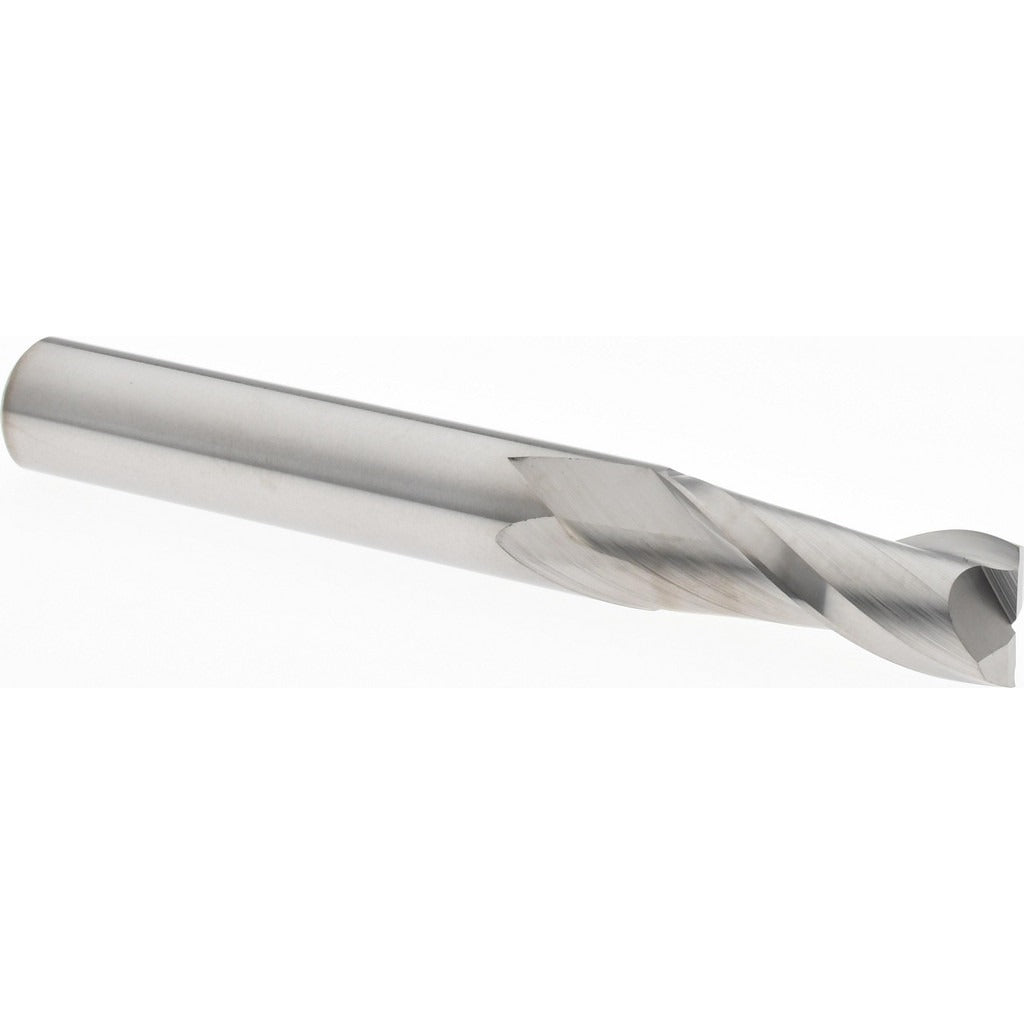

Hertel E599924686 Square End Mill 8mm 2 Flute Carbide

Product Description

The HERTEL E599924686 is a solid carbide square end mill designed for precision milling operations in metal, composites, and other hard materials. With an 8 mm (0.315 inch) cutting diameter and a 20 mm (0.787 inch) length of cut, this two-flute tool delivers clean square shoulders and flat-bottom profiles. The 30-degree right-hand helix promotes efficient chip evacuation and smooth cutting action. The bright, uncoated micrograin carbide construction provides rigidity and edge retention in a wide range of general-purpose milling applications. A licensed machinist or CNC operator is the typical end user for this tool.

This end mill is suited for single-end milling applications in job shop, production, and toolroom environments. The 8 mm shank diameter matches the cutting diameter for direct installation in standard ER collet chucks, milling chucks, or end mill holders. Its regular-length profile and centercutting capability allow for plunge entry as well as peripheral and slot milling. The right-hand cutting direction suits standard spindle rotation on vertical and horizontal milling machines and CNC machining centers.

Key Features

• Solid micrograin carbide construction for superior edge retention and rigidity
• 2-flute geometry supports efficient chip clearance in slotting and profiling cuts
• 30-degree right-hand helix angle promotes smooth cutting action and reduced chatter
• Centercutting design enables plunge milling capability
• Bright, uncoated finish suited for use with or without coolant on a broad range of workpiece materials
• Single-end configuration with matched shank and cutting diameter for straightforward tool holding

Compatibility

Designed as a standard 8 mm shank square end mill compatible with ER collet chucks, milling chucks, and end mill holders sized for 8 mm shank tooling on vertical mills, horizontal mills, and CNC machining centers.

Installation Notes

Install and remove end mills only with the machine spindle fully stopped and locked. Seat the shank to the full recommended insertion depth in the holder and tighten the collet nut or set screw to the holder manufacturer's specification using appropriate wrenches. Inspect the cutting edges and shank for chips or runout before each use. Follow your facility's tooling safety procedures and applicable OSHA machining standards when operating milling equipment.
