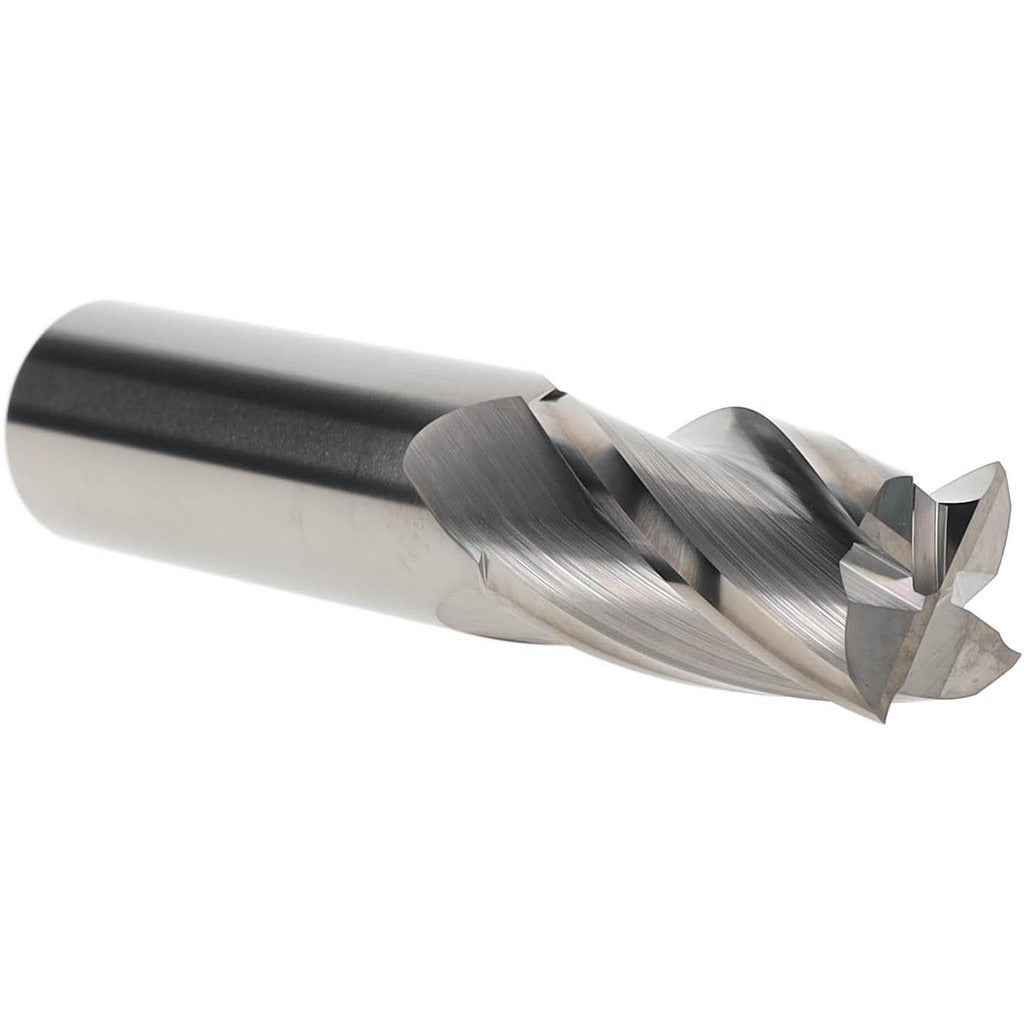

Hertel E599924674 Square End Mill 22mm 4 Flute Carbide

Product Description

The HERTEL E599924674 is a solid carbide square end mill designed for precision material removal in milling applications. With a 22 mm (0.8661 inch) cutting diameter and a 38 mm (1.4961 inch) length of cut, this tool delivers consistent results in a standard regular-length configuration. The four-flute design with a 30-degree helix angle and right-hand cutting and flute direction suits a wide range of ferrous and non-ferrous machining operations. Micrograin carbide construction provides the hardness and edge retention needed for demanding cuts. The bright, uncoated finish allows machinists to inspect tool condition and re-sharpen as needed.

This end mill is suited for use in vertical and horizontal milling machines, machining centers, and CNC setups requiring a 22 mm shank. The 102 mm overall length fits standard toolholders accepting a 22 mm (0.8661 inch) shank diameter. Single-end geometry makes it a direct, consumable cutting tool for slot milling, profiling, and peripheral cuts in shop and production environments. Installation and use are performed by machinists and toolroom professionals familiar with collet or end mill holder setups.

Key Features

• 22 mm cutting diameter with matched 22 mm shank diameter for direct collet fitment
• Four flutes with a 30-degree right-hand helix for efficient chip evacuation
• Solid micrograin carbide construction for hardness and edge retention
• Center-cutting capable, allowing plunge entry into the workpiece
• Bright, uncoated finish for easy inspection and re-sharpening
• Single-end design, 102 mm overall length in a regular-length configuration

Compatibility

Designed as an OEM-style solid carbide square end mill for use in standard 22 mm collets, end mill holders, and milling chucks on vertical mills and CNC machining centers.

Installation Notes

Install into a clean, properly sized 22 mm collet or end mill holder and torque the retention mechanism per the toolholder manufacturer's specifications. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Confirm runout with a dial indicator after seating to minimize premature tool wear. Follow your shop's speeds and feeds guidelines for solid carbide tooling in the workpiece material being machined.
