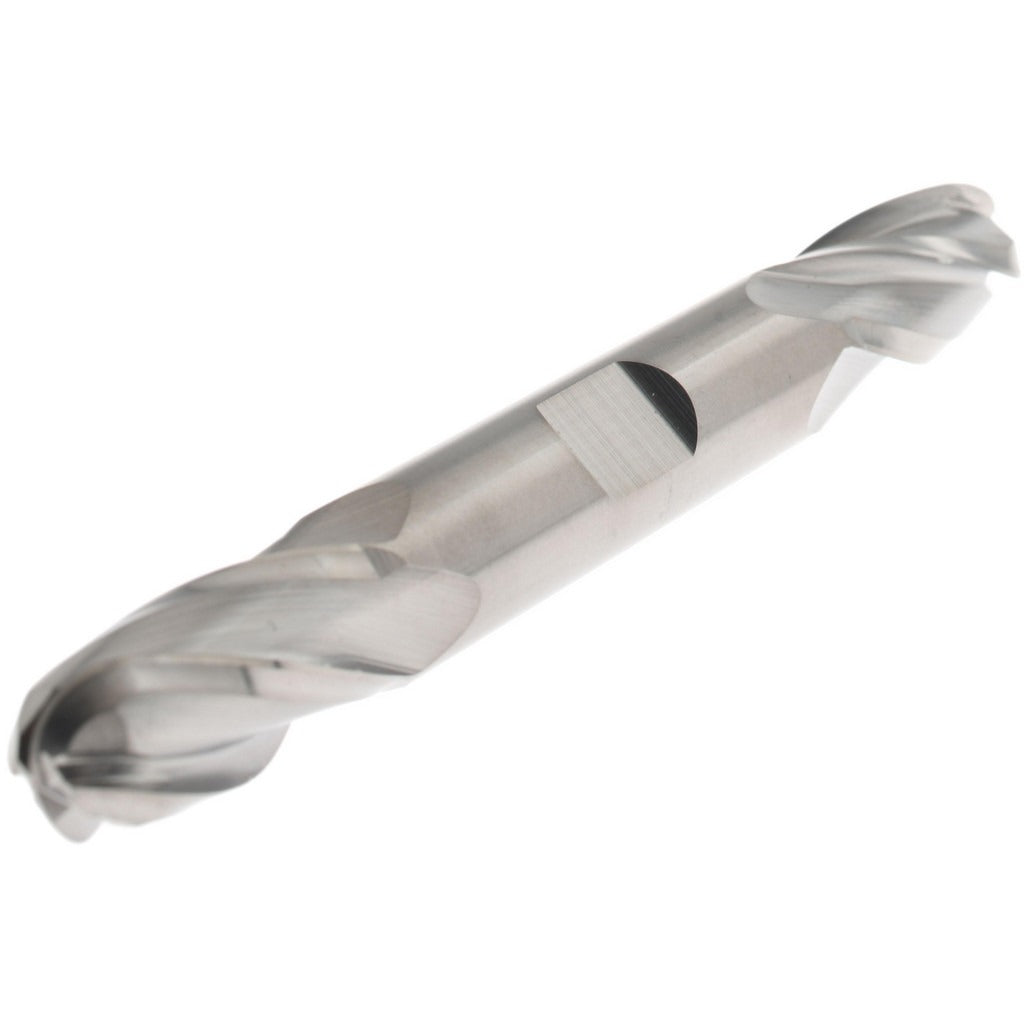

Hertel E599924427 Ball End Mill 0.5 in 4 Flute Carbide

Product Description

The HERTEL E599924427 is a solid carbide ball end mill designed for precision milling operations in metal, alloy, and hard-material applications. With a 0.5 inch cutting diameter, four flutes, and a 1 inch length of cut, this tool delivers consistent chip evacuation and smooth surface finishes in contoured and 3D profiling work. The bright uncoated finish makes it well suited for materials where coated tools can cause adhesion or edge buildup. At 4 inches overall length with a 0.5 inch shank diameter, the tool fits standard milling chucks and collet holders used in CNC machining centers. This is a double-end configuration, providing two usable cutting ends and extended service life per tool.

This ball end mill is used in CNC machining centers and manual knee mills for finishing passes on contoured surfaces, die and mold cavities, and profiled workpieces. The right-hand spiral flute geometry and right-hand cutting direction are standard for conventional and climb milling in most shop setups. Machinists and tool-and-die professionals working in job shops, mold shops, and production facilities are the primary installers of this tooling. It is suited for ferrous and non-ferrous materials where an uncoated carbide edge performs reliably.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding milling operations
• Ball end geometry for profiling, contouring, and 3D surface work
• Four-flute design for improved surface finish and feed rate capability
• Double-end configuration extends usable life per tool
• Bright uncoated finish suited for materials prone to coating adhesion
• Right-hand cut and right-hand spiral for standard milling setups

Compatibility

Designed as a standard-shank replacement ball end mill for use in CNC machining centers and manual mills accepting a 0.5 inch shank diameter via collet, end mill holder, or milling chuck.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify shank runout and holder condition before seating the tool, as excessive runout will reduce edge life and surface quality. Follow the machine tool manufacturer guidelines for tool overhang and clamping torque specifications on the holder being used.
