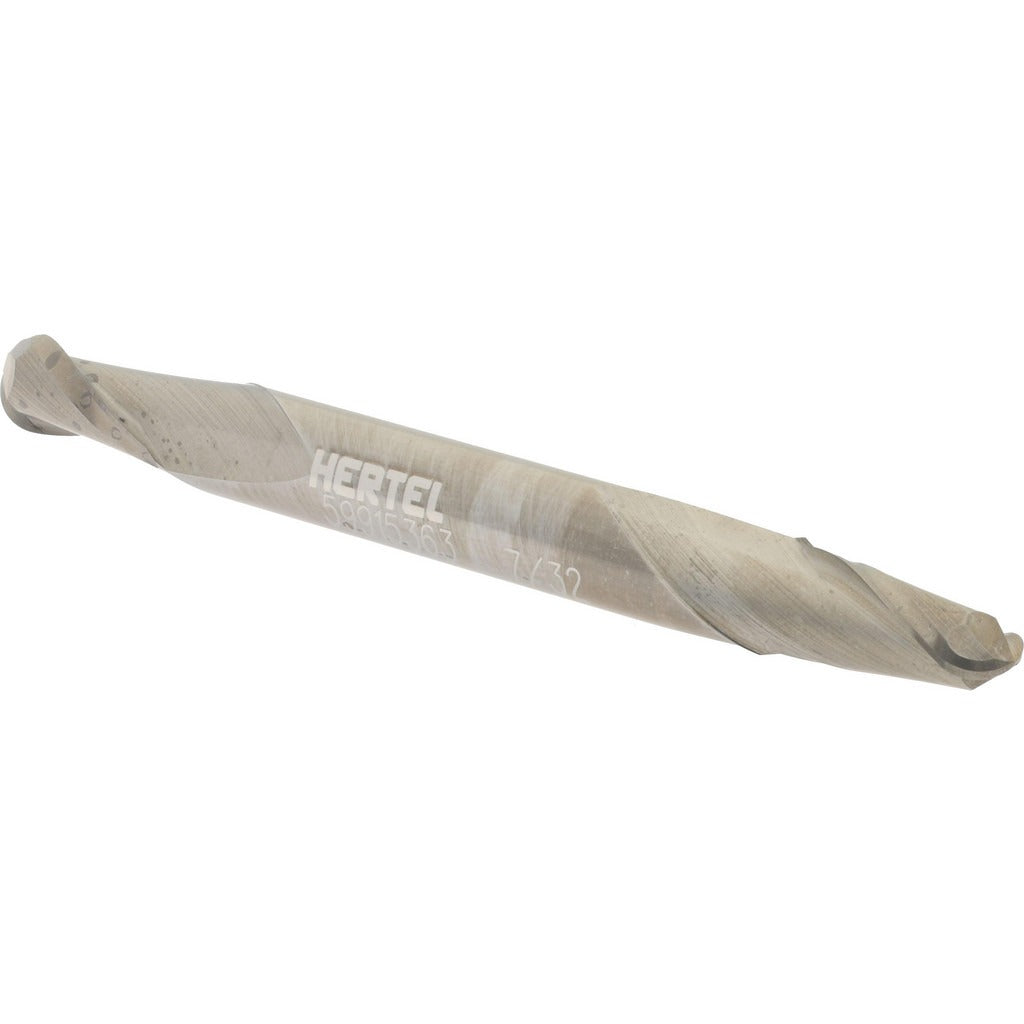

Hertel E599924395 Ball End Mill 7/32 in 2 Flute Carbide

Product Description

The HERTEL E599924395 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining environments. This double-end tool features a 7/32-inch milling diameter, a 7/16-inch length of cut (LOC), and a 1/4-inch shank diameter. The 2-flute geometry promotes efficient chip evacuation and allows for smooth cutting in a variety of materials. With a 2-1/2-inch overall length (OAL) and an uncoated carbide construction, this end mill is suited for applications where dimensional accuracy and tool rigidity are required. It is typically installed in CNC machining centers, knee mills, or manual milling setups by machinists and tool-and-die professionals.

This ball end mill is appropriate for contour milling, slotting, and 3D profiling operations in ferrous and non-ferrous materials. The ball nose profile generates smooth radii on part features and is commonly used in die and mold work, aerospace component machining, and general precision part production. The uncoated finish makes it a solid choice for aluminum and softer alloys where coatings may cause material adhesion issues.

Key Features

• 7/32-inch milling diameter for tight-tolerance contouring and profiling
• 7/16-inch length of cut suitable for shallow to moderate depth passes
• 2-flute design promotes chip clearance and smooth surface finish
• Double-end configuration provides two usable cutting ends per tool
• Solid carbide construction delivers rigidity and wear resistance
• Uncoated finish well-suited for aluminum and non-ferrous alloy machining

Compatibility

Designed as an OEM-style replacement or standard tooling option for CNC machining centers and manual mills accepting a 1/4-inch straight shank end mill holder or collet.

Installation Notes

Installation is performed by qualified machinists using an appropriate collet or end mill holder rated for the 1/4-inch shank diameter. Ensure the machine spindle is fully powered down and locked out before securing or removing the tool. Verify runout with a dial indicator after installation to confirm proper seating. Follow shop safety standards and machine manufacturer guidelines for feed rates and depth-of-cut parameters appropriate to the material being machined.
