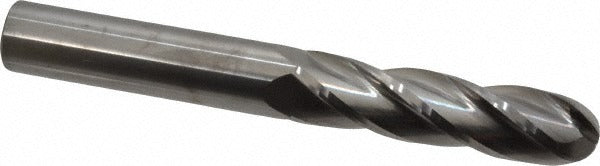

Hertel E5062048 Ball End Mill 0.75in 4 Flute Carbide

Product Description

The HERTEL E5062048 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining environments. With a 0.75-inch cutting diameter, 3-inch length of cut, and four flutes, this single-end tool delivers smooth material removal in profiling, contouring, and 3D surfacing applications. The 30-degree helix angle promotes efficient chip evacuation and reduces cutting forces. The uncoated solid carbide construction provides rigidity and hardness suited for demanding cutting conditions. This tool is installed and operated by machinists and CNC programmers working with machining centers, vertical mills, and general-purpose milling equipment.

The E5062048 is suited for use in job shops, tool rooms, and production machining environments where accurate curved-surface and contoured-profile work is required. It handles a range of ferrous and non-ferrous materials where an uncoated carbide tool is appropriate. The right-hand cutting and right-hand flute direction make it compatible with standard CNC and manual milling setups. A 3/4-inch shank diameter matches common collet and end mill holder sizes used across CNC machining centers and knee mills.

Key Features

• 0.75-inch ball nose diameter for profiling and 3D contour milling
• 4-flute geometry supports higher feed rates and improved surface finish
• 30-degree helix angle promotes effective chip evacuation
• Solid carbide construction provides stiffness and wear resistance
• Uncoated finish for use in applications where coating is not required or preferred
• Single-end design with 6-inch overall length for added reach clearance

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide ball end mill for standard 3/4-inch collet chucks and end mill holders on CNC machining centers and manual vertical mills.

Installation Notes

Installation should be performed by a qualified machinist following standard toolholding procedures. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully into the collet or end mill holder to the recommended grip length before torquing the retention hardware. Verify runout with a dial indicator before beginning a cut, and confirm spindle speed and feed rate settings are appropriate for the workpiece material and depth of cut.
