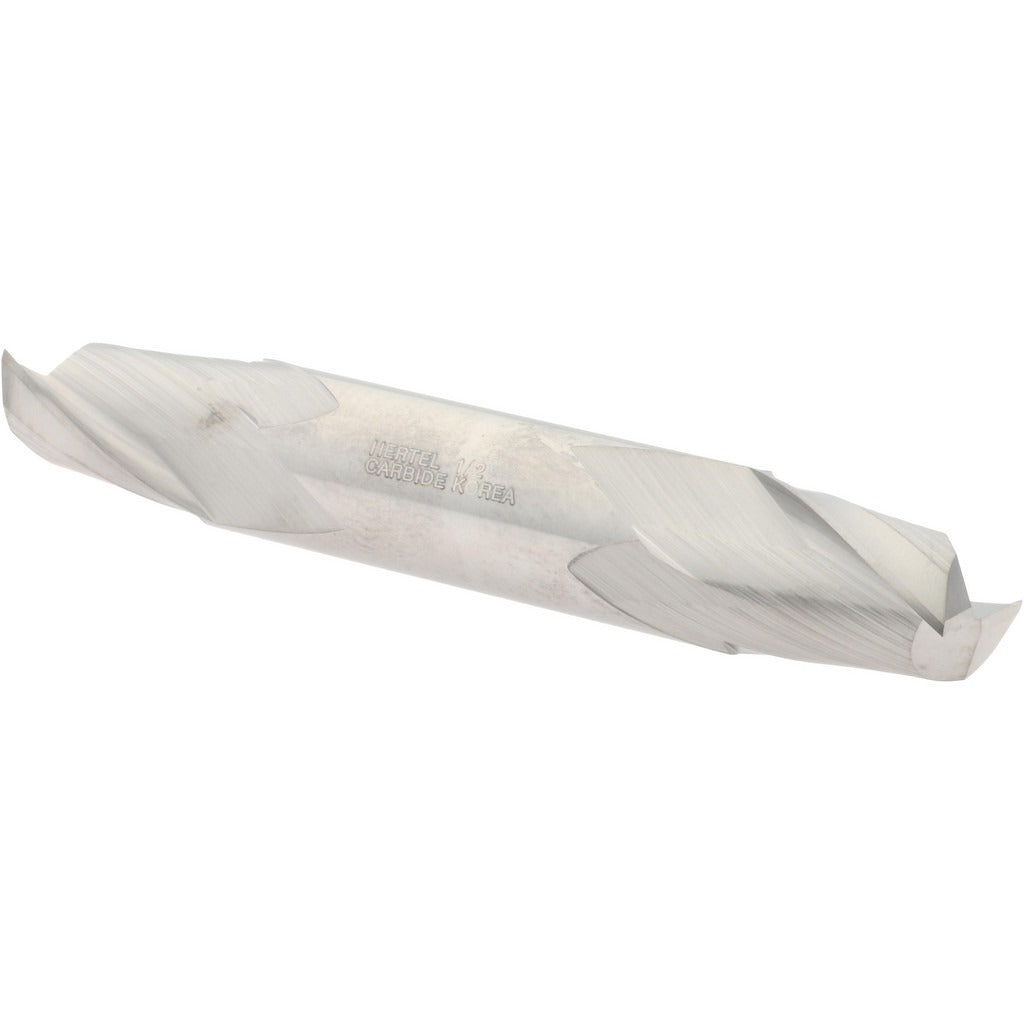

Hertel E5022032 Square End Mill 0.5 in 2 Flute Carbide

Product Description

The HERTEL E5022032 is a solid carbide square end mill designed for precision milling operations in metal, composites, and engineered plastics. With a 0.5-inch cutting diameter, a 2-flute spiral configuration, and a 30-degree helix angle, this tool delivers efficient chip evacuation and smooth cutting action across a range of milling applications. The centercutting geometry allows for direct plunge entry into workpieces without a pre-drilled hole. At 3 inches overall length with a 0.625-inch length of cut, this end mill is sized for short-to-medium reach work in CNC machining centers and manual mills. It arrives uncoated, making it well-suited for applications where coating compatibility or post-treatment is a consideration. Installed by machinists and toolroom professionals.

This end mill is suited for slot milling, peripheral milling, and light plunge cutting in ferrous and non-ferrous materials. The right-hand cut orientation and spiral flute design support consistent chip flow in conventional and climb milling setups. The 0.5-inch shank diameter fits standard ER collet chucks, end mill holders, and side-lock holders commonly found in CNC machining centers and manual knee mills. Its compact 3-inch overall length keeps tool deflection low in short-reach applications. Solid carbide construction provides the rigidity and wear resistance required for tight-tolerance work.

Key Features

• Solid carbide construction for rigidity and extended tool life
• 2-flute spiral design promotes efficient chip evacuation
• 30-degree helix angle balances cutting force and surface finish
• Centercutting capability allows direct plunge entry
• Right-hand cut direction for standard CNC and manual mill setups
• Uncoated finish suitable for applications requiring bare carbide

Compatibility

Designed as a standard-shank solid carbide square end mill compatible with 0.5-inch ER collet chucks, end mill holders, and side-lock toolholders used in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer torque and runout specifications. Ensure the spindle is fully stopped and locked out before changing tooling. Seat the shank to the minimum insertion depth specified by the toolholder to prevent pullout under load. Verify runout at the tool tip before beginning the cut, as excessive runout accelerates wear and reduces dimensional accuracy.
