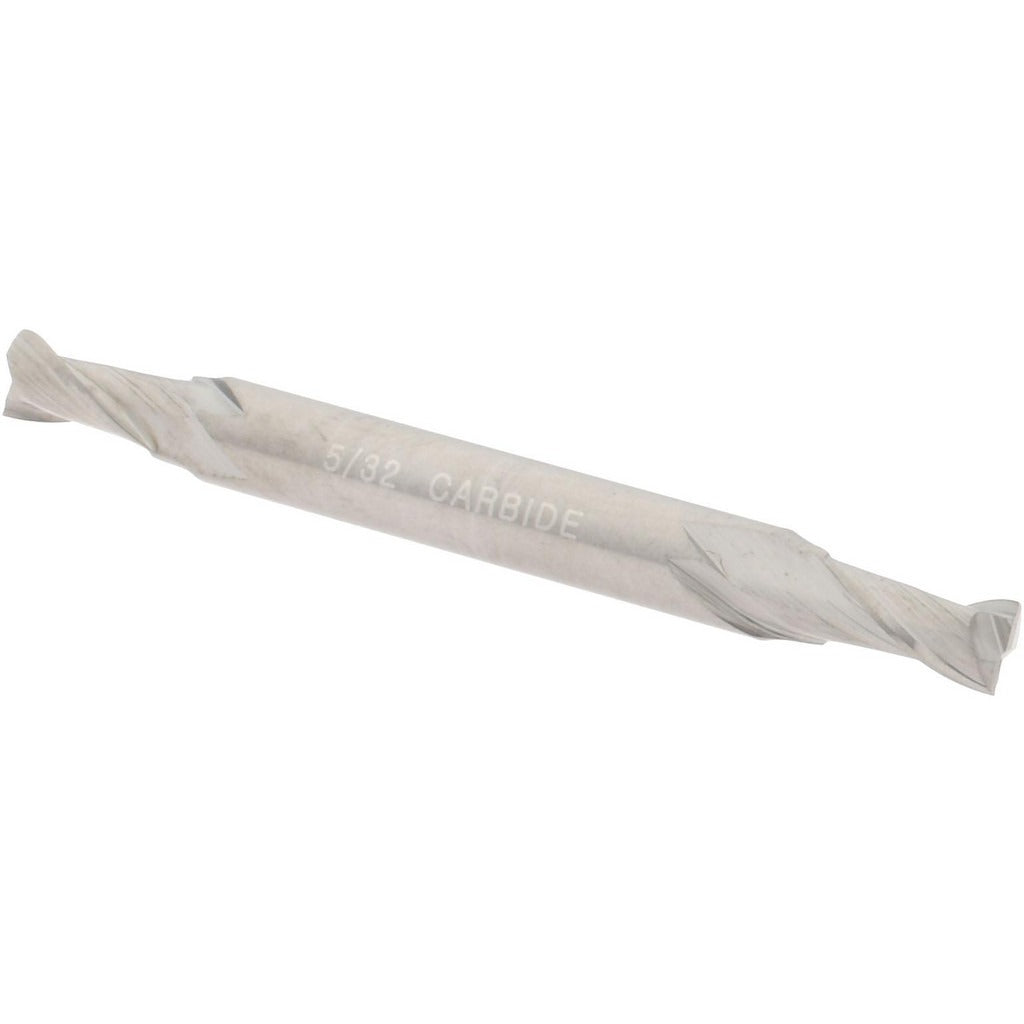

Hertel E5022010 Square End Mill 5/32 in 2 Flute Carbide

Product Description

The HERTEL E5022010 is a solid carbide square end mill designed for precision milling in metal, composite, and hard material applications. With a 5/32-inch (0.1563-inch) mill diameter and 2 flutes in a 30-degree spiral helix configuration, this double-end tool delivers clean, accurate cuts in both slotting and profiling operations. The uncoated carbide construction provides rigidity and sharp edge retention. At 2 inches overall length with a 5/16-inch length of cut, it is well suited for close-tolerance work in production and toolroom environments. Licensed machinists and CNC operators are the primary users of this tool.

This end mill fits standard CNC machining centers and manual mills equipped with a 3/16-inch collet or chuck. Its centercutting geometry allows it to plunge directly into workpiece material, adding versatility for ramping and pocket-milling operations. The right-hand cutting direction is compatible with conventional spindle setups. Typical applications include light slotting, contouring, and profiling in ferrous and non-ferrous materials where a small-diameter carbide tool is required.

Key Features

• Solid carbide construction for rigidity and long tool life in hard materials
• 2-flute, 30-degree spiral helix for efficient chip evacuation
• Centercutting design allows direct plunge entry into workpiece
• Double-end configuration extends usable tool life
• Uncoated finish suitable for a wide range of base materials
• Right-hand cut compatible with standard CNC and manual mill spindles

Compatibility

Designed for use in CNC machining centers and manual milling machines accepting a 3/16-inch shank diameter. Compatible with standard collet chucks and end mill holders configured for that shank size.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the machine spindle before inserting or removing the end mill. Seat the shank fully in the collet or holder to the recommended engagement depth before tightening. Inspect the cutting edges for chips or damage before each use, and never exceed the manufacturer-rated speeds and feeds for the workpiece material.
