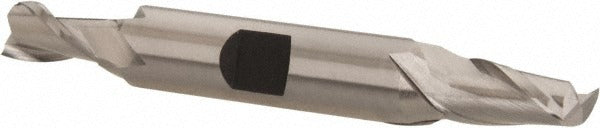

Hertel E2050018 Square End Mill 9/32 in 2 Flute Cobalt

Product Description

The HERTEL E2050018 is a cobalt square end mill designed for metal cutting operations in milling machines and machining centers. Built from M42 cobalt high-speed steel, it offers heat resistance and edge retention when cutting ferrous and non-ferrous materials. The double-end configuration provides two usable cutting ends, extending tool life between changes. With a 30-degree helix angle and spiral flute geometry, it promotes efficient chip evacuation and smooth cutting action. This end mill is centercutting, allowing direct plunge milling into workpiece material. It is uncoated and runs right-hand cut with right-hand fluting.

This end mill is suited for general-purpose milling work including slotting, profiling, and plunging in ferrous metals, alloys, and similar materials. The 9/32-inch diameter and 9/16-inch length of cut make it well matched to detail work and narrow slot applications. The 3/8-inch shank fits standard collets and end mill holders found on vertical mills and CNC machining centers. It is intended for use by machinists and tool-and-die professionals in job shop and production environments.

Key Features

• M42 cobalt high-speed steel construction for heat resistance and durability in tough materials
• Double-end design provides two cutting ends per tool
• Centercutting geometry allows direct plunge entry into the workpiece
• 30-degree helix angle with spiral flute for efficient chip evacuation
• Right-hand cut and right-hand flute configuration
• Uncoated finish suitable for use with cutting fluids on a wide range of materials

Compatibility

Designed as a standard-shank square end mill fitting 3/8-inch collets and end mill holders on conventional and CNC vertical milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Secure the shank fully within the collet or end mill holder and verify runout before cutting. Power down and lock out the spindle before changing tooling. Follow machine manufacturer guidelines for speeds and feeds appropriate to the workpiece material and tool diameter.
