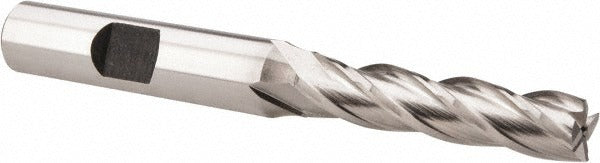

Hertel E2034020 Square End Mill 5/16 in 4 Flute Cobalt

Product Description

The HERTEL E2034020 is a cobalt square end mill designed for milling ferrous and high-temperature alloy materials in machine shop and industrial metalworking environments. Built from M42 cobalt high-speed steel, it resists heat and wear during demanding cuts. The cutter measures 5/16 inch in diameter with a 1-3/8 inch length of cut, a 3/8 inch shank diameter, and a 3-1/8 inch overall length. It runs four spiral flutes at a 30-degree helix angle in a right-hand cut and right-hand flute orientation. The long-series configuration provides extended reach for deeper slot and peripheral milling operations. Licensed machinists and CNC operators are the primary installers.

This end mill is suited for slotting, profiling, and peripheral milling in ferrous metals and harder alloys where cobalt tooling is preferred over standard high-speed steel. The long LOC-to-diameter ratio accommodates deeper-than-standard cut depths in a single pass. It is used in vertical and horizontal milling machines, CNC machining centers, and manual knee mills. The uncoated finish makes it easy to re-sharpen in-shop. This is a single-end tool in a long-series length category, appropriate for general-purpose production or toolroom work where extended reach is required.

Key Features

• M42 cobalt HSS construction for improved heat and wear resistance over standard M2 HSS
• 4 spiral flutes at 30-degree helix angle for efficient chip evacuation
• Right-hand cut and right-hand flute orientation for standard milling setups
• Long-series length of cut (1-3/8 inches) for deeper slot and step milling
• 3/8 inch shank diameter for compatibility with common collets and end mill holders
• Uncoated finish allows field re-sharpening to extend tool life

Compatibility

Designed as an OEM-style replacement or direct-use end mill for standard 3/8 inch collet chucks and end mill holders used in vertical milling machines and CNC machining centers.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the spindle before loading or removing the tool. Seat the shank fully into the collet or holder and torque the drawbar or retention screw to the machine manufacturer specification. Verify runout with a dial indicator before engaging the cut. Do not exceed the tool manufacturer recommended feed and speed parameters for the workpiece material.
