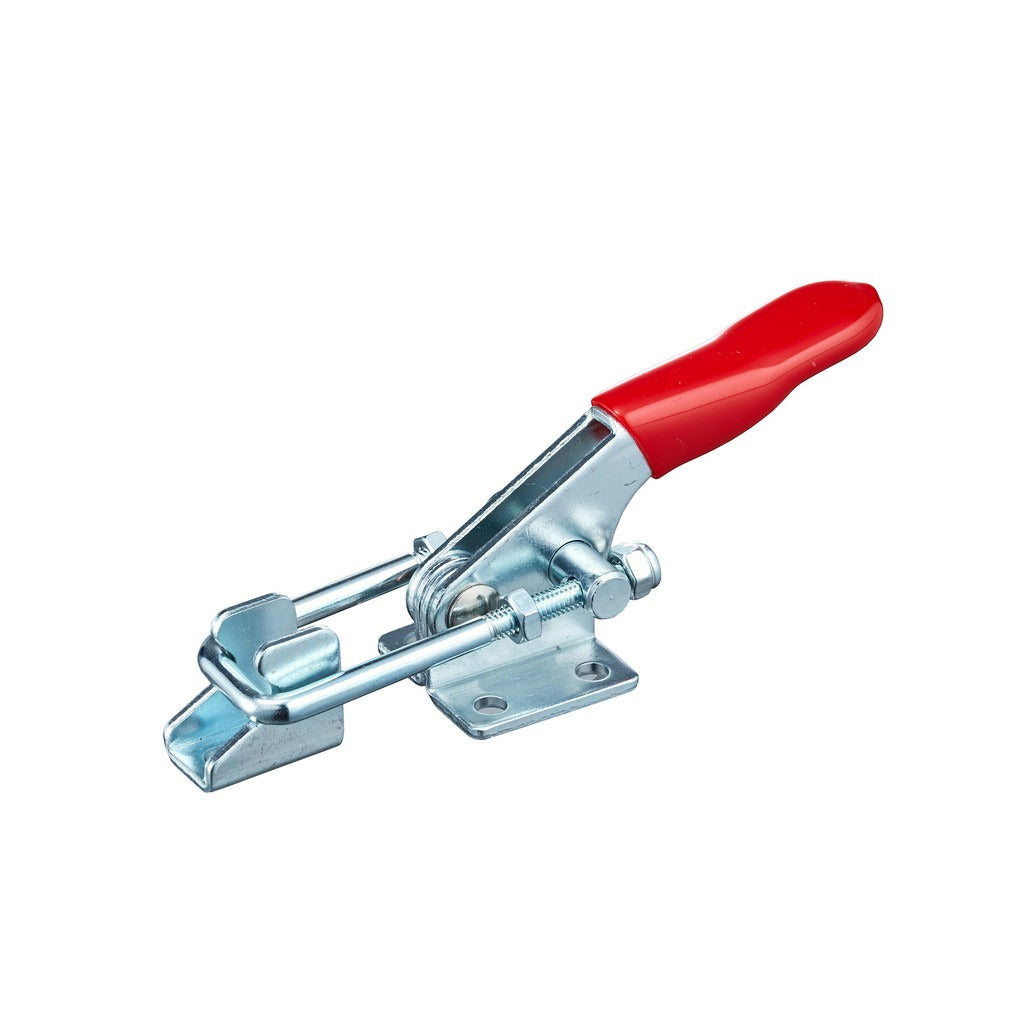

Hertel CH-40323 Pull-action Latch Clamp 360 Lb U-hook

Product Description

The HERTEL CH-40323 is a horizontal pull-action latch clamp designed for workholding, fixturing, and securing applications in industrial and fabrication environments. It uses a U-Hook bar style to draw and hold components firmly in place with a rated load capacity of 360 pounds (1,601.35 N). The straight, red handle travels 180 degrees and delivers 1.18 inches of drawing movement. The clamp body is constructed from steel with a zinc finish coating for corrosion resistance. Installation is handled by machinists, toolmakers, fabrication technicians, and maintenance trades who build or service jigs, fixtures, and clamping assemblies.

This clamp is suited for horizontal clamping orientation in light-to-medium industrial applications such as welding fixtures, assembly jigs, and tooling plates. The flanged base provides four mounting holes for stable, flat-surface attachment. Its compact overall length of 3.07 inches and overall height of 1.28 inches make it appropriate for installations where clearance is limited. The base length is 1.03 inches and base width is 1.11 inches, fitting standard mounting patterns used in workholding setups.

Key Features

• 360 lb (1,601.35 N) load and holding capacity for reliable clamping force
• 1.18 inches of drawing movement for consistent part engagement
• Flanged base with four mounting holes for secure flat-surface installation
• Steel body with zinc finish coating for durability and corrosion resistance
• Straight red handle with 180-degree handle movement for easy actuation
• Compact form factor at 3.07 inches overall length for tight-clearance fixtures

Compatibility

Designed as an OEM-style replacement or direct-use horizontal pull-action latch clamp for industrial fixturing and workholding applications requiring a U-Hook, flanged-base configuration with a 360 lb capacity.

Installation Notes

Installation is typically performed by machinists or tooling technicians using standard hand tools. Mount the flanged base to a flat, rigid surface through all four mounting holes using fasteners appropriate for the load rating. Ensure the mounting surface and fasteners are rated to handle the full 360 lb clamping load before placing the assembly into service. Inspect the U-Hook and latch mechanism for proper engagement before each use cycle.
