Hertel CH-36204-05 Clamp Nut 3/4-16 Toggle Clamps

Product Description

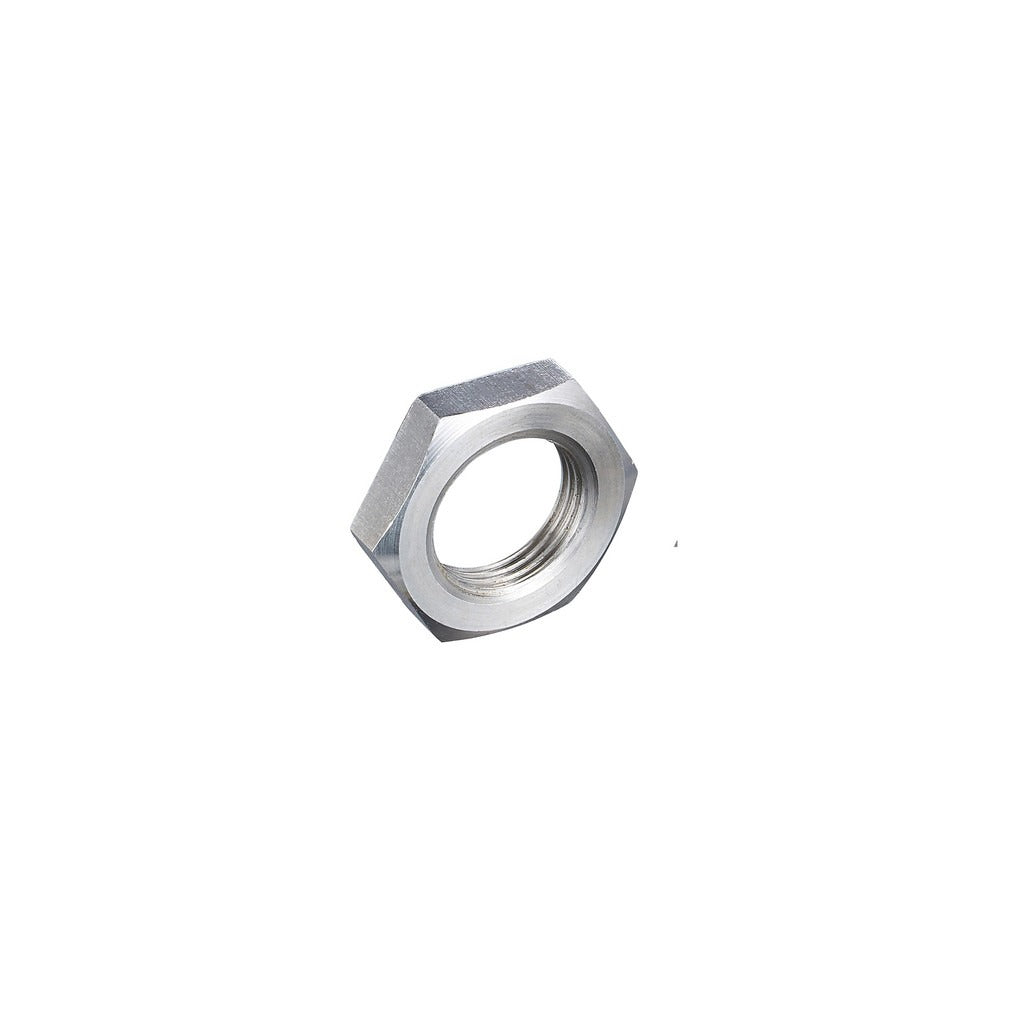

The HERTEL CH-36204-05 is a replacement clamp nut designed for use with toggle clamps. It features a 3/4-16 thread size and is built as a direct-fit replacement component for toggle clamp assemblies used in workholding, fixturing, and clamping applications. At 0.26 inches in length and 1.19 inches in width, this compact nut integrates into standard toggle clamp hardware without modification. Machinists, tool and die technicians, and assembly line maintenance personnel typically install or replace this component as part of routine toggle clamp servicing.

This clamp nut is suited for industrial and manufacturing environments where toggle clamps are used to secure workpieces during machining, welding, or assembly operations. The 3/4-16 thread specification matches the fastener requirements of compatible toggle clamp bodies, making it a straightforward replacement when the original nut is worn, stripped, or damaged. It is sold individually and is appropriate for both light-duty and production-grade toggle clamp setups.

Key Features

• 3/4-16 thread size for direct engagement with compatible toggle clamp hardware
• Compact form factor at 0.26 inches length and 1.19 inches width
• Sold as a single-piece replacement unit
• Lightweight at 0.01 pounds for minimal impact on clamp assembly weight

Compatibility

Designed as a replacement clamp nut for toggle clamp assemblies requiring a 3/4-16 threaded component.

Installation Notes

Installation is typically performed by a machinist or maintenance technician. Before replacing the clamp nut, ensure the toggle clamp is fully released and the workpiece or fixture is clear of the clamping area. Use the appropriate wrench size to avoid rounding the nut during installation or removal. Verify thread engagement is complete and the nut is seated securely before returning the clamp to service.
