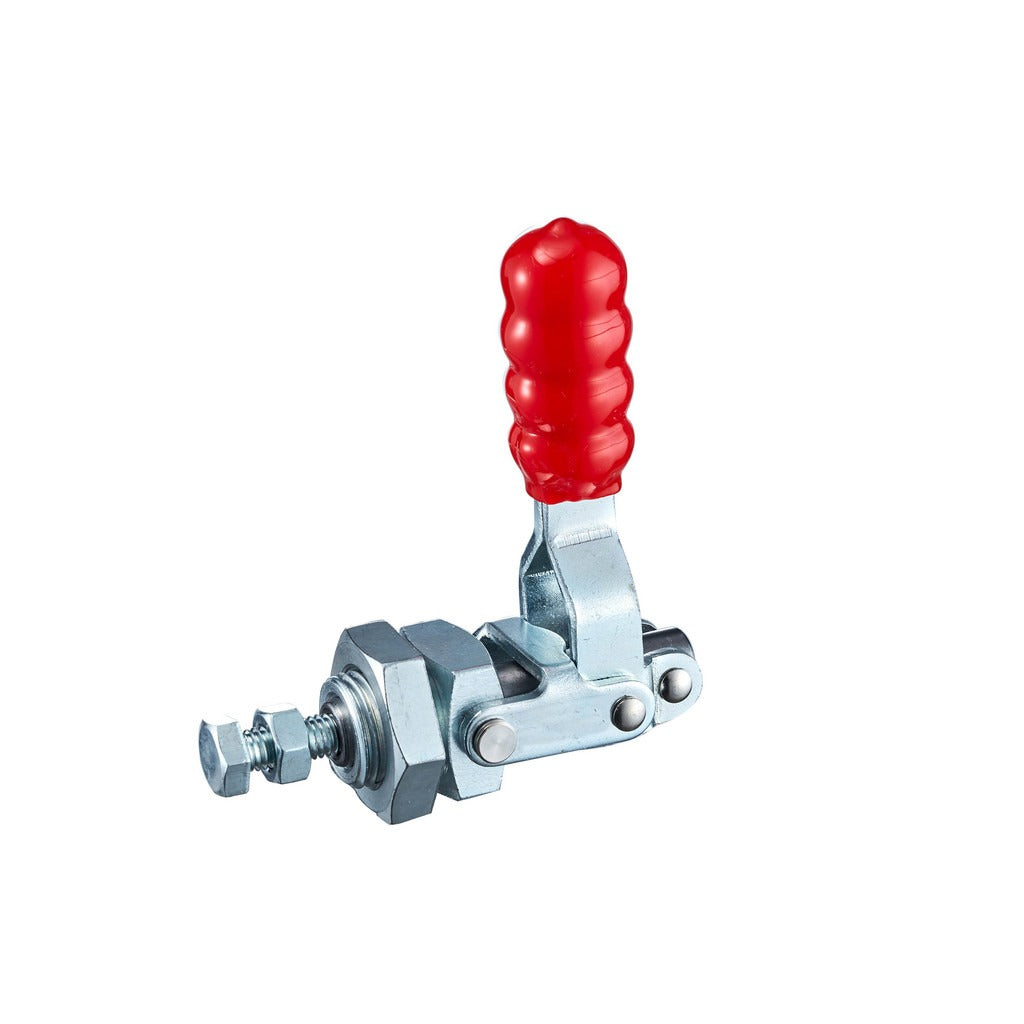

Hertel CH-36202 Straight Line Action Clamp 200 Lb Steel

Product Description

The HERTEL CH-36202 is a standard straight line action clamp designed for workholding applications in industrial and manufacturing environments. It delivers a 200 lb (889.64 N) load capacity through a round-profile plunger with 0.787 inches of travel, a 1/4-20 internal thread, and a 0.370-inch plunger diameter. The clamp body is constructed from steel for durability under repeated clamping cycles. A straight, horizontally oriented red handle provides 180 degrees of handle movement to engage and release the clamp. The package includes one spindle and two nuts. This clamp is typically installed by machinists, toolmakers, and fixture builders working on jigs, fixtures, and production workholding setups.

The CH-36202 suits applications where a compact, in-line clamping motion is required. Its overall length of 2.5 inches and overall height of 2.992 inches make it suitable for tight fixture layouts where toggle or side-action clamps would not fit. The steel construction handles repeated clamping cycles in light-duty to medium-duty production environments. Machinists and fixture designers commonly use this clamp in manual assembly jigs, drilling fixtures, and machining setups where fast, repeatable part location is needed.

Key Features

• 200 lb (889.64 N) load capacity for reliable workholding force
• 0.787 inches of plunger travel with 1/4-20 internal thread for spindle adjustment
• Round plunger profile at 0.370 inches diameter for consistent contact
• Straight red handle with 180-degree movement and horizontal orientation
• Steel construction throughout for durability in production environments
• Compact footprint at 2.5 inches overall length — suited for space-constrained fixture layouts

Compatibility

Designed as an OEM-style straight line action clamp for use in standard workholding fixtures, jigs, and tooling applications requiring a 1/4-20 spindle thread and 200 lb clamping load.

Installation Notes

Installation is typically performed by machinists or toolmakers during fixture assembly. Secure the clamp body to the fixture base using the appropriate fasteners before adjusting spindle depth with the included nuts. Confirm the plunger contacts the workpiece squarely to avoid lateral loading on the spindle. Always release clamping force and remove workpieces before repositioning or adjusting spindle height.
