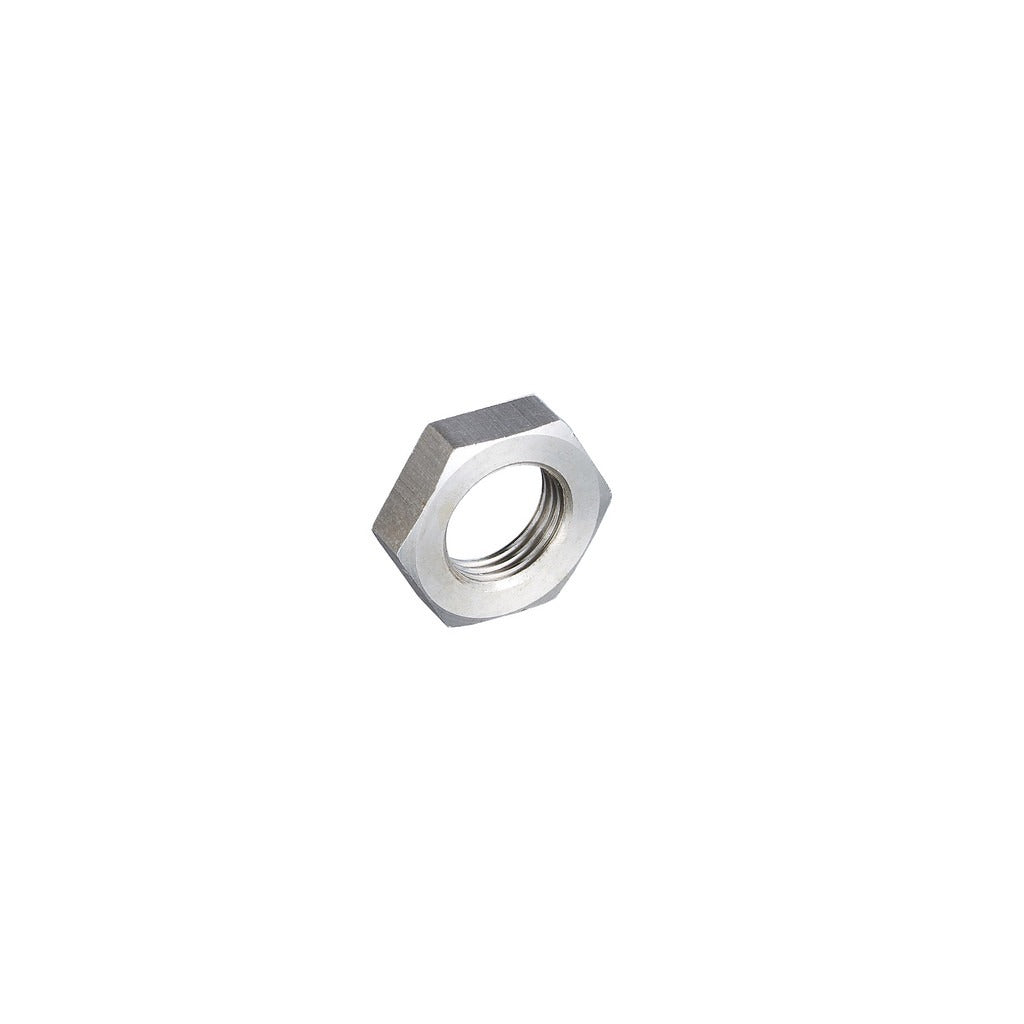

Hertel CH-36202-05 Clamp Nut 5/8-18 Toggle Clamp

Product Description

The HERTEL CH-36202-05 is a replacement clamp nut designed for use with toggle clamps in industrial and trade fastening applications. Threaded at 5/8-18, this nut provides a secure, adjustable connection point on toggle clamp spindles and pressure screws. At 0.26 inches in length and 0.95 inches in width, it is a compact component with a lightweight profile of 0.01 pounds. Machinists, tool-and-die technicians, and fixture builders who service or rebuild toggle clamp assemblies will find this a direct-fit replacement for worn or damaged clamp hardware.

This clamp nut is suited for repair and maintenance of toggle clamp mechanisms used in workholding fixtures, welding jigs, and assembly tooling. It is a single-piece replacement item packaged individually, making it practical for targeted hardware replacement without purchasing a full clamp assembly. Facilities that maintain large inventories of toggle clamps will use this part to restore clamping function quickly.

Key Features

• 5/8-18 thread size for precise fit on compatible toggle clamp spindles
• Compact dimensions: 0.26 inches long, 0.95 inches wide
• Lightweight at 0.01 pounds, adding minimal mass to the clamp assembly
• Sold individually for targeted single-unit replacement
• OEM-style fitment for toggle clamp repair and rebuild applications

Compatibility

Designed as a replacement clamp nut for toggle clamps with a 5/8-18 threaded spindle or pressure screw interface.

Installation Notes

Installation is typically performed by maintenance technicians or fixture builders. Before replacing the clamp nut, release all clamping pressure and confirm the toggle clamp is fully in the open position. Thread engagement should be verified for full seating without cross-threading. Inspect the mating spindle threads for wear before installing the replacement nut.
