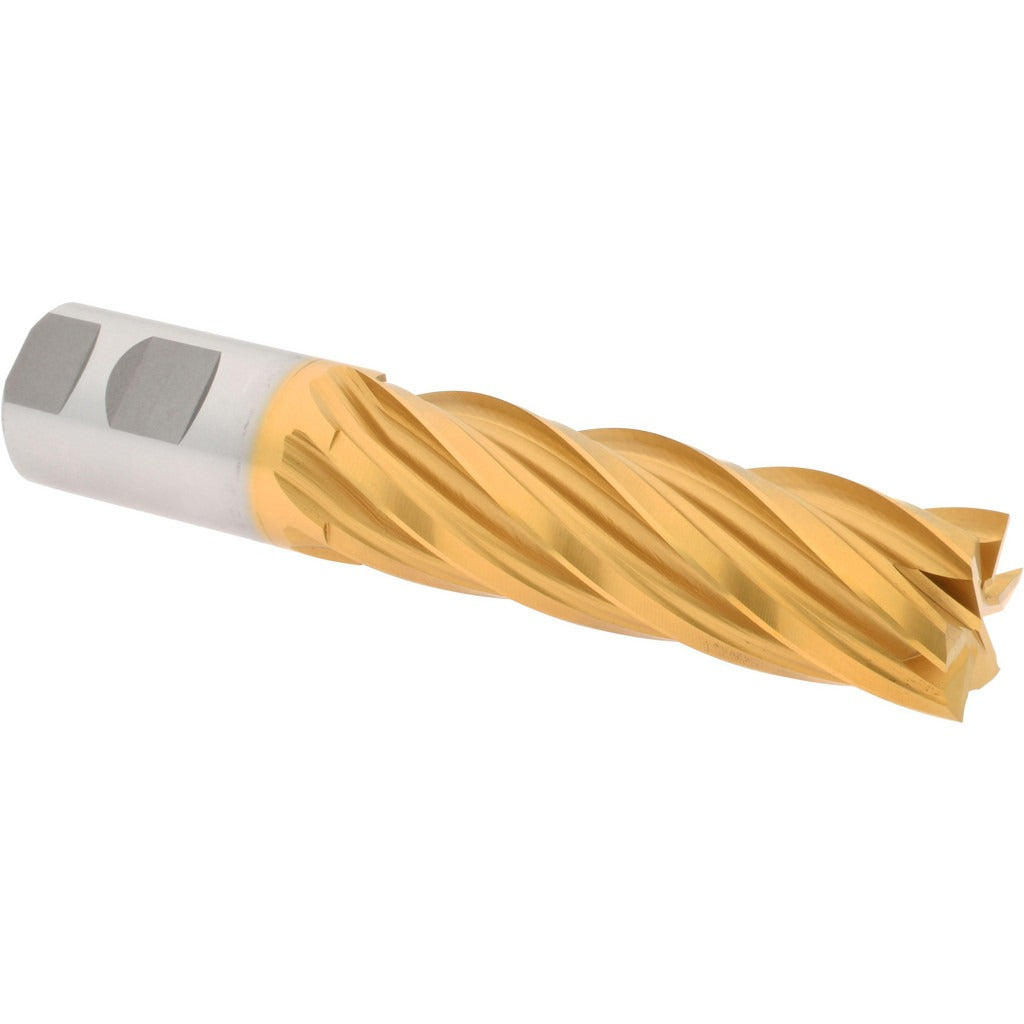

Hertel CAT83979K Square End Mill 1-1/4 in 6 Flute Cobalt

Product Description

The HERTEL CAT83979K is a 6-flute cobalt square end mill engineered for demanding material removal in ferrous and high-temperature alloy applications. Built from M42 cobalt high-speed steel and finished with a TiN (titanium nitride) coating, it delivers extended tool life and reduced heat buildup at the cutting edge. The 1.25-inch diameter runs a 4-inch length of cut with a matching 1.25-inch shank diameter, giving machinists a rigid setup for deep-cavity and long-reach work. Overall length is 6.5 inches. The 30-degree spiral helix promotes smooth chip evacuation, and the centercutting geometry allows direct plunge entry without a pre-drilled pilot hole.

This end mill is suited for milling operations on steel, stainless steel, cast iron, and similar materials in both manual and CNC machining environments. The long-reach configuration makes it well-suited to pocketing, slotting, and profiling operations where standard-length tooling cannot reach the floor of a feature. Right-hand cut and right-hand flute orientation is standard for conventional spindle setups. It is intended for use by machinists and tool-and-die professionals working on production or job-shop equipment.

Key Features

• M42 cobalt HSS construction for improved red hardness and wear resistance versus standard M2
• TiN finish reduces friction and extends cutting edge life in ferrous materials
• 6-flute design increases feed rates and improves surface finish compared to 4-flute tooling
• 30-degree helix angle promotes efficient chip flow in deep cuts
• Centercutting geometry enables direct plunge milling without a pilot hole
• Long-length series with 4-inch LOC supports deep pocket and cavity work

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool for CNC machining centers and manual mills accepting a 1.25-inch straight shank via standard ER, side-lock, or hydraulic toolholders.

Installation Notes

Installation is performed by qualified machinists following standard toolholding procedures. Secure the shank fully within the toolholder to the minimum insertion depth recommended by the holder manufacturer before tightening. Verify spindle runout with a dial indicator before beginning a cut, as excessive runout accelerates edge wear on multi-flute tooling. Always bring the spindle to a full stop before measuring, adjusting, or removing the tool.
