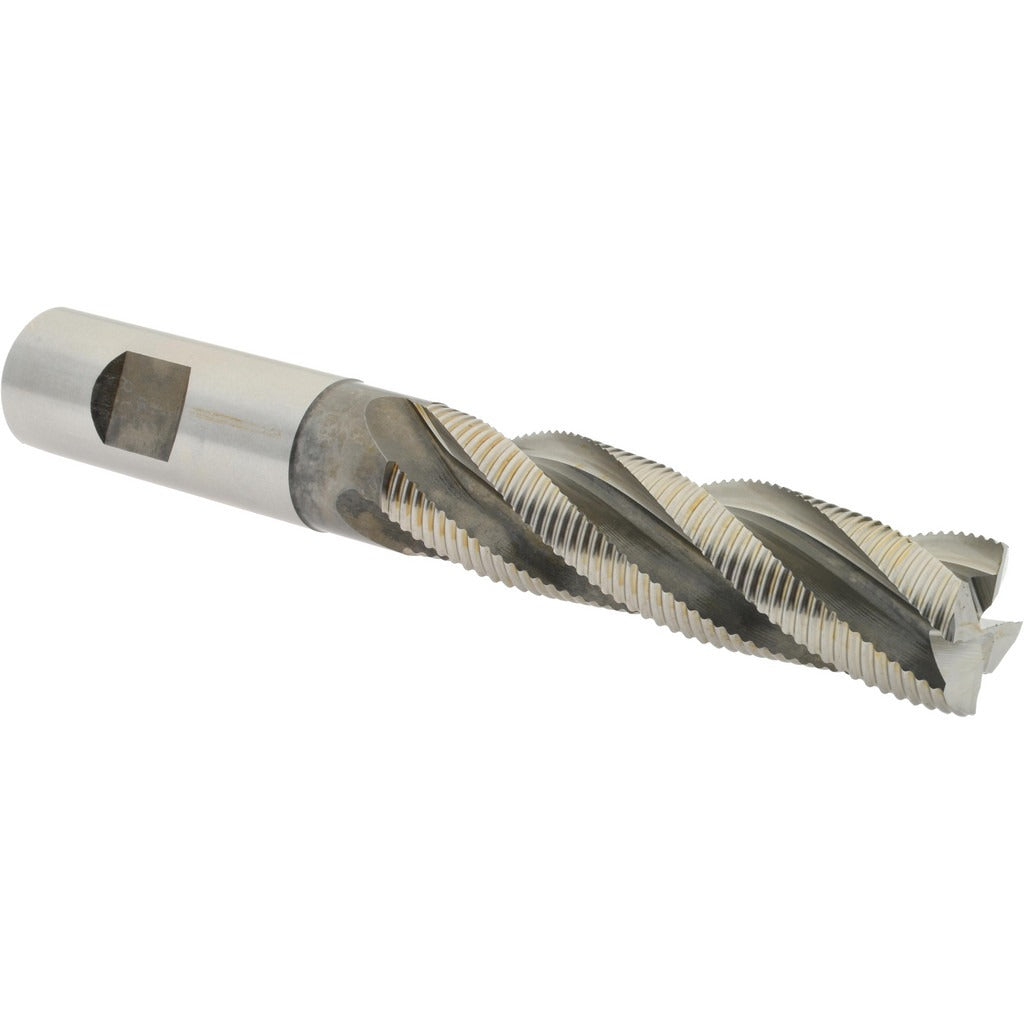

Hertel 91197632 Roughing End Mill 20mm 4 Flute Cobalt

Product Description

The HERTEL 91197632 is a single-end roughing end mill designed for high-material-removal-rate milling operations. Built from M42 cobalt high-speed steel, it delivers the heat and wear resistance needed for interrupted cuts and aggressive roughing passes on ferrous and non-ferrous workpieces. The cutter measures 20 mm (0.7874 inches) in diameter with a 75 mm (2.95 inches) length of cut and a 141 mm overall length. Its fine-pitch, 4-flute geometry and bright uncoated finish make it suited to shops running conventional roughing cycles where regrinding and reconditioning are standard practice.

This end mill is used in vertical and horizontal milling machines, machining centers, and manual knee mills for roughing slots, pockets, and peripheral cuts. The centercutting design allows plunge entry without a pre-drilled start hole, which is useful in die and mold work and general job-shop machining. Right-hand cut and right-hand flute direction conform to the most common spindle and toolholder configurations. It is typically installed by machinists, tool-and-die makers, and CNC programmers running production or prototype work.

Key Features

• M42 cobalt material grade for improved hot hardness over standard M2 HSS
• Fine-pitch roughing profile reduces cutting forces and chip load per tooth
• Centercutting design enables direct plunge milling without pilot hole
• Bright uncoated finish retains full substrate toughness and simplifies regrinding
• Right-hand cut and right-hand helix match standard milling machine spindle configurations
• Single-end construction with 20 mm shank diameter for direct ER or side-lock toolholder fitment

Compatibility

Designed as an OEM-style roughing end mill for use in standard 20 mm bore milling chucks, ER32 collet chucks, and side-lock toolholders on CNC machining centers and manual mills.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer torque and runout specifications for the toolholder in use. Power down and lock out the spindle before loading or removing any cutting tool. Verify tool projection and runout with a dial indicator before beginning a cut. Do not use damaged or dull tooling, as chipping in cobalt end mills can result in sudden tool failure.
