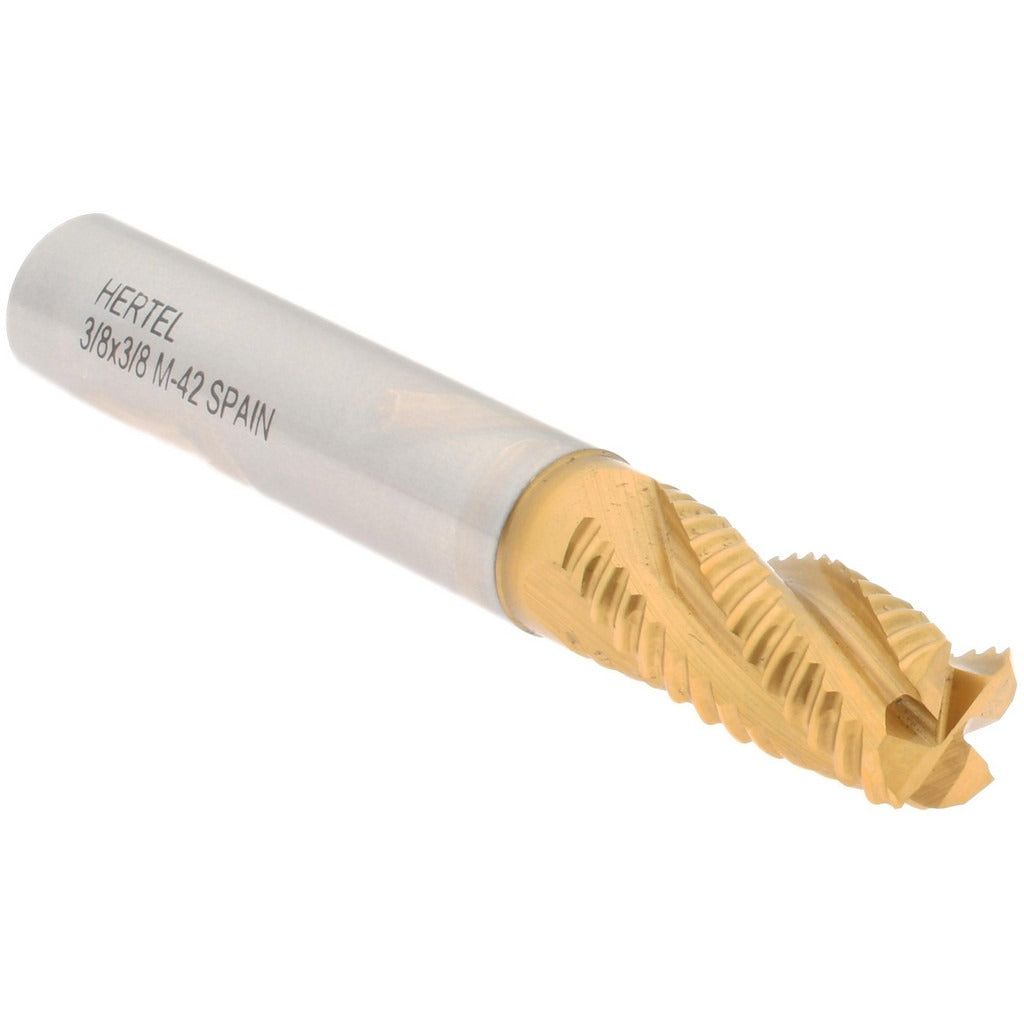

Hertel 91192856 Roughing End Mill 3/8 in 4 Flute Cobalt

Product Description

The HERTEL 91192856 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a Titanium Nitride (TiN) coating, it handles tough ferrous metals, stainless steels, and high-temperature alloys where standard HSS tooling falls short. The coarse-pitch flute geometry breaks chips efficiently and reduces heat buildup during heavy cuts. With a 3/8 inch diameter, 3/4 inch length of cut, and 2.5 inch overall length, it fits standard 3/8 inch collets and end mill holders. Centercutting capability allows plunge entry without a pre-drilled pilot hole.

This roughing end mill is suited for manual mills, CNC machining centers, and knee mills in job shop, maintenance, and production environments. The right-hand cut and right-hand flute configuration covers the majority of conventional milling setups. It is well matched for slotting, profiling, and pocketing operations where chip evacuation and tool life under load are the primary concerns. Machinists, tool-and-die makers, and maintenance technicians working with steel and alloy workpieces are the primary users.

Key Features

• M42 cobalt steel construction for heat resistance and extended tool life in hard materials
• Titanium Nitride (TiN) coating reduces friction and improves wear resistance
• Coarse-pitch roughing geometry breaks chips and lowers cutting forces on heavy passes
• Centercutting design allows direct plunge entry into workpiece material
• 3/8 inch shank diameter matches 3/8 inch collets and standard end mill holders
• Right-hand cut and right-hand flute direction for conventional milling compatibility

Compatibility

Designed as a direct-fit replacement for 3/8 inch single-end roughing end mills in standard end mill holders, collet chucks, and milling machine spindles accepting a 3/8 inch shank.

Installation Notes

Installation is performed by machinists or toolroom technicians. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully into the holder or collet to the recommended engagement depth before tightening. Inspect the holder bore and collet for chips or wear before seating the tool, as contamination or a worn bore will affect runout and tool life.
