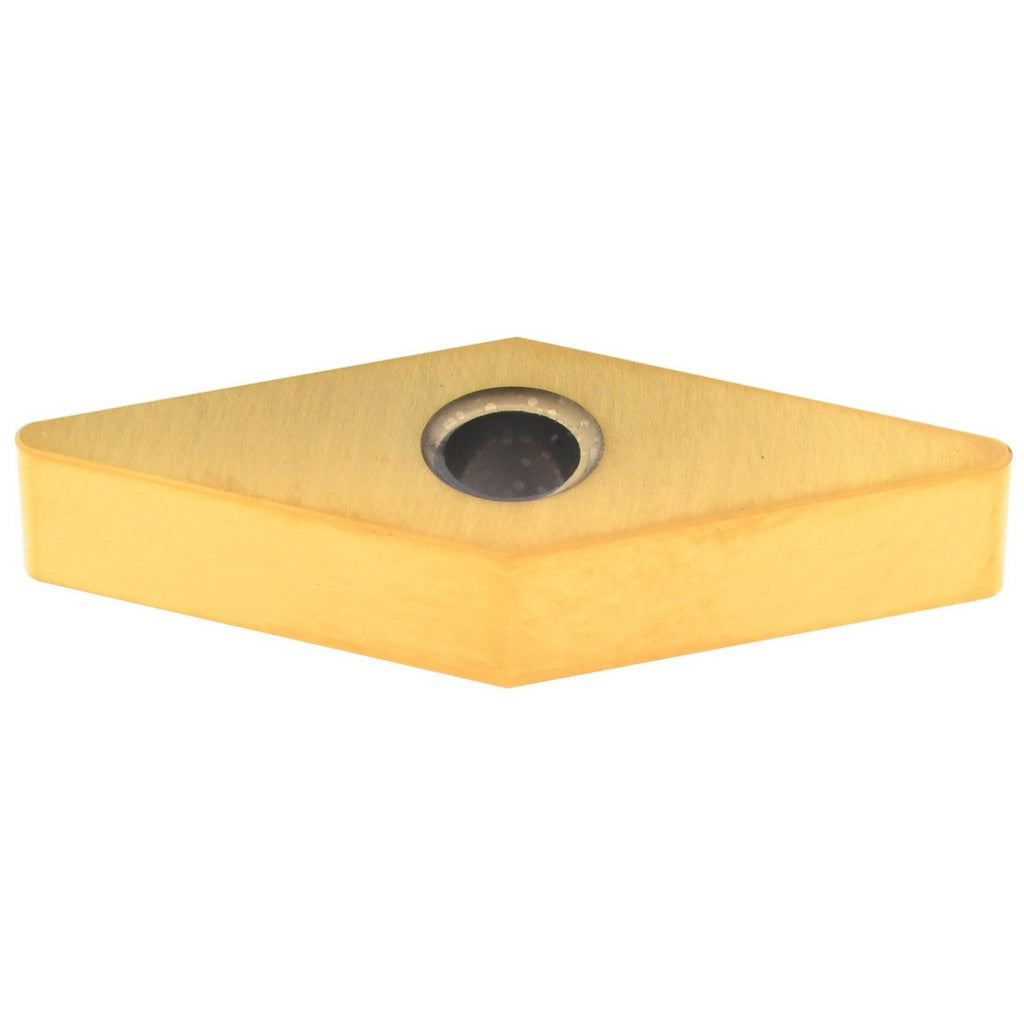

Hertel 8852048 Turning Insert VNGA332T00625 HP610CA Ceramic

Product Description

The HERTEL 8852048 is a VNGA-style ceramic turning insert with a titanium nitride (TiN) coating applied via PVD process. Grade HP610CA, it features a 35-degree diamond shape, neutral hand, and negative rake geometry. The insert measures 0.63 inches in length with a 3/8-inch inscribed circle and a 1/32-inch corner radius. Insert thickness is 3/16 inches. These inserts are used in CNC and manual turning operations on lathes where ceramic cutting materials offer performance advantages over carbide at higher cutting speeds. A clamp and pin holding method secures the insert in the toolholder.

This insert is suited for turning operations on hardened steels, cast irons, and superalloys where elevated cutting temperatures and speeds are encountered. The HP610CA ceramic grade falls within material grades C5, C6, and C7, making it appropriate for finishing and semi-finishing passes in industrial machining environments. The TiN PVD coating adds surface hardness and wear resistance. Machinists and CNC operators in production shops and job shops are the primary users. The A-style chip breaker geometry assists in chip control during interrupted and continuous cuts.

Key Features

• Ceramic insert material with TiN coating via PVD process for enhanced wear resistance
• HP610CA grade rated for C5, C6, and C7 material applications
• 35-degree diamond shape (V code) with neutral hand for flexible toolholder compatibility
• Negative rake and 0-degree relief angle (clearance code N, tolerance code G)
• 1/32-inch corner radius for general finishing geometry
• A-style chip breaker for improved chip control
• Clamp and pin holding method for secure seating in VNGA-compatible toolholders

Compatibility

Designed for use in VNGA-style toolholders accepting 332-size inserts with clamp and pin holding. Verify toolholder insert pocket specifications against VNGA332 geometry before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician with the machine powered down and locked out per facility lockout/tagout procedures. Ensure the toolholder pocket is clean and free of chips or debris before seating the insert. Do not exceed the insert manufacturer's recommended cutting parameters for the workpiece material and grade. Inspect insert edges for chipping before each use and index or replace as needed.
