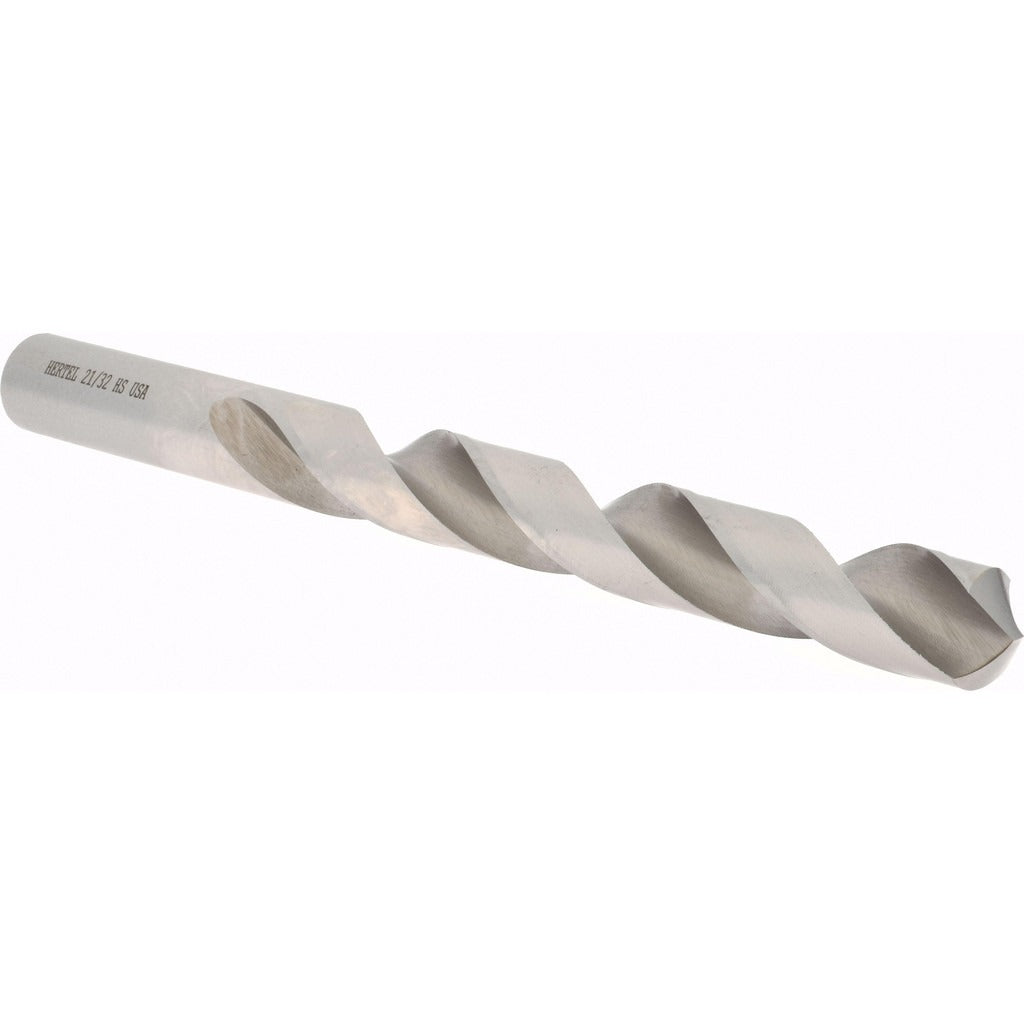

Hertel 85703734 Jobber Drill Bit 21/32 Inch Hss

Product Description

The HERTEL 85703734 is a jobber-length drill bit designed for general-purpose drilling in metal, wood, and plastic. It measures 21/32 inches (0.6562 inches decimal) in diameter with an overall length of 7-1/8 inches and a flute length of 5-3/16 inches. The bit is manufactured from high speed steel with a bright, uncoated finish and features a standard 118-degree split point with web thinning for reduced thrust and easier starting. The straight-cylindrical shank seats securely in standard drill chucks. This bit is suited for use by machinists, pipefitters, electricians, and general trade professionals requiring a reliable general-purpose cutting tool.

This jobber-length bit is appropriate for through-hole and stepped drilling operations in light manufacturing, maintenance, and field service applications. The regular spiral flute geometry promotes chip evacuation during drilling. The 21/32-inch diameter is commonly used when opening knock-outs, sizing conduit holes, or drilling clearance holes for fasteners. Right-hand cutting direction is standard for use in conventional drill presses, hand drills, and magnetic drills. Sold individually as a single-piece unit.

Key Features

• 21/32 inch diameter (0.6562 inches decimal) for precise hole sizing
• 118-degree standard point angle with web thinning for reduced walk and lower thrust requirements
• High speed steel construction handles general-purpose drilling across a range of materials
• Bright uncoated finish for visual wear monitoring during service
• Straight-cylindrical shank compatible with standard 3-jaw drill chucks
• Regular spiral flute with tapered web configuration for efficient chip clearance

Compatibility

Designed as a general-purpose jobber-length drill bit for use in standard drill presses, hand drills, and magnetic base drills accepting a 21/32-inch straight-cylindrical shank.

Installation Notes

Installation and use should be performed by qualified trade professionals familiar with drilling operations and machine safety. Secure the workpiece before drilling and verify chuck engagement before operating. Wear appropriate eye protection and ensure the drill press or hand tool is powered down before changing bits. Do not exceed the recommended speed range for the material being drilled.
