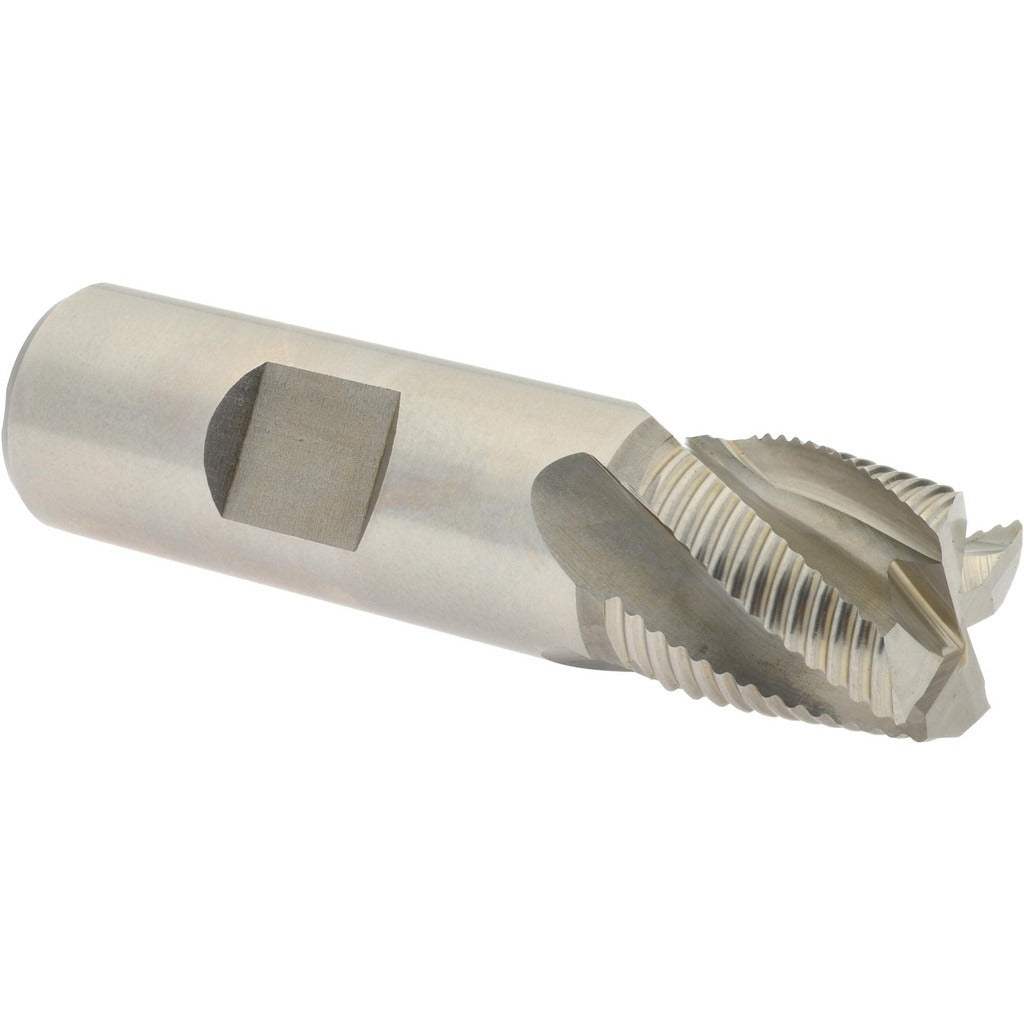

Hertel 84213529 Roughing End Mill 3/4 in 4 Flute Cobalt

Product Description

The HERTEL 84213529 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it offers the heat resistance and edge retention needed for tough ferrous and non-ferrous materials. The cutter measures 3/4 inches in diameter with a 3/4-inch length of cut and a 2-7/8-inch overall length. Four right-hand flutes with a fine pitch geometry break up chips efficiently, reducing cutting forces and minimizing chatter during heavy roughing passes. This tool is centercutting, allowing plunge entry without a pre-drilled pilot hole.

This roughing end mill is suited for manual mills and CNC machining centers in job shop, maintenance, and production environments. It is a standard choice for roughing passes on steel, stainless, and other materials where cobalt tooling is specified. The 3/4-inch shank diameter fits directly into standard end mill holders, collet chucks, and Weldon-style side-lock holders of the same bore size. Machinists and toolroom technicians working on ferrous stock will find the M42 grade appropriate for interrupted cuts and harder alloys.

Key Features

• M42 cobalt HSS construction for elevated heat resistance and longer tool life in tough materials
• Four right-hand flutes with fine pitch for efficient chip evacuation during roughing passes
• Centercutting design allows direct plunge milling without a starter hole
• Bright, uncoated finish suitable for use with or without cutting fluid
• Right-hand cutting and right-hand flute direction for standard spindle operation
• Single-end configuration with 3/4-inch shank matching cutter diameter for balanced rigidity

Compatibility

Designed as a direct-fit replacement for standard 3/4-inch single-end roughing end mills in any holder accepting a 3/4-inch shank diameter, including ER collet chucks, shell mill adapters with the appropriate bore, and Weldon side-lock holders.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the spindle before changing tooling. Seat the shank fully into the holder to the recommended engagement depth before tightening; insufficient engagement reduces rigidity and can cause pullout under load. Inspect the shank and holder bore for chips or damage before each installation.
