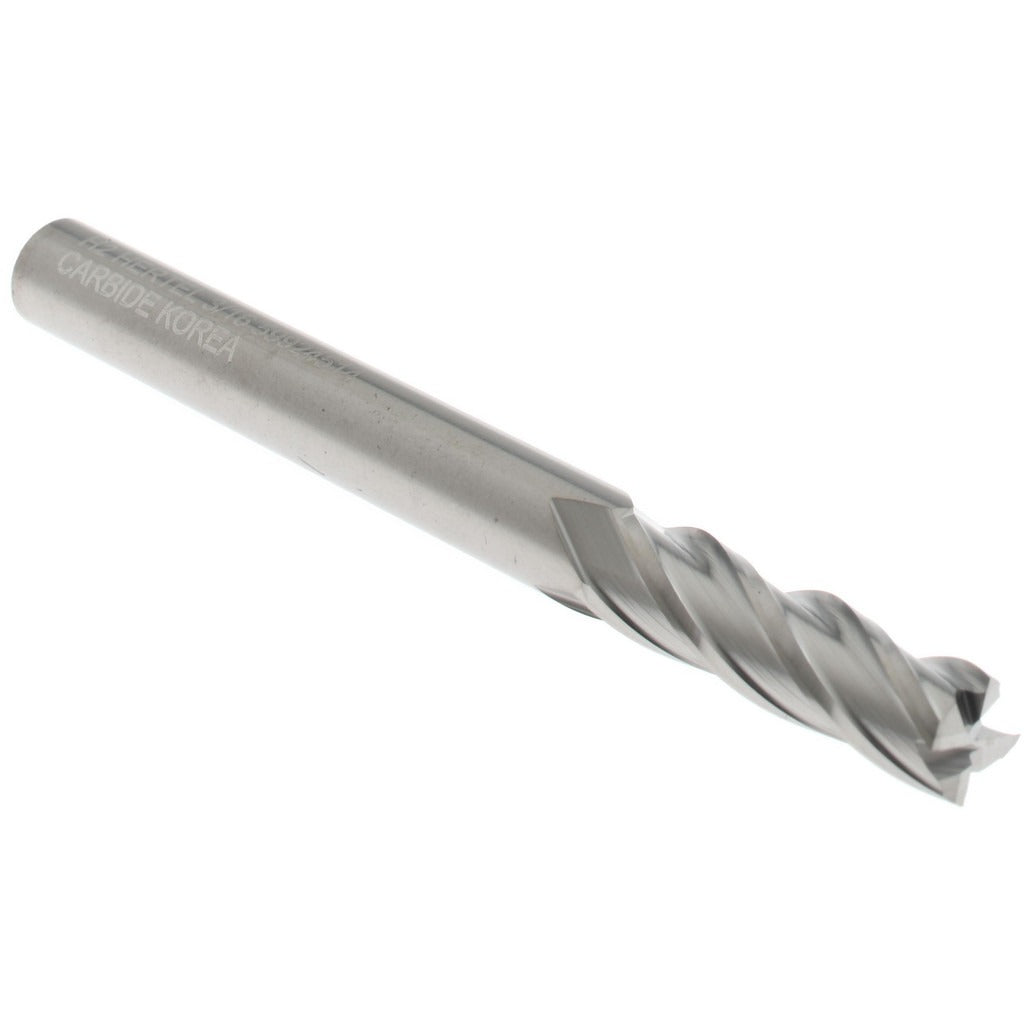

Hertel 750918 Square End Mill 3/16 in 4 Flute Carbide

Product Description

The HERTEL 750918 is a solid carbide square end mill designed for precise milling operations in metalworking and machining applications. With a 3/16 inch (0.1875 inch) cutting diameter and a 5/8 inch (0.625 inch) length of cut, this tool delivers consistent material removal in a compact form factor. The four-flute configuration with a 30-degree right-hand helix angle promotes efficient chip evacuation and smooth cutting action. The bright uncoated finish is well suited for non-ferrous metals and general-purpose milling. Micrograin carbide construction provides hardness and wear resistance across a range of workpiece materials. Licensed machinists and CNC operators install this tool in standard milling chucks or collet systems.

This end mill fits standard milling center setups where a 3/16 inch diameter tool is required for slotting, profiling, and peripheral milling. The regular-length geometry and single-end design make it practical for production runs and prototype work alike. The centercutting capability allows plunge entry directly into the workpiece. It is a common selection for job shops handling aluminum, brass, and similar non-ferrous alloys, as well as light-duty steel milling where an uncoated carbide tool is appropriate.

Key Features

• Solid micrograin carbide construction for hardness and edge retention
• Four flutes with 30-degree right-hand helix for efficient chip evacuation
• Centercutting design allows direct plunge entry into workpiece
• Bright uncoated finish suitable for non-ferrous and general-purpose milling
• Single-end configuration with regular-length geometry for versatile setups
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed as a standard 3/16 inch shank square end mill compatible with milling chucks, ER collets, and similar toolholding systems used in vertical and horizontal milling machines and CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully stopped and locked out before mounting or removing the tool. Use a properly sized collet or chuck and verify runout before beginning a cut. Follow the tool manufacturer and machine builder guidelines for speeds and feeds appropriate to the workpiece material.
