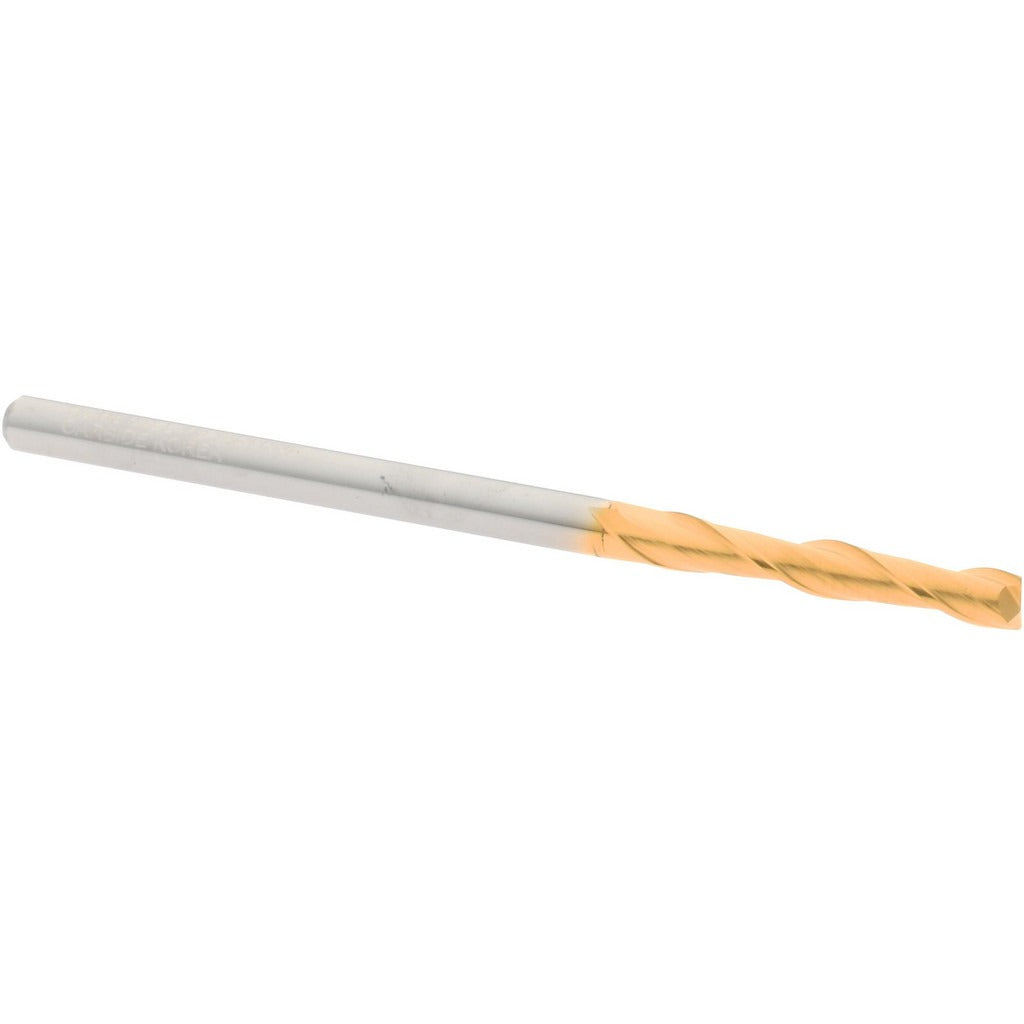

Hertel 750622 Square End Mill 2 Flute Solid Carbide

Product Description

The HERTEL 750622 is a solid carbide square end mill designed for precision milling operations in metal, composites, and other engineering materials. It features a 0.125 inch cutting diameter with a 0.75 inch length of cut and a matching 0.125 inch shank diameter, making it suitable for tight-tolerance slot milling, profiling, and contouring work. The 30-degree spiral helix promotes efficient chip evacuation, while the TiN (titanium nitride) finish extends tool life by increasing surface hardness and reducing friction. A right-hand cut, center-cutting design allows the tool to plunge directly into a workpiece in addition to standard peripheral cutting.

This end mill is used in CNC machining centers, manual knee mills, and precision tool rooms where small-diameter work is required. The 2-flute geometry provides maximum chip clearance, making it well suited for slotting and cutting softer alloys, aluminum, and plastics where chip load and flute fill are primary concerns. The 2.25 inch overall length gives adequate reach for most standard fixturing setups without sacrificing rigidity at this diameter.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting applications
• TiN coating increases surface hardness and reduces tool-to-workpiece friction
• 30-degree helix spiral flute promotes efficient chip evacuation
• Center-cutting design allows direct plunge entry into material
• Right-hand cut geometry compatible with standard CNC and manual milling spindles
• 2-flute configuration maximizes chip clearance for slotting and softer materials

Compatibility

Designed as a standard round-shank end mill for use in ER collet chucks, end mill holders, and other 0.125 inch shank toolholding systems on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the control is in an e-stop or tool-change state before inserting or removing the tool. Secure the shank to the full recommended grip depth in the toolholder and torque the collet nut or set screw according to the toolholder manufacturer specifications. Inspect the cutting edges and coating for chipping before each use, as solid carbide is brittle and sensitive to side loading at small diameters.
